DTC LIst - Multiplex Integrated Control

Multiplex Integrated Control System

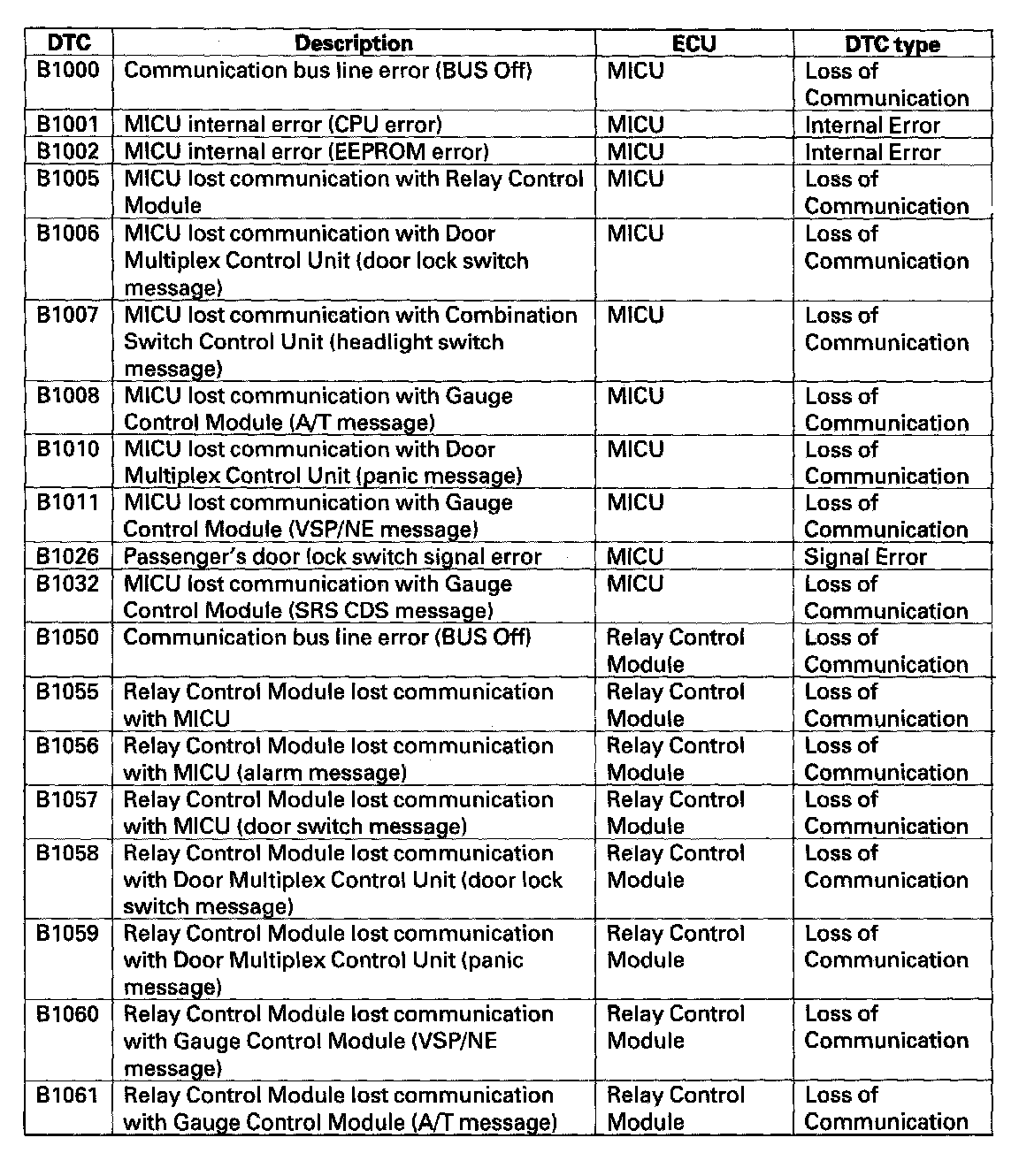

B1000 - B1061:

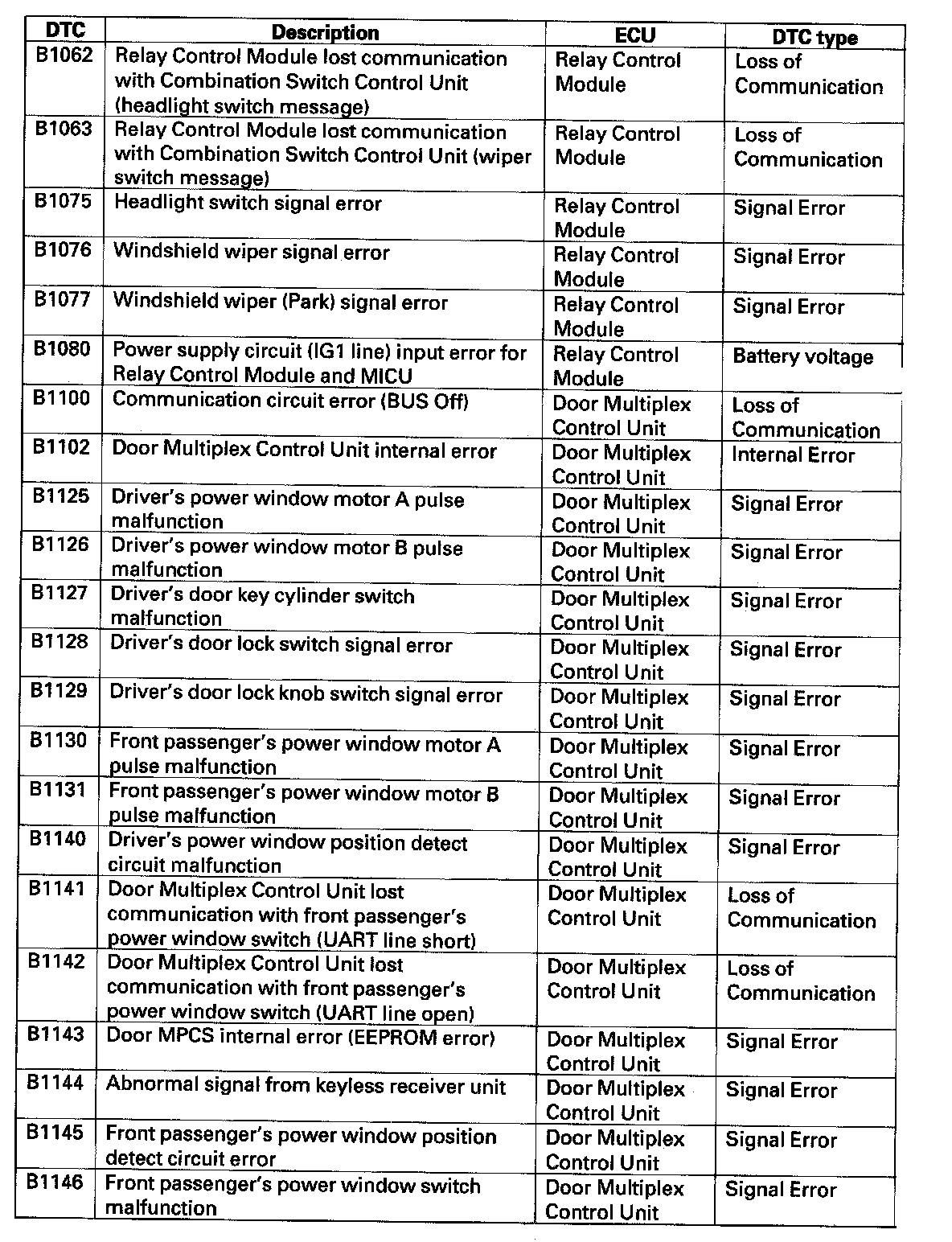

B1062 - B1146:

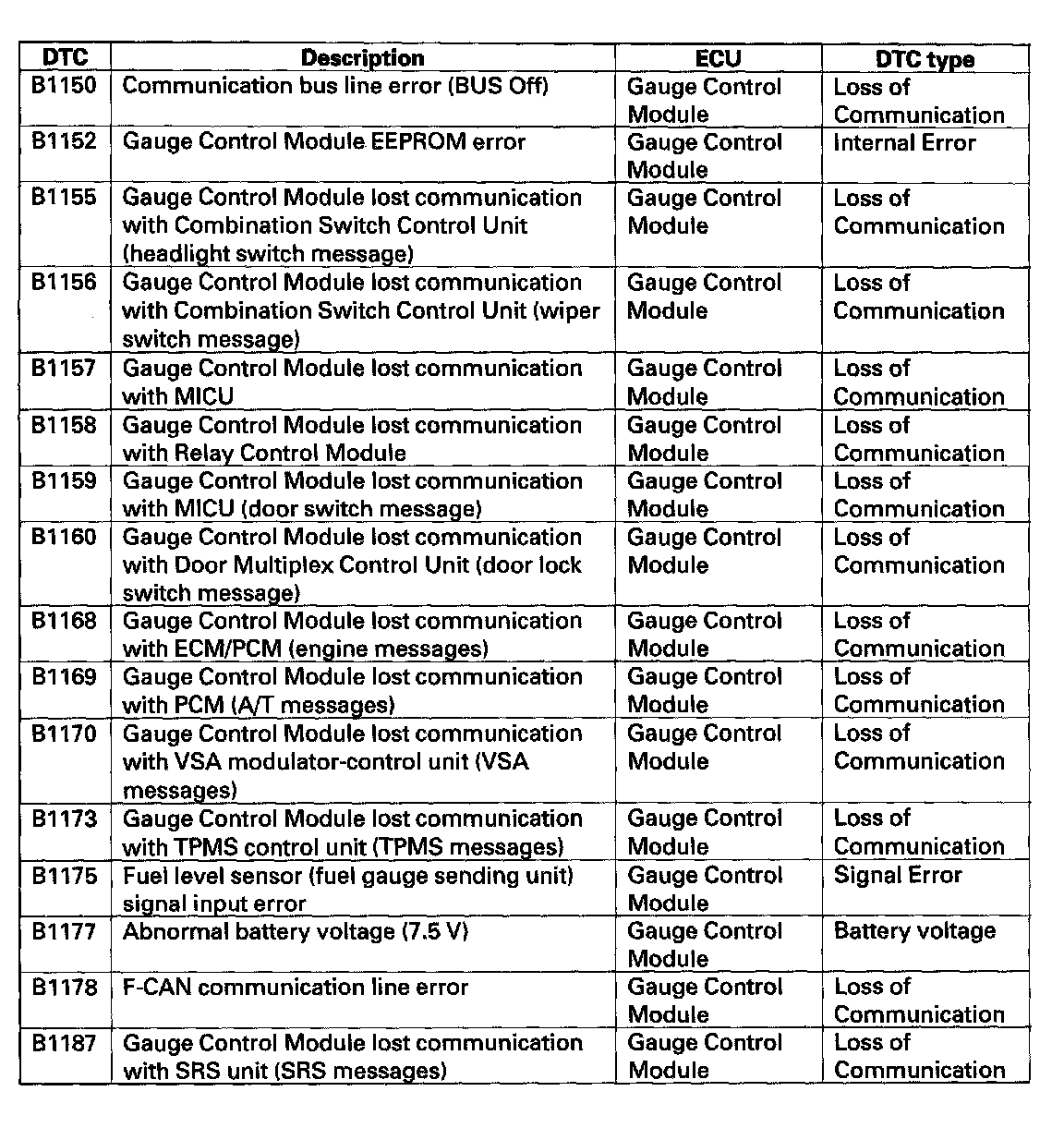

B1150 - B1187:

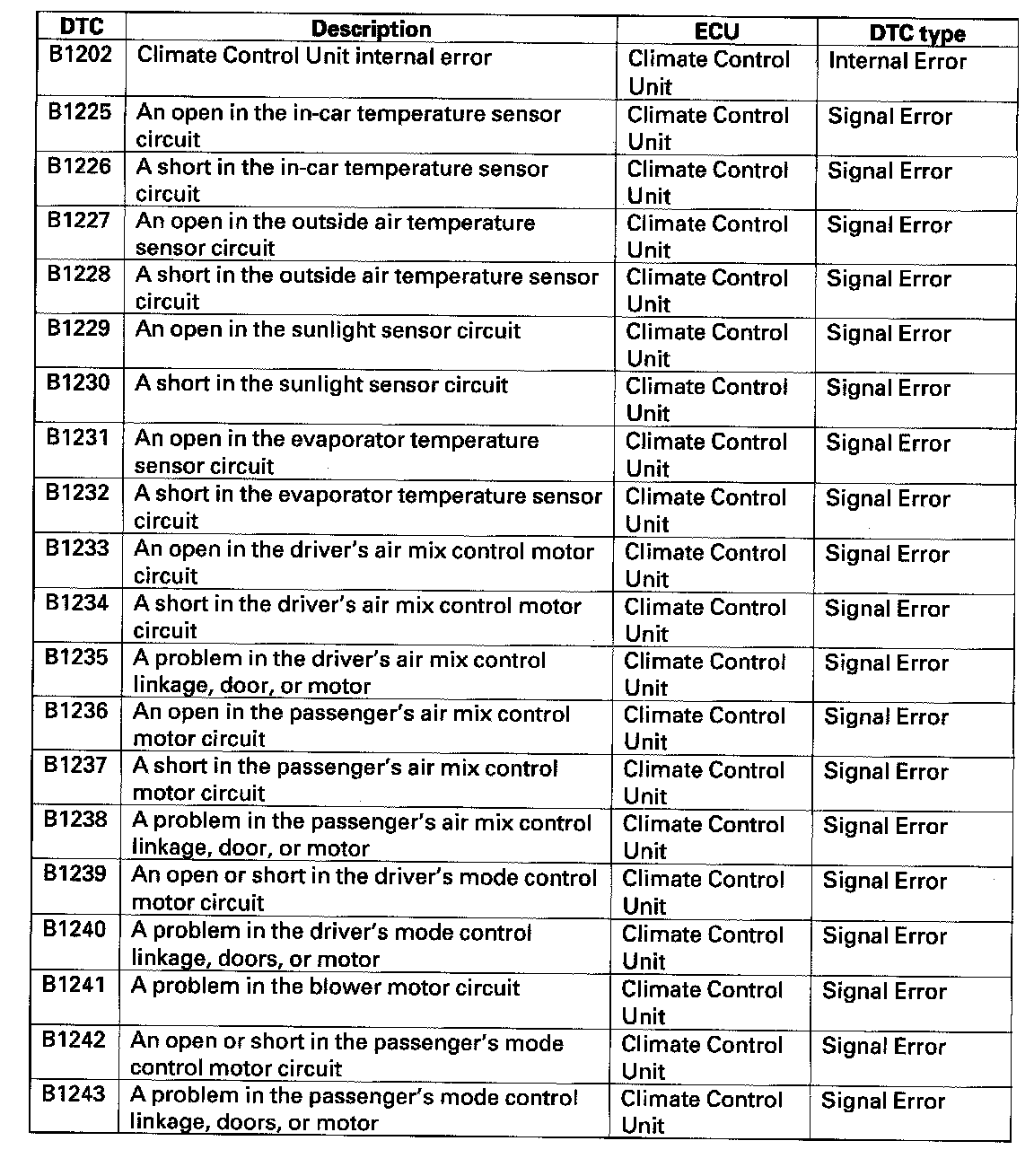

B1202 - B1243:

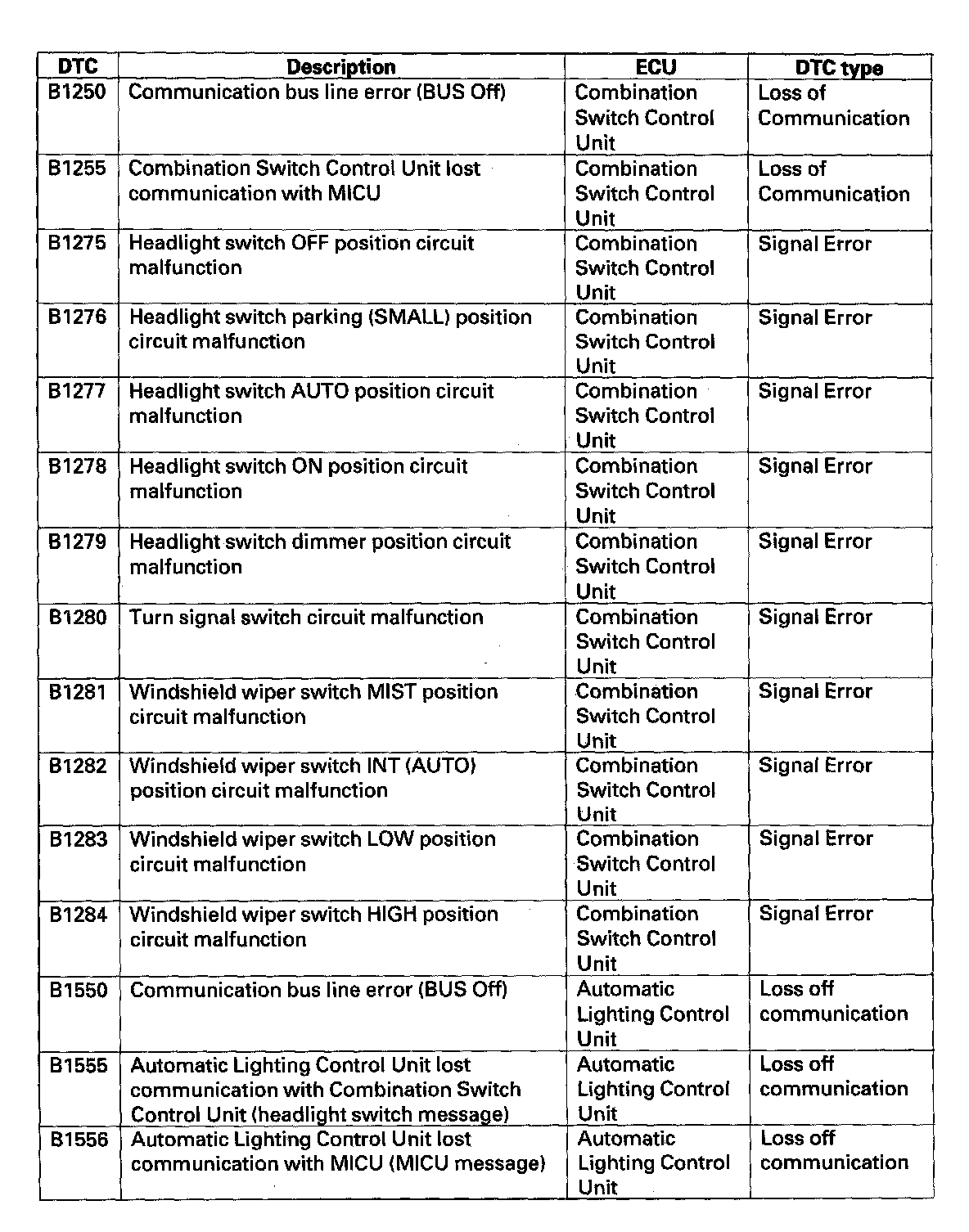

B1250 - B1556:

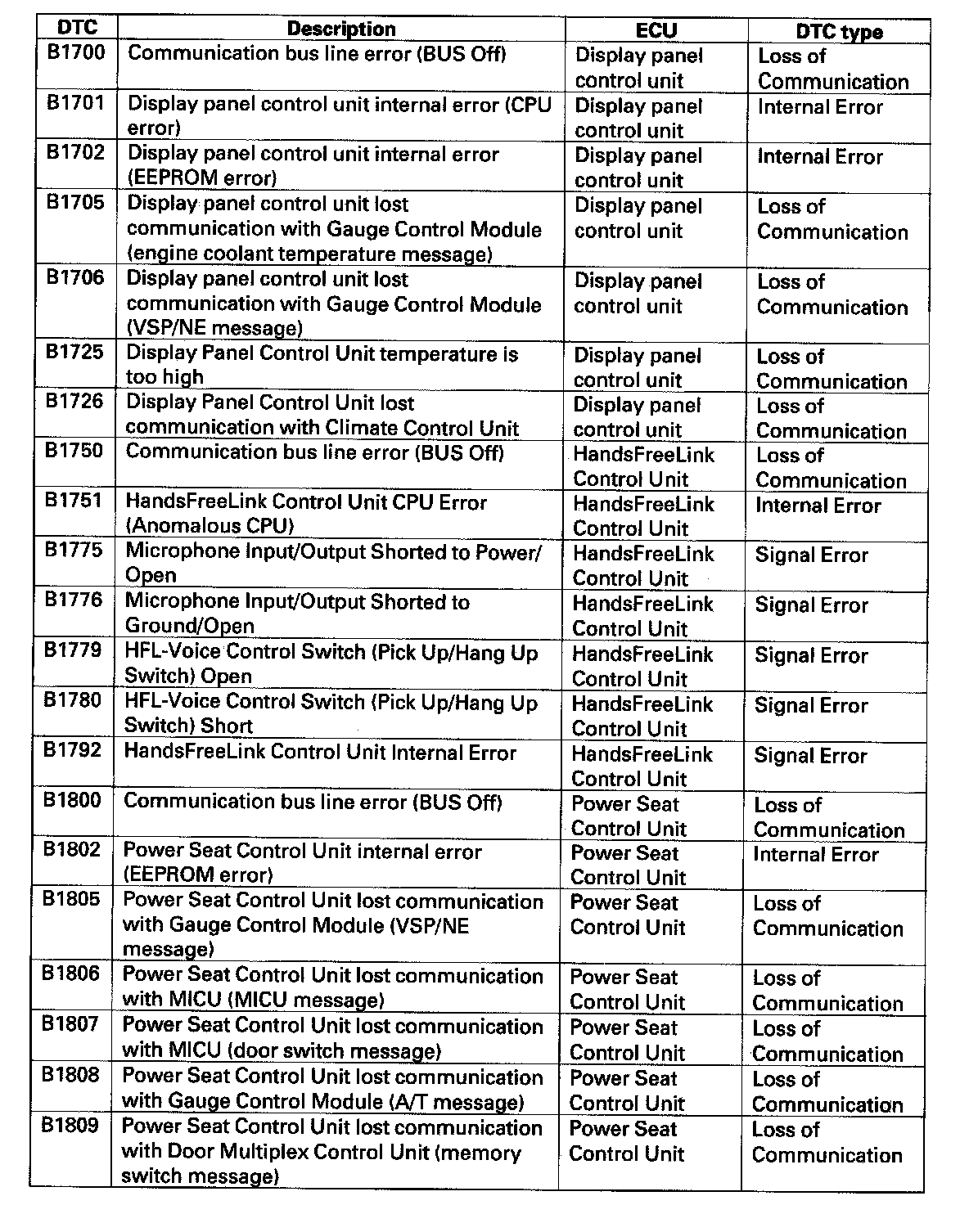

B1700 - B1809:

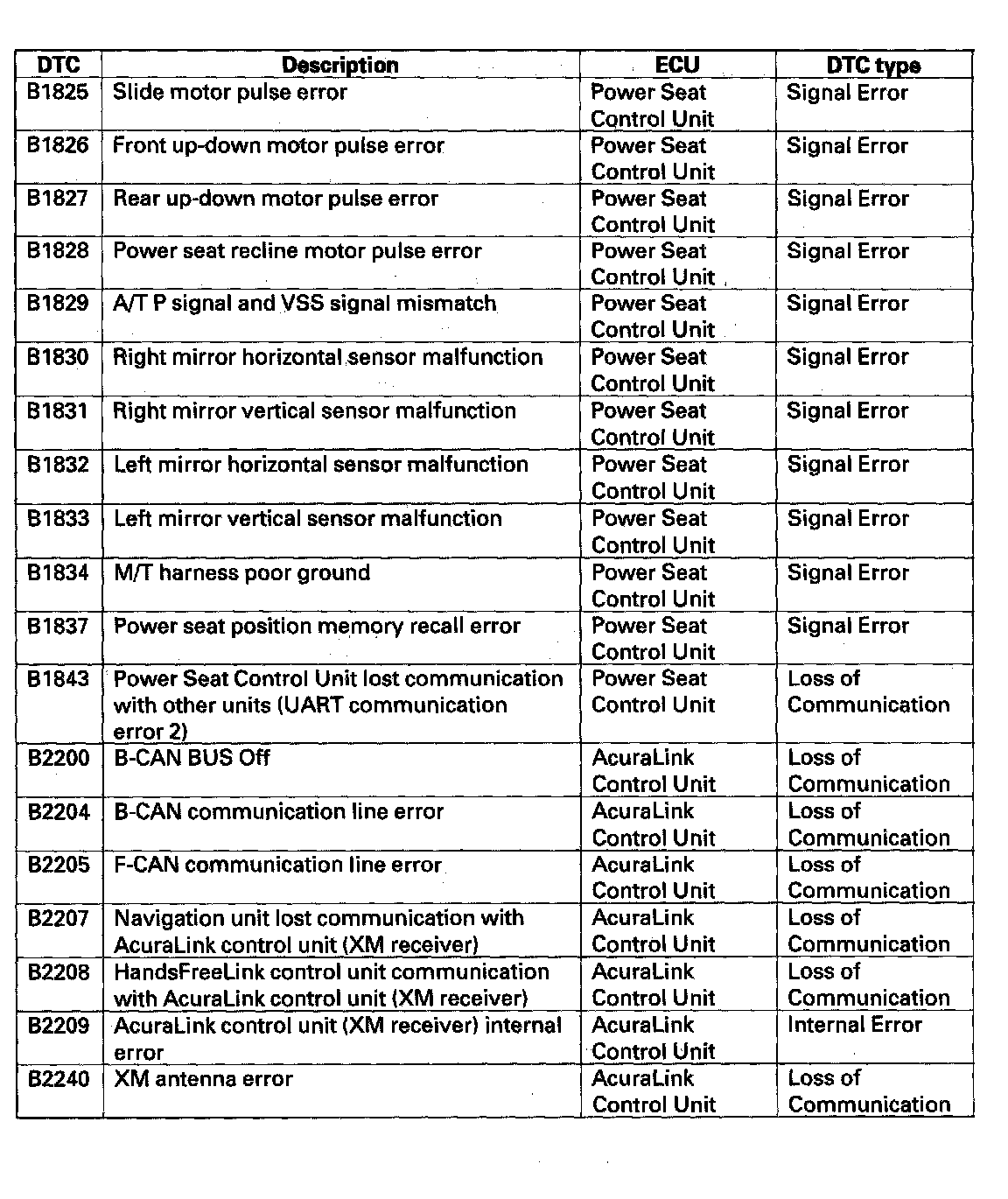

B1825 - B2240:




DTC Troubleshooting Index

NOTE: Record all DTCs, and sort them by DTC type using the DTC troubleshooting index, then troubleshoot the DTC(s) in this order:

- Battery voltage DTCs
- Internal error DTCs
- Loss of communication DTCs (beginning with the lowest number first; for example, if B1006 and B1059 are retrieved, troubleshoot B1006 first).
- Signal error DTCs
