Front Seat Linkage Disassembly/Reassembly - 4-Way Power

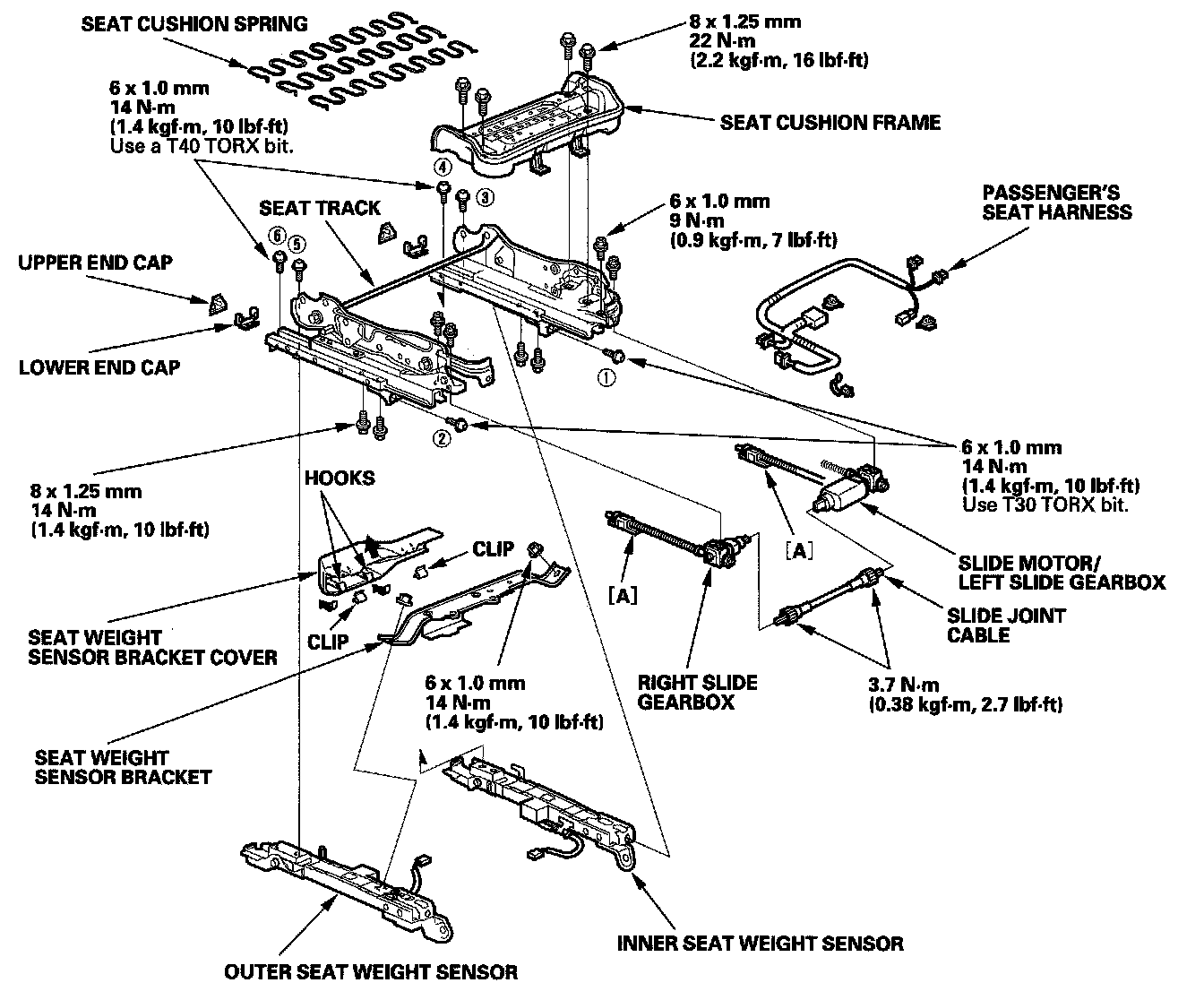

Front Seat Linkage Disassembly/Reassembly - Passenger's 4-Way Power






NOTE:
- Put on gloves to protect your hands.
- To remove the slide motor and slide gearbox, slide the front seat forward fully.
- Before installing the slide motor and slide gearbox, align portion (A) as shown to align both slide gearbox positions.
- Apply multipurpose grease to the sliding and pivot portions of the linkage.
- When tightening the weight sensor mounting TORX bolts, tighten the bolts in the sequence shown.
- Make sure the weight sensor unit connectors are plugged in properly.
- Make sure the weight sensor wires are routed properly so they are not pinched and do not interfere with other parts.
