Water Passage Replacement
Water Passage Replacement1. Make sure you have the anti-theft codes for the audio system and navigation system (if equipped). Make sure the ignition switch is OFF.
2. Disconnect the negative cable from the battery first, then disconnect the positive cable. Remove the battery.
3. Drain the engine coolant.
4. Remove the breather pipe, then remove the air intake duct.

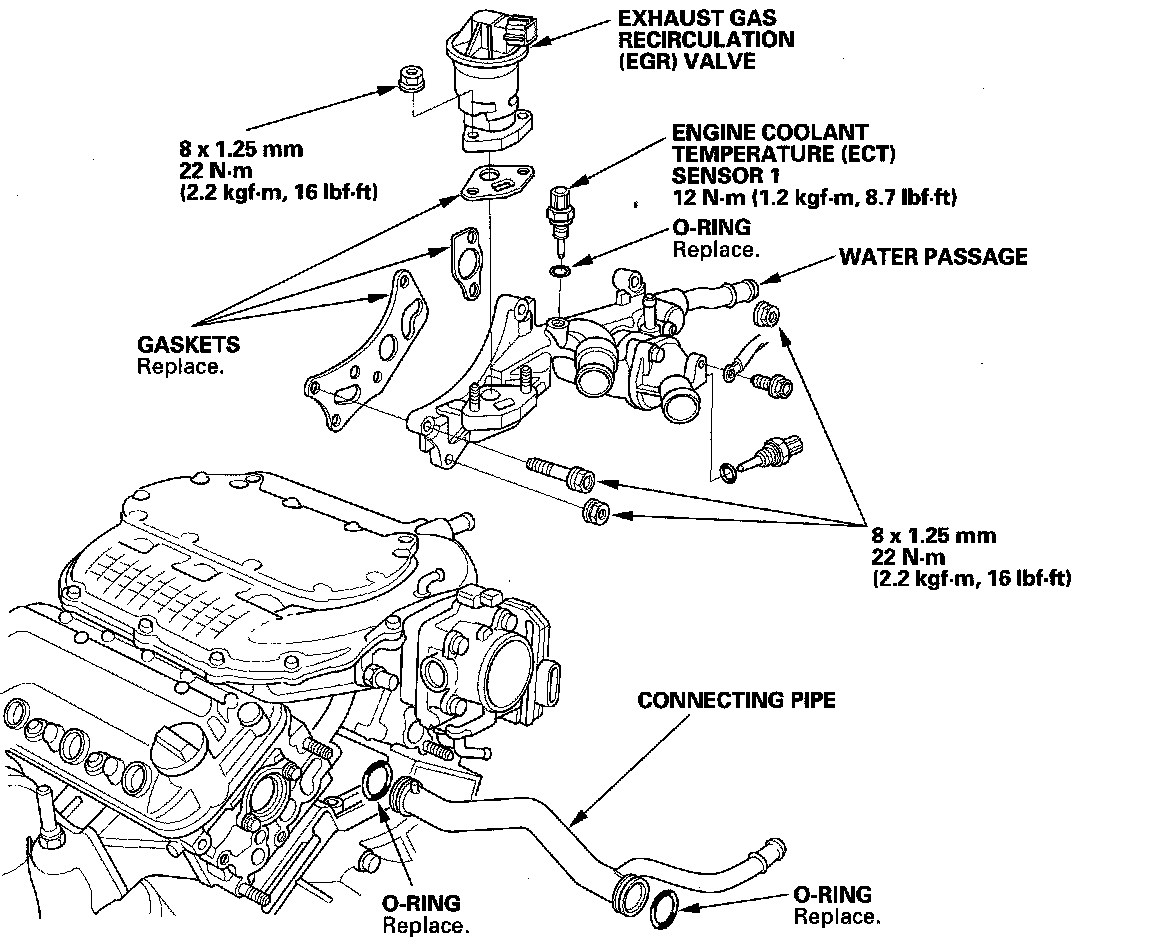

5. Remove the upper radiator hose, lower radiator hose, heater hoses, and water bypass hoses from the water passage. Remove the water passage.
6. Install the water passage in the reverse order of removal.
7. Install the battery.
8. Refill the radiator with engine coolant, then bleed air from the cooling system.
9. Clean up any spilled engine coolant.
10. Enter the anti-theft codes for the audio system and navigation system (if equipped).
11. Set the clock.
