Center Console Armrest Lock
Center Console Armrest Lock ReplacementNOTE: Take care not to scratch the armrest and related parts.
1.
Remove the armrest.
2.

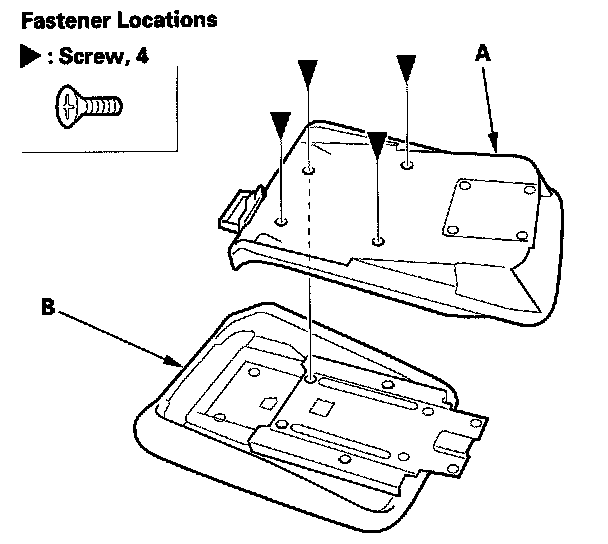

Remove the screws, then remove the inner cover (A) from the
console lid assembly (B).
3.

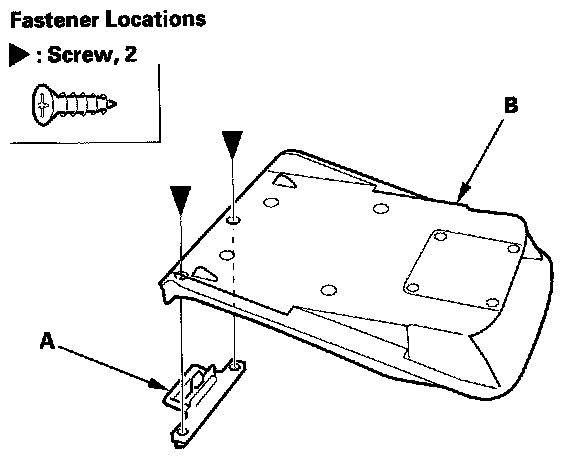

Remove the screws, then remove the armrest lock (A) from the inner cover (B).
4.
Install the lock in the reverse order of removal.
