System Diagram

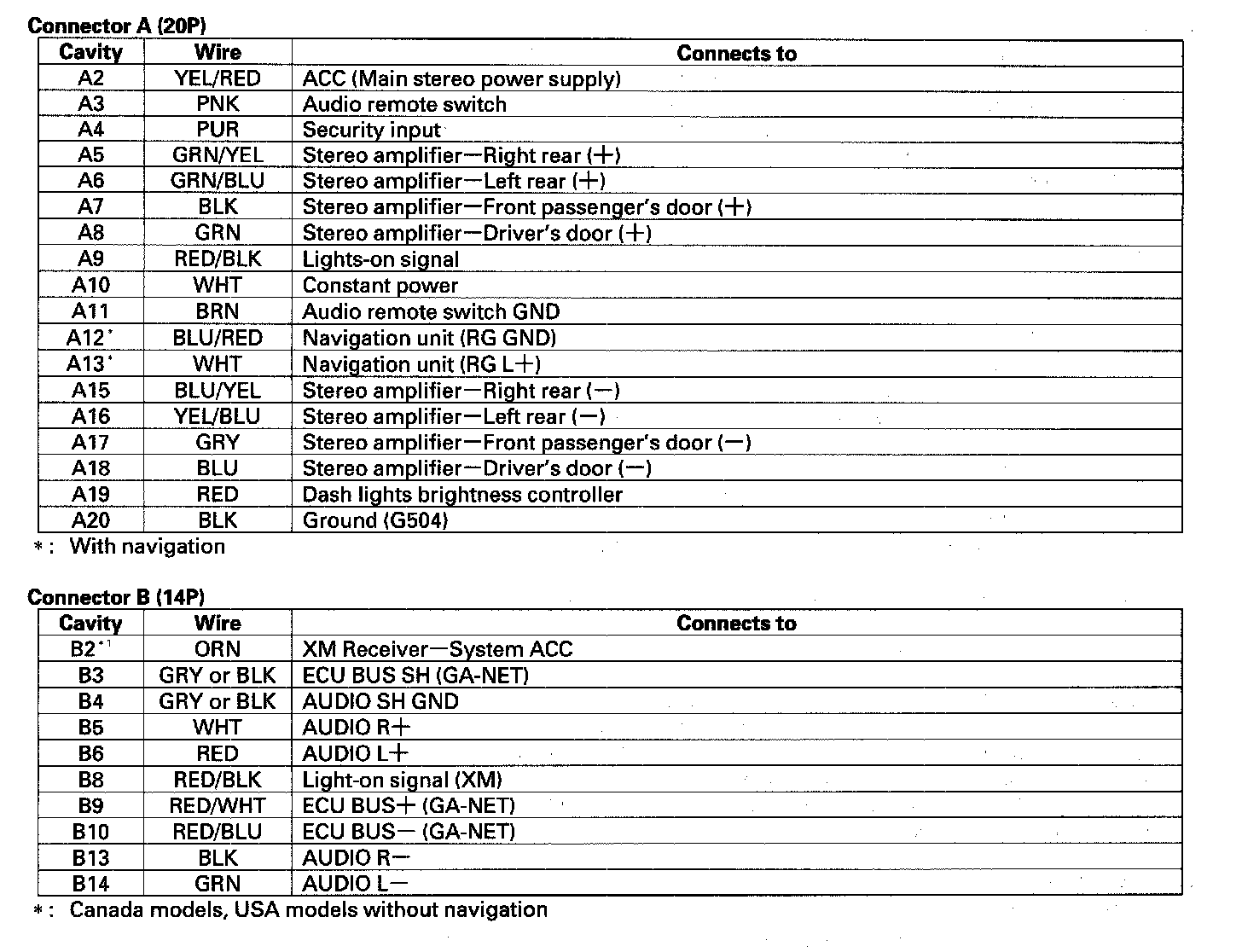

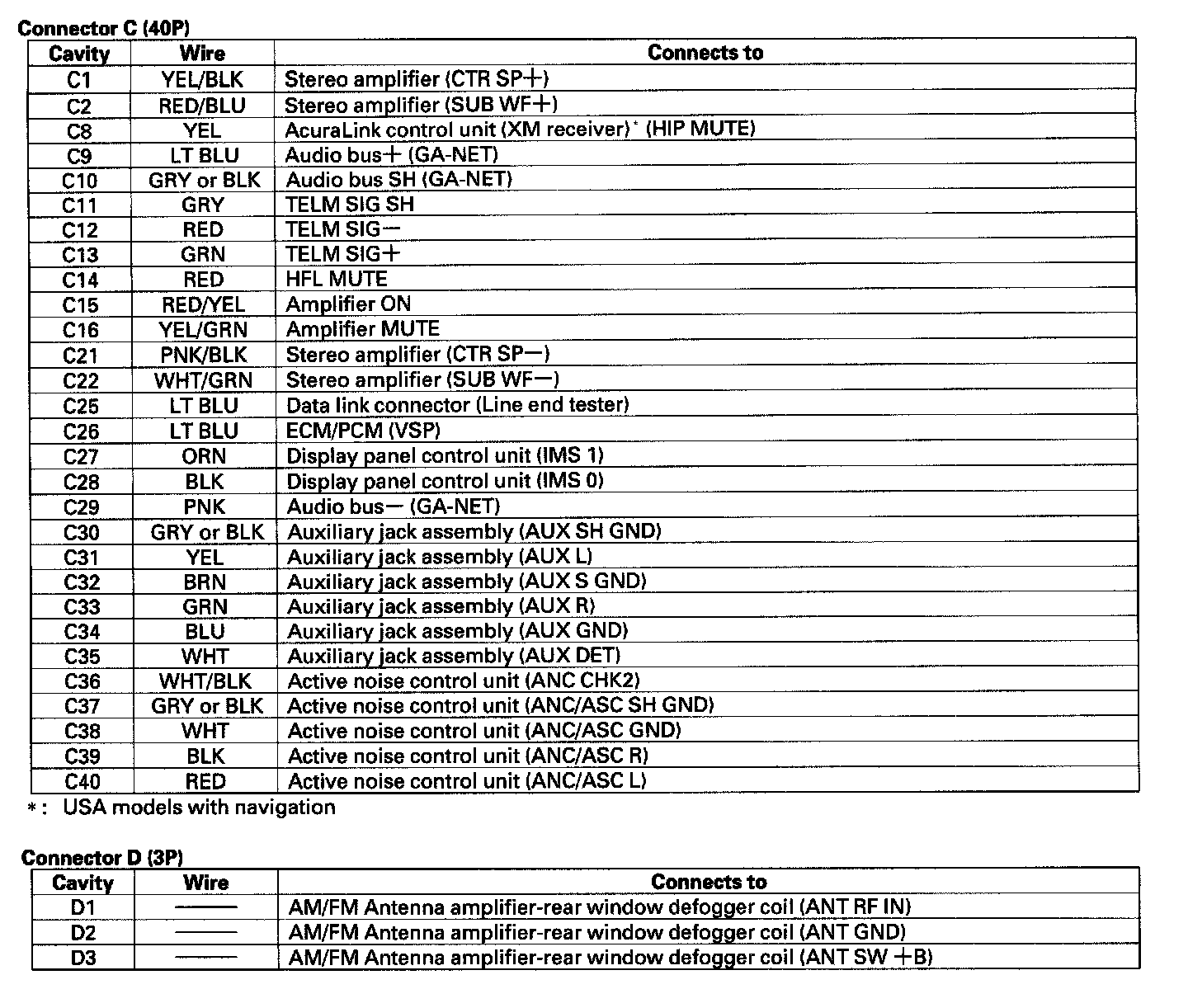

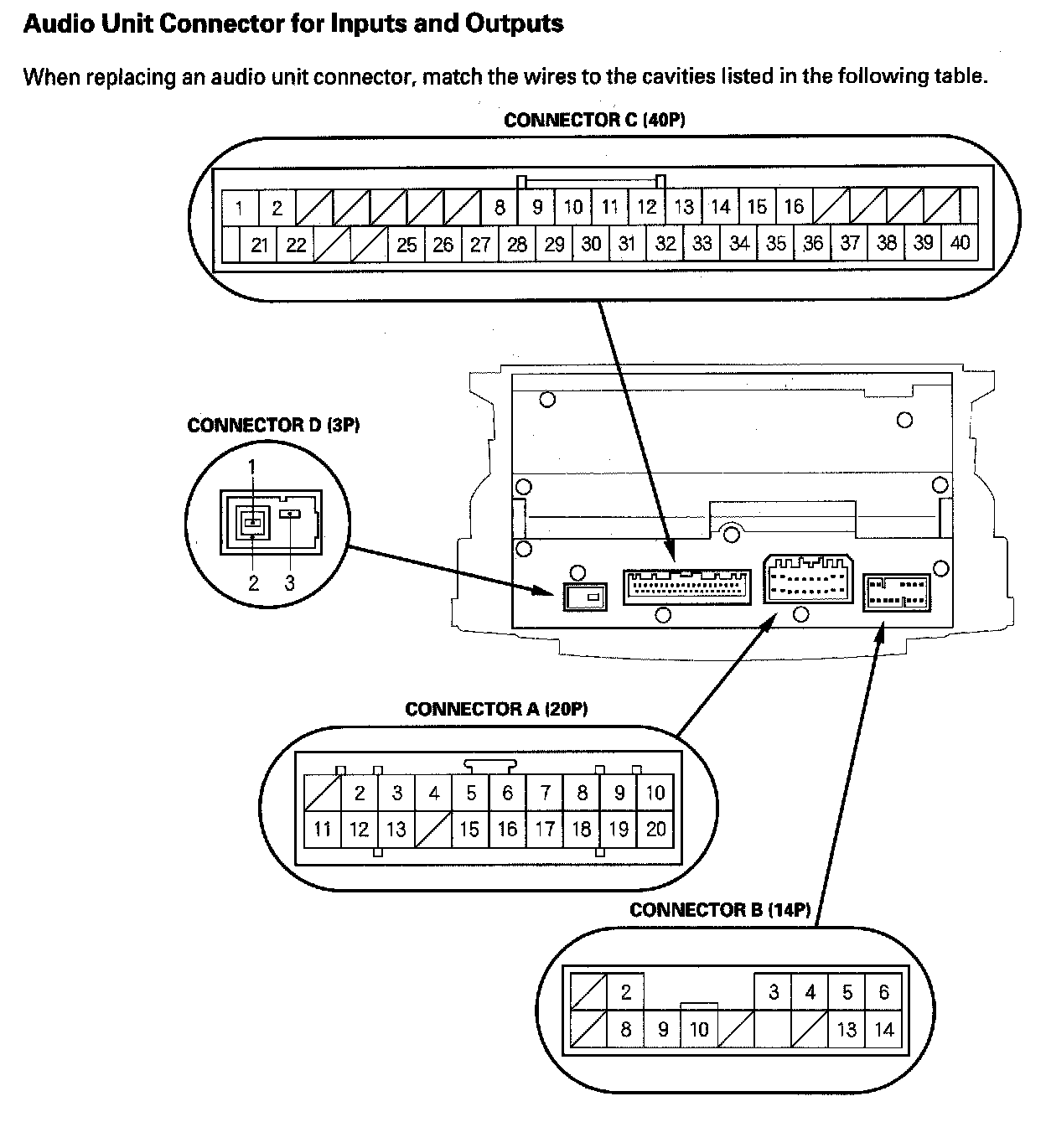

Audio Unit Connector for Inputs and Outputs Part 1:

Audio Unit Connector for Inputs and Outputs Part 2:

Audio Unit Connector for Inputs and Outputs Part 3:

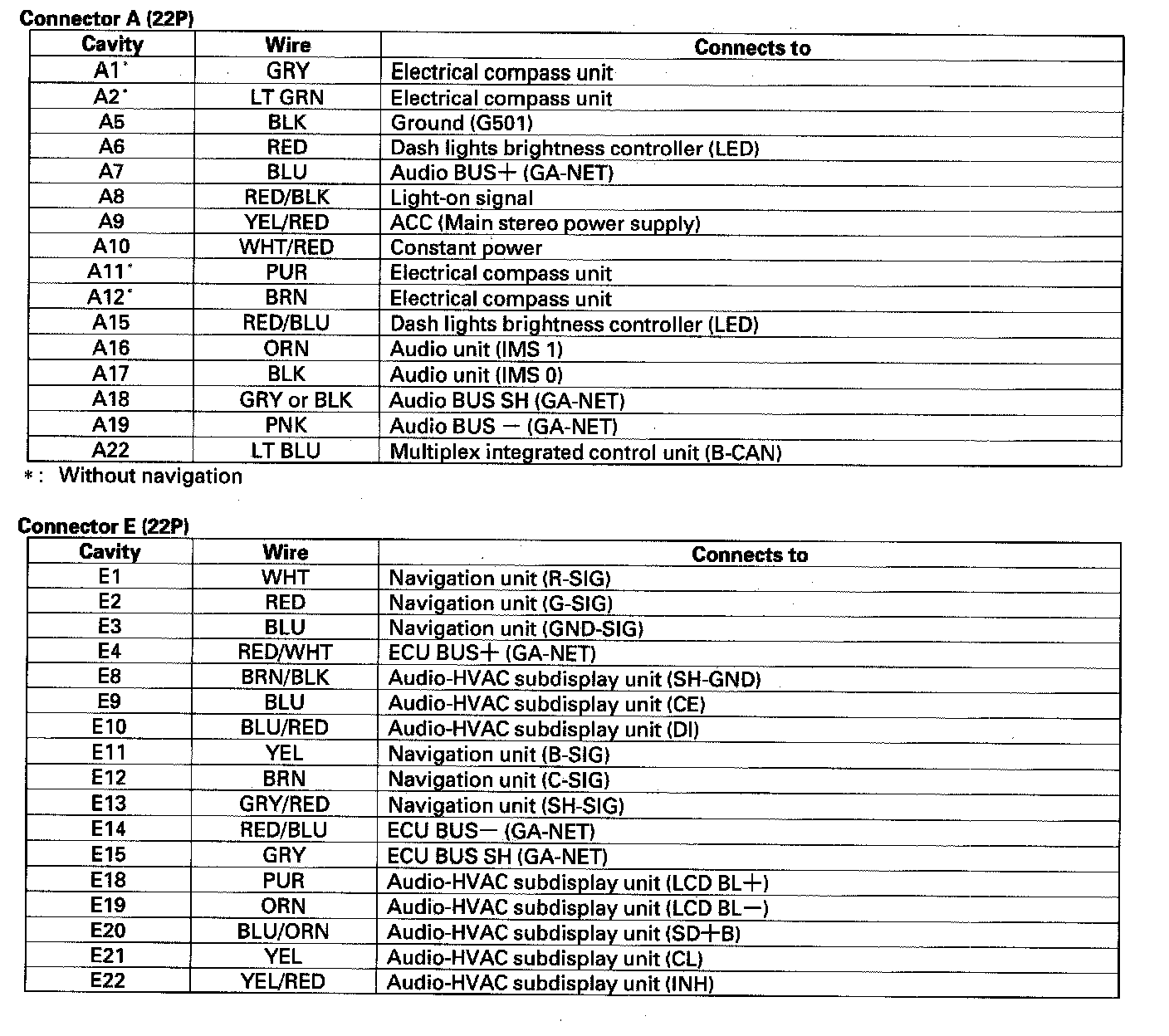

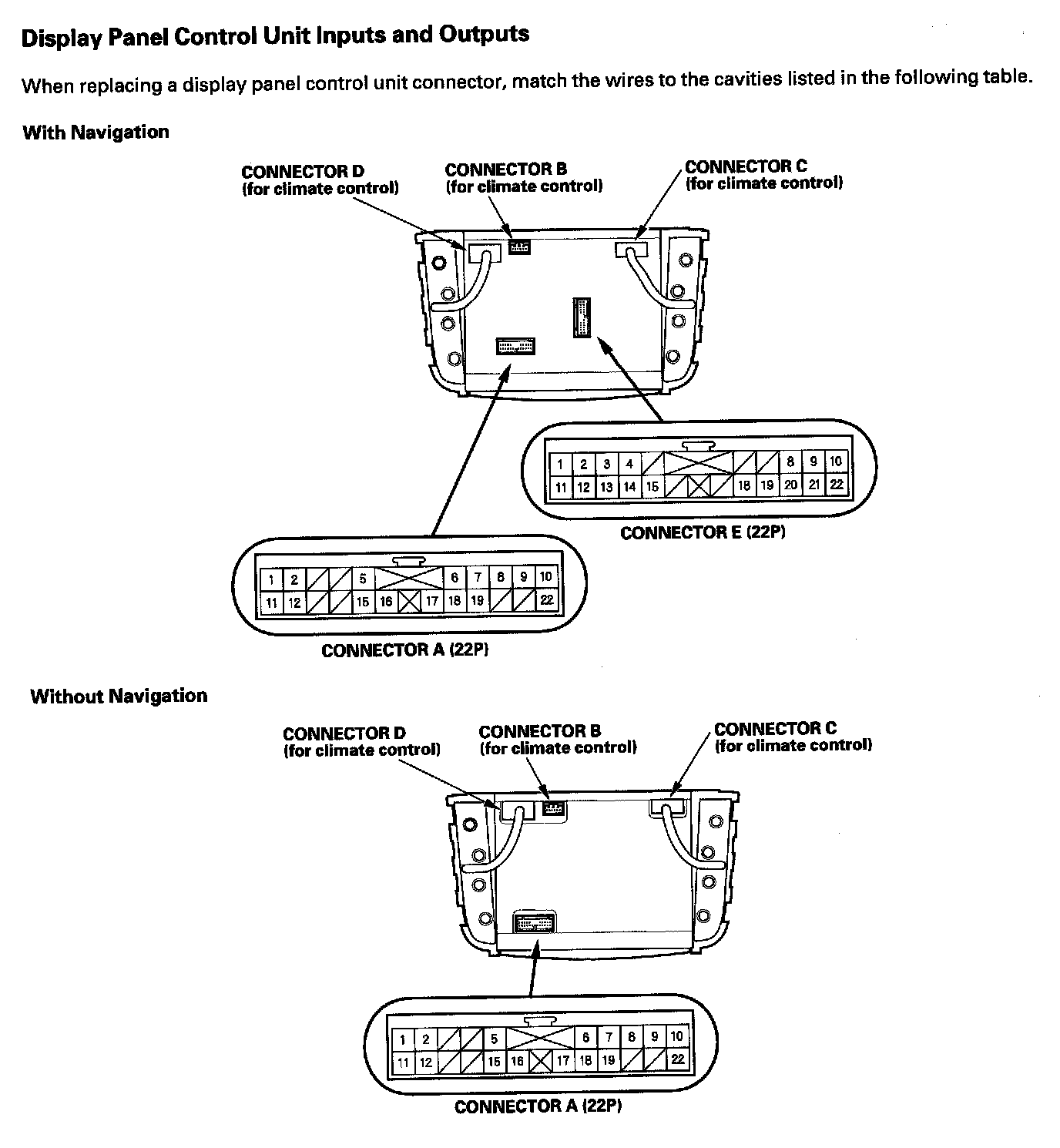

Display Panel Control Unit Inputs and Outputs Part 1:

Display Panel Control Unit Inputs and Outputs Part 2:

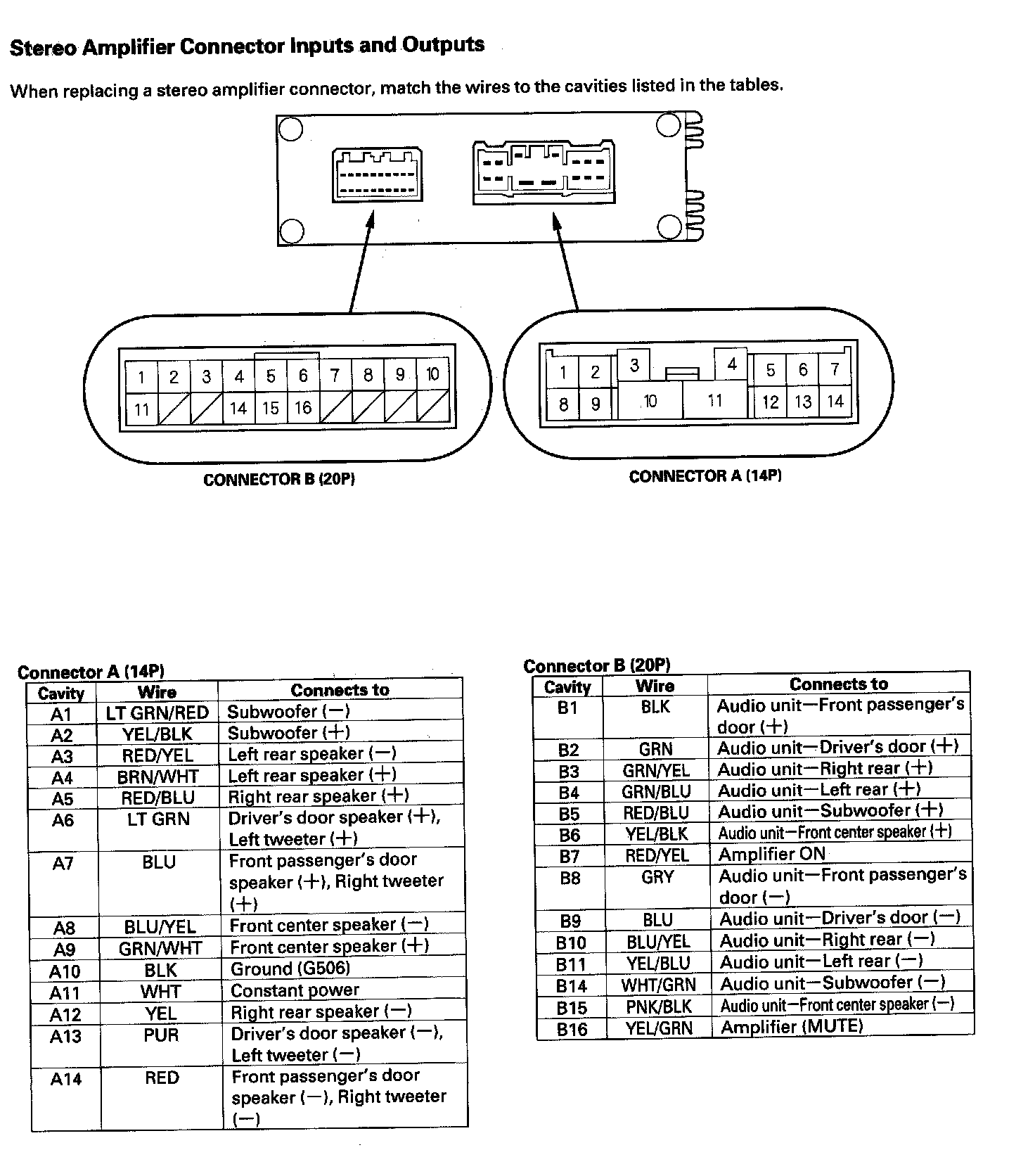

Stereo Amplifier Connector Inputs and Outputs:

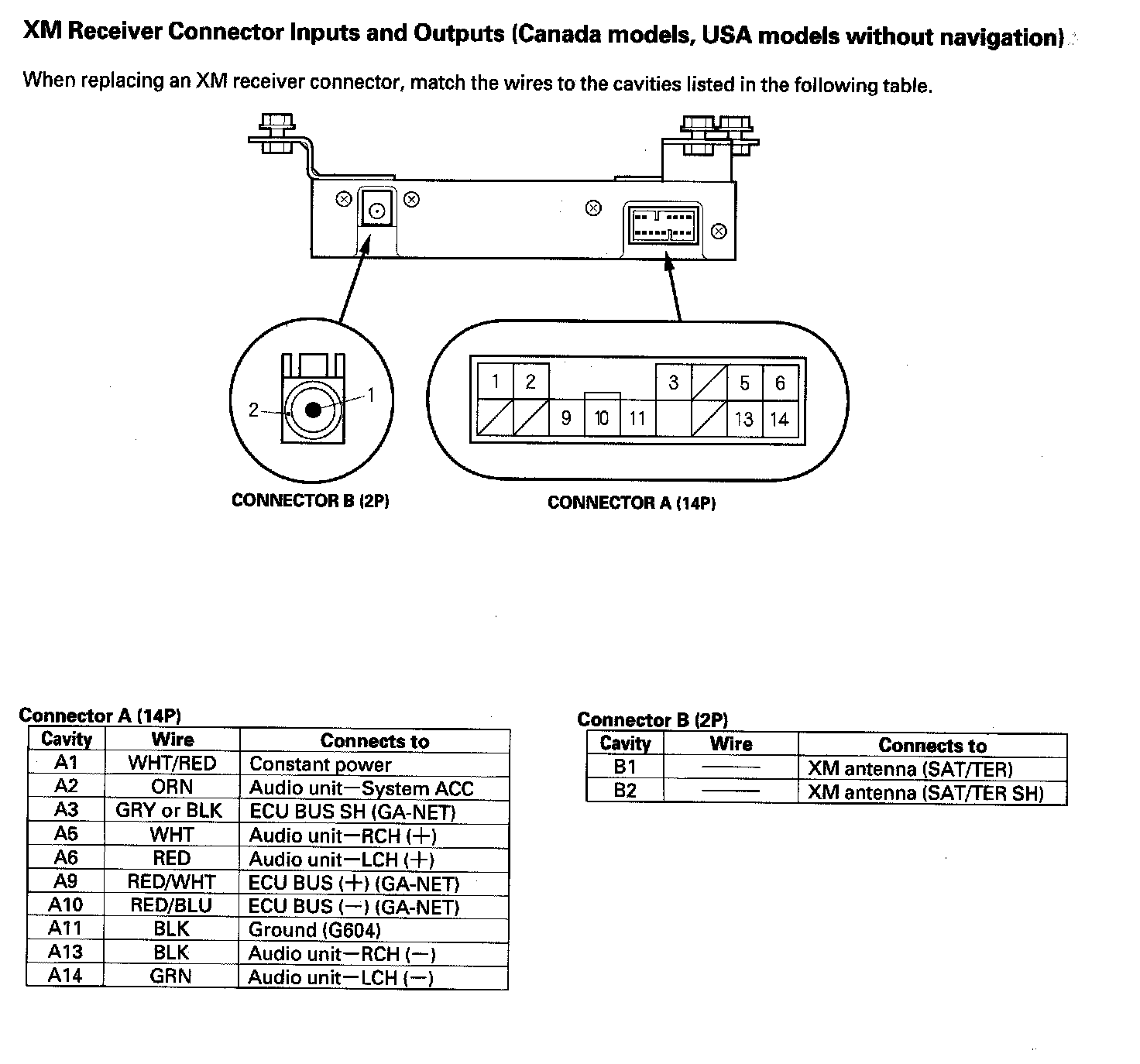

XM Receiver Connector Inputs and Outputs (Canada models, USA models without navigation):

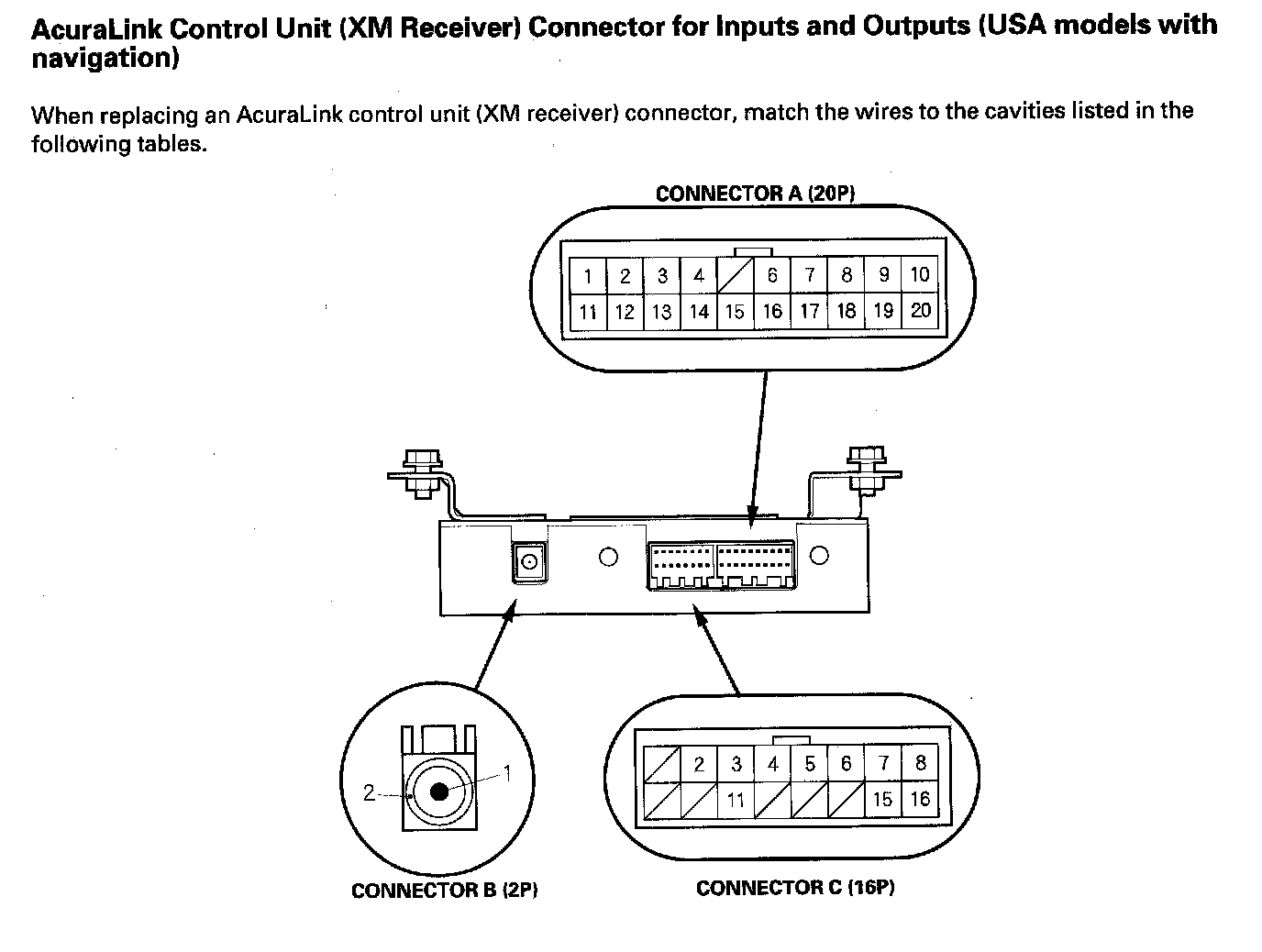

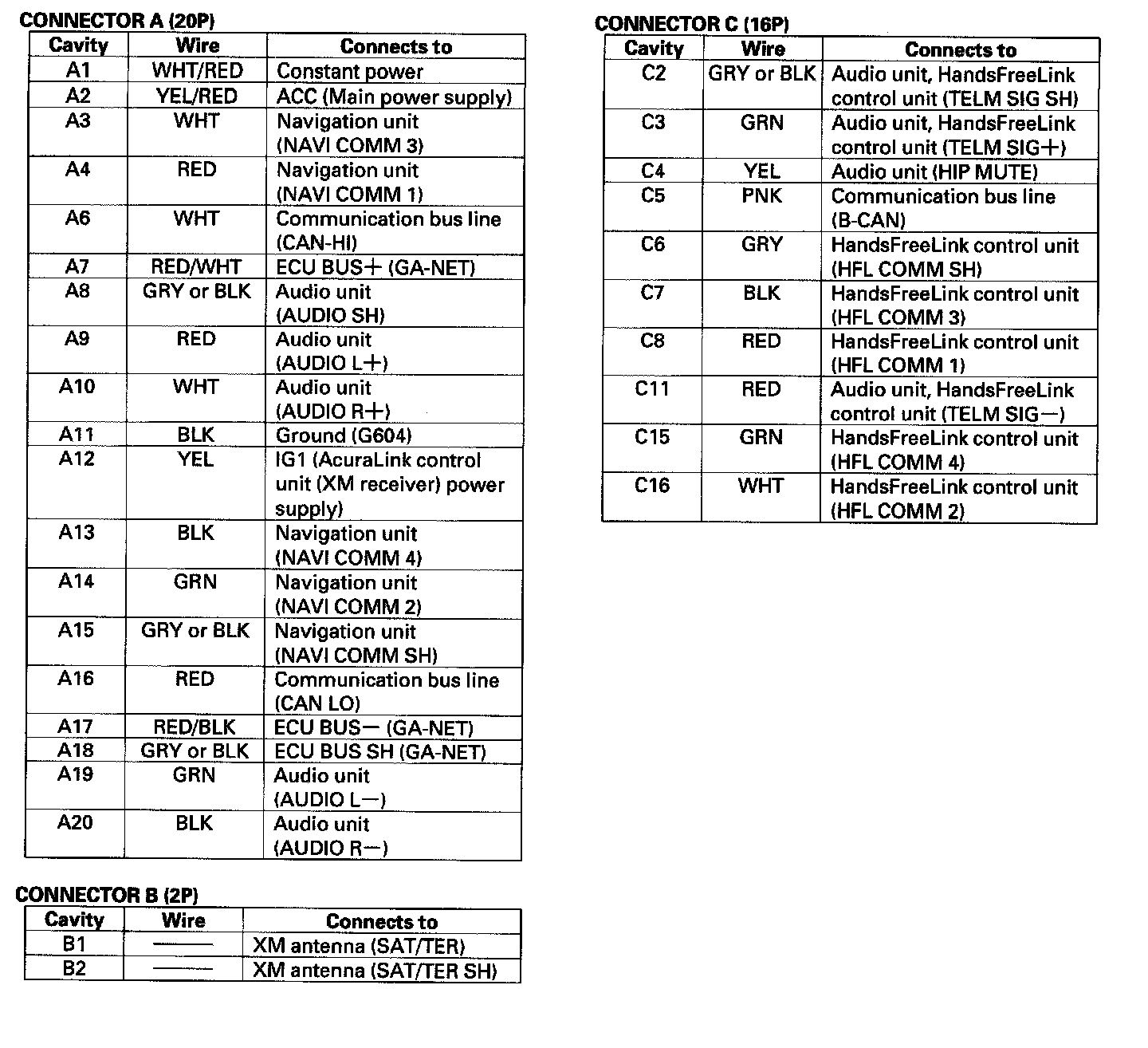

AcuraLink Control Unit (XM Receiver) Connector for Inputs and Outputs (USA models with navigation) Part 1:

AcuraLink Control Unit (XM Receiver) Connector for Inputs and Outputs (USA models with navigation) Part 2:

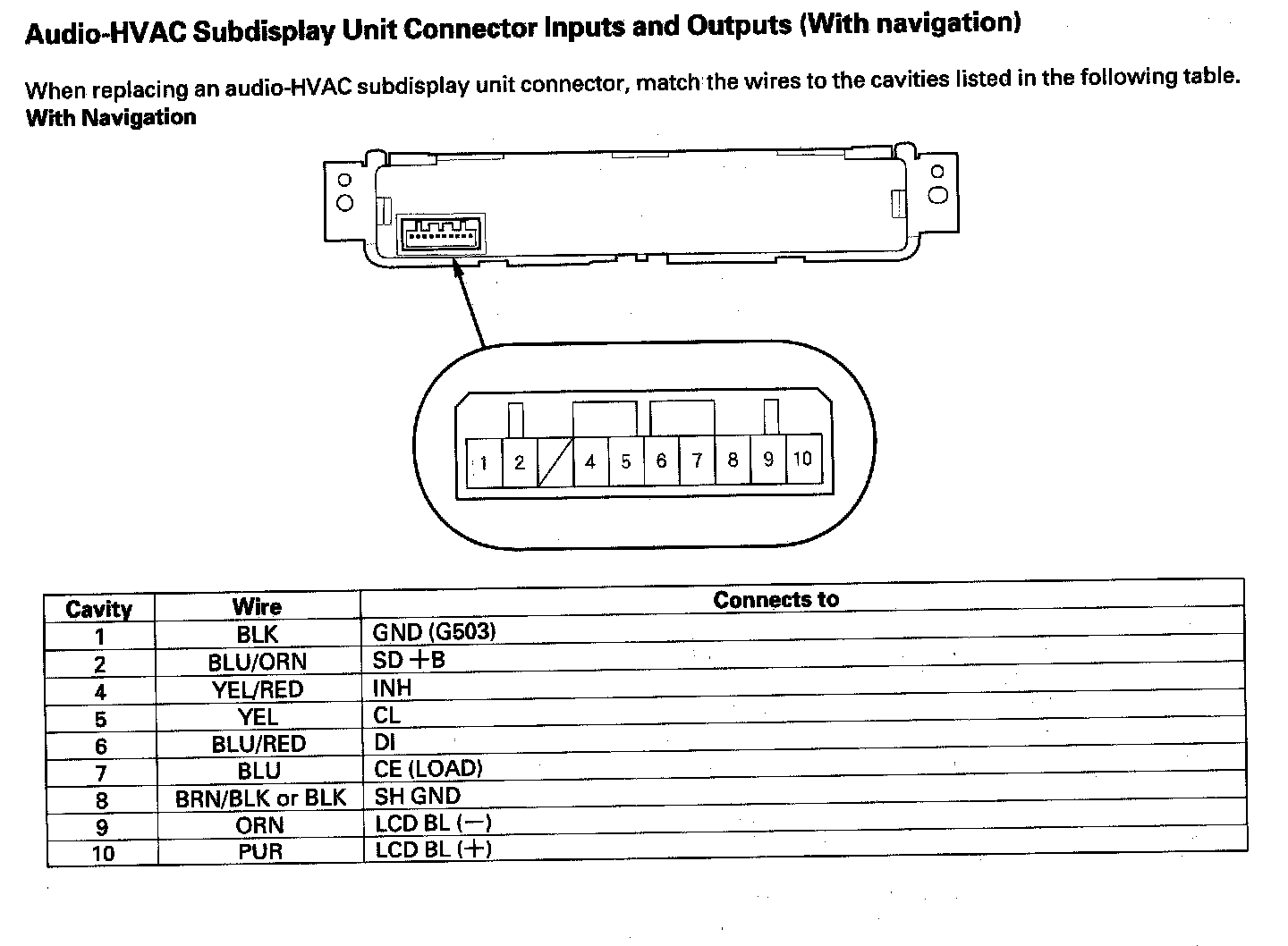

Audio-HVAC Subdisplay Unit Connector Inputs and Outputs (With navigation):

Active Noise Control Unit Connector for Inputs and Outputs (Type-S Model):

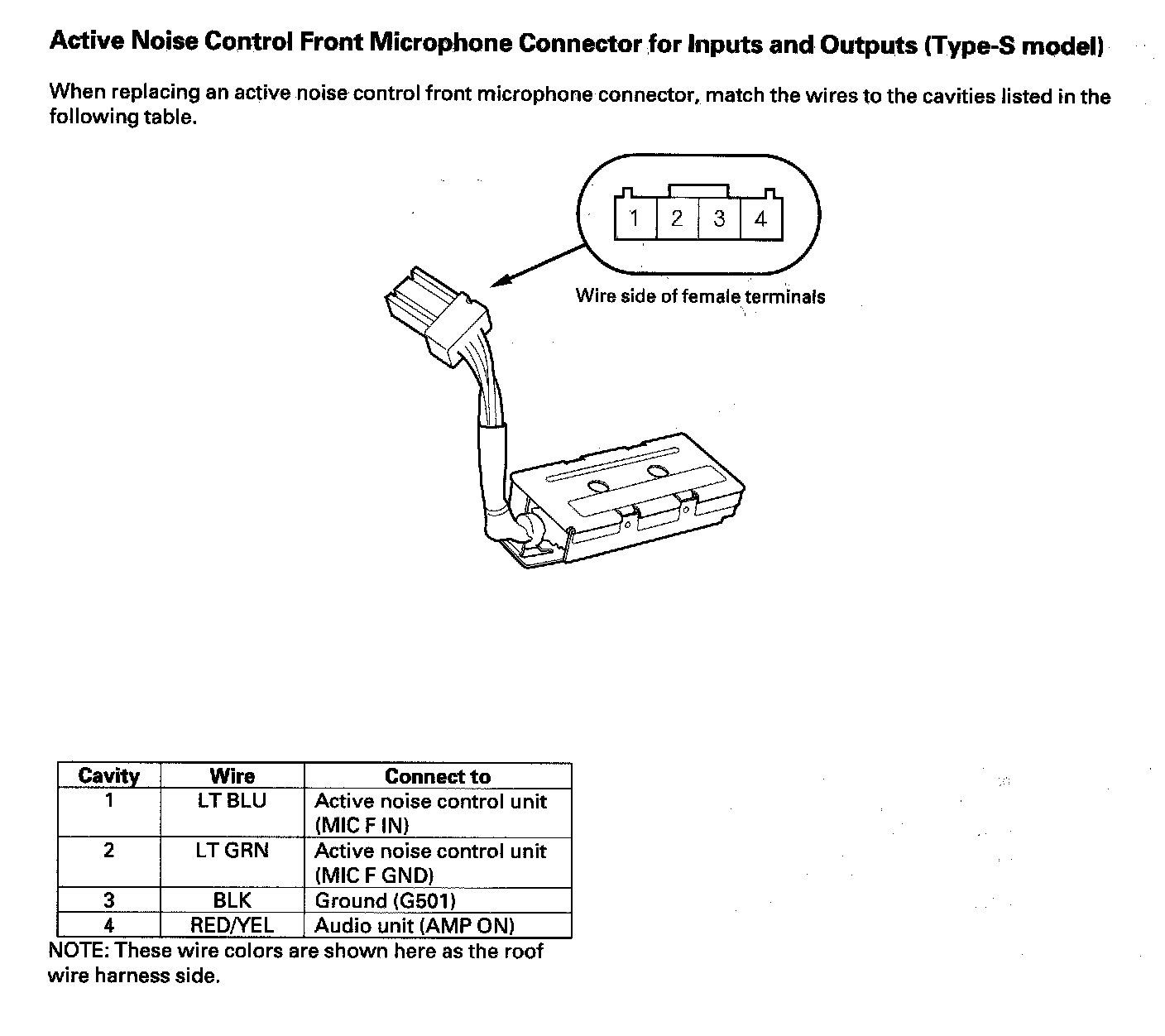

Active Noise Control Front Microphone Connector for Inputs and Outputs (Type-S Model):

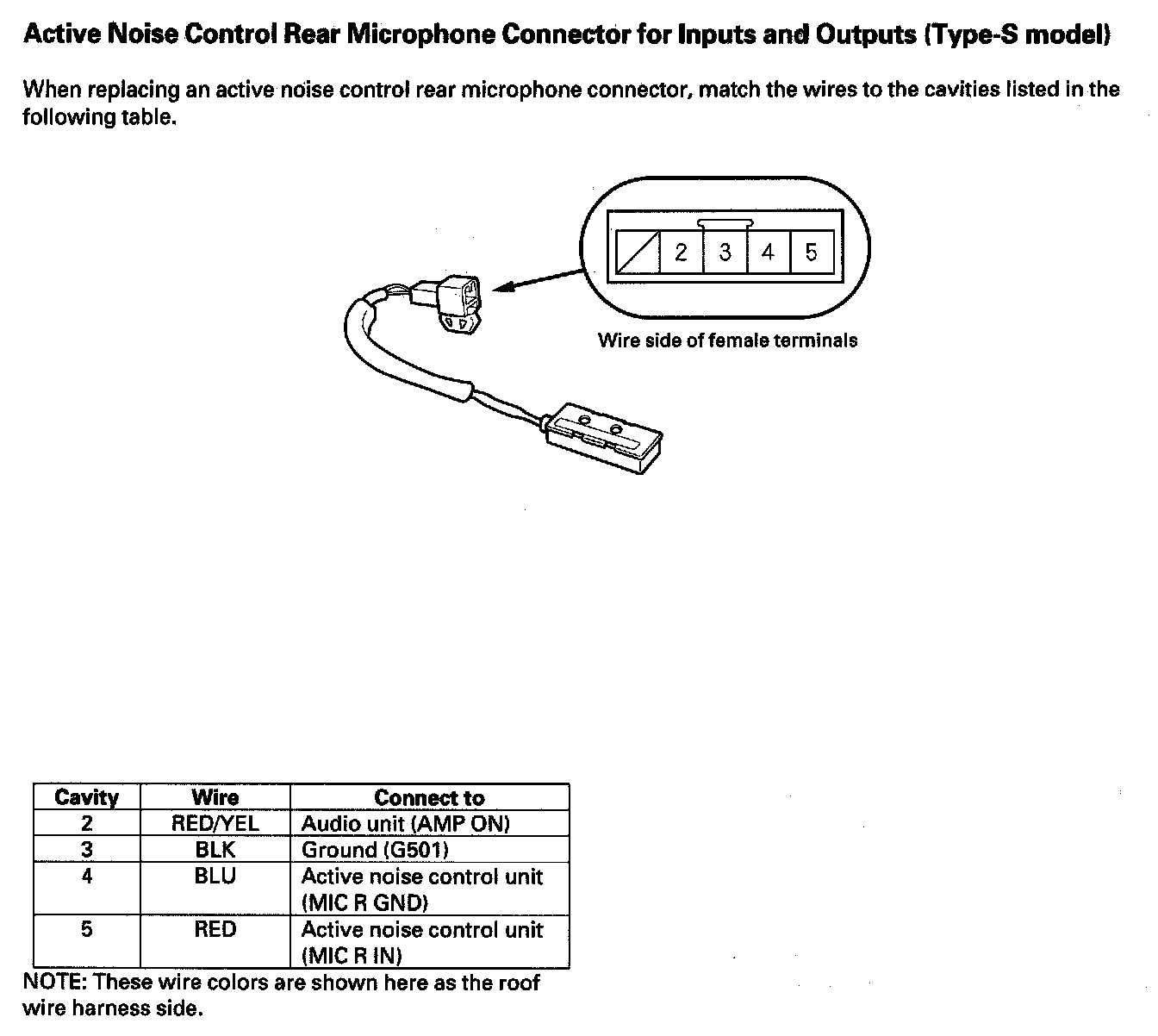

Active Noise Control Rear Microphone Connector for Inputs and Outputs (Type-S Model):

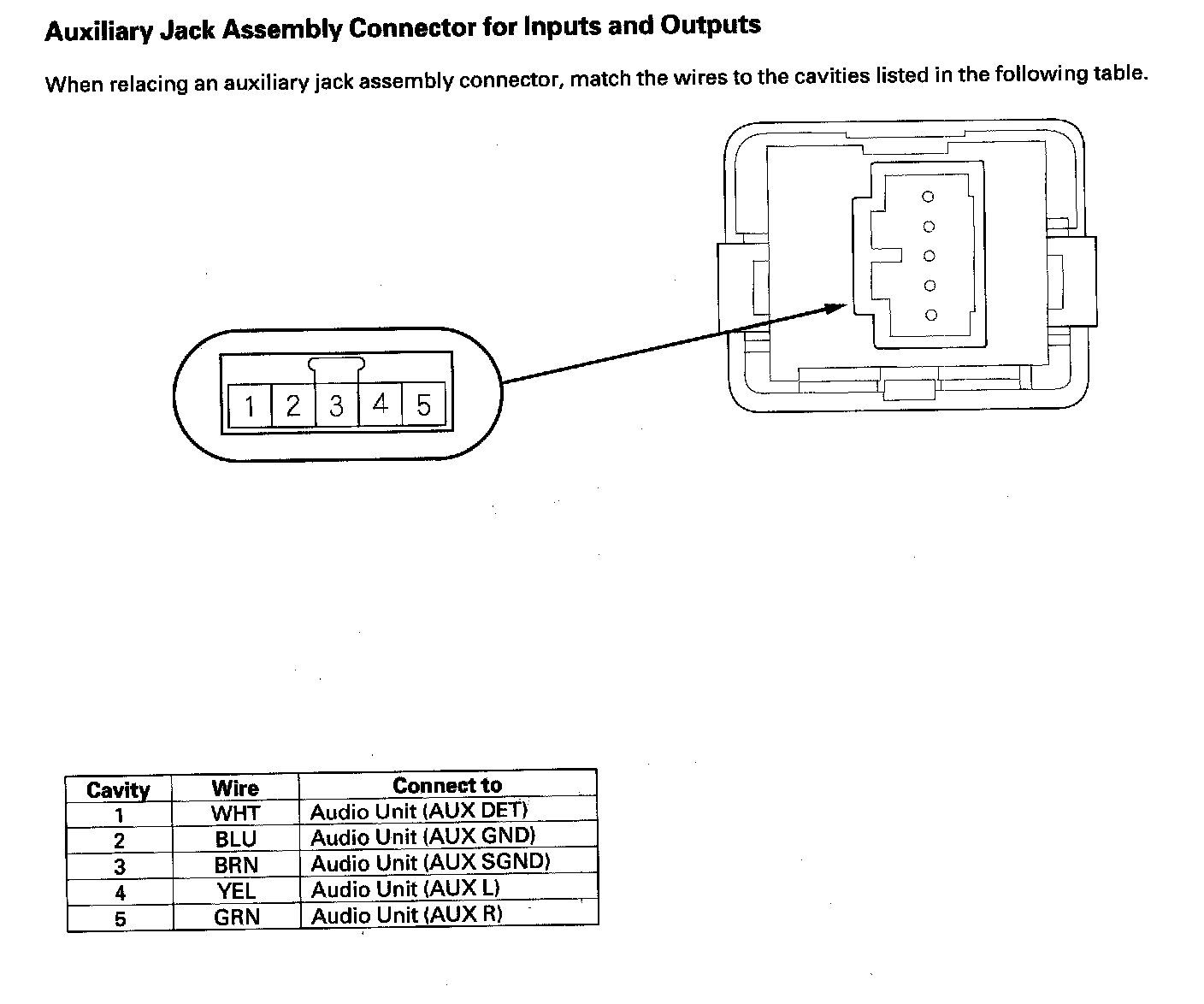

Auxiliary Jack Assembly Connector for Inputs and Outputs:

171. Active Noise Control Front Microphone (Type S):

186. Active Noise Control Rear Microphone (Type S):

211. AcuraLink Reprogramming Connector (C832) (USA: Navigation):

243. Audio-HVAC Sub Display Unit (Navigation):

304. AcuraLink Control Unit (XM Receiver) (USA: Navigation):

306. Audio Unit:

306. Audio Unit:

329. XM Receiver (except USA Navigation):
