Clock: Service and Repair
Clock ReplacementWithout NavigationNOTE: Vehicles with navigation; refer to audio-HVAC sub display unit removal/installation.
1.
Remove the dashboard center vent.
2.

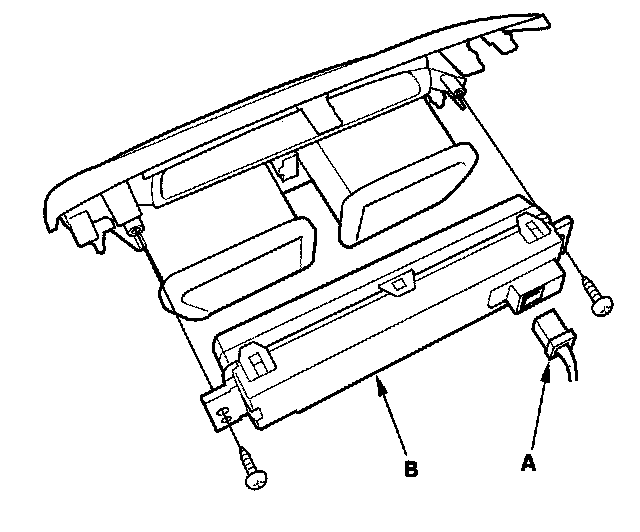

Disconnect the 5P connector (A) from the clock.
3.
Remove the two mounting screws, and remove the clock (B).
4.
Install in the reverse order of removal.
