License Plate Lamp: Service and Repair

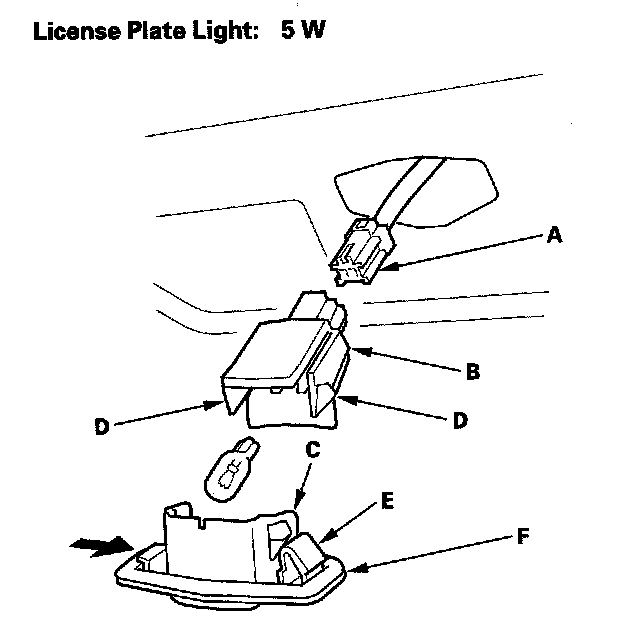

License Plate Light Replacement

1. Open the trunk lid, and remove the trunk lid trim.

2. Disconnect the 2P connector (A) from the light.
3. Release the bulb socket (B) from the lens (C) by pressing in on the tabs (D).
4. Remove the lens from the trunk lid by pressing on the tab (E).
5. Inspect the gasket (F), if the gasket is distorted or compressed, replace it.
6. Install the license plate light in the reverse order of removal.
