Marker Lamp: Service and Repair
Side Marker Light Replacement 1.
Remove the inner fender and front fender fairing, or the trunk side trim panel*.
2.

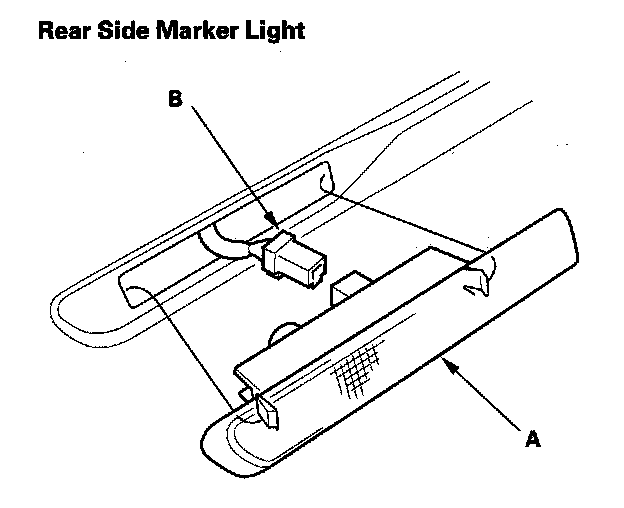

Carefully push out the light (A) from behind the tender or trunk*.
* : Rear Side Marker Light
3.
Disconnect the 2P *1 or 3P *2 connector (B) from the light.
* 1: BASE model
* 2: TYPE-S model
4.
Install in the reverse order of removal.
