Fuel Pump Control Unit: Service and Repair

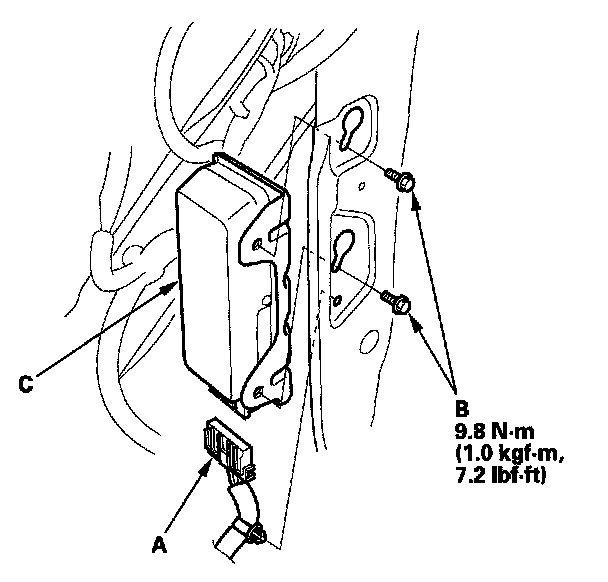

Fuel Pump Control Module Replacement 1.
Remove the left trunk side trim panel.
2.
Disconnect the fuel pump control module connector (A).
3.
Remove the bolts (B).
4.
Remove the fuel pump control module (C).
5.
Install the parts in the reverse order of removal.
