Resonator: Service and Repair

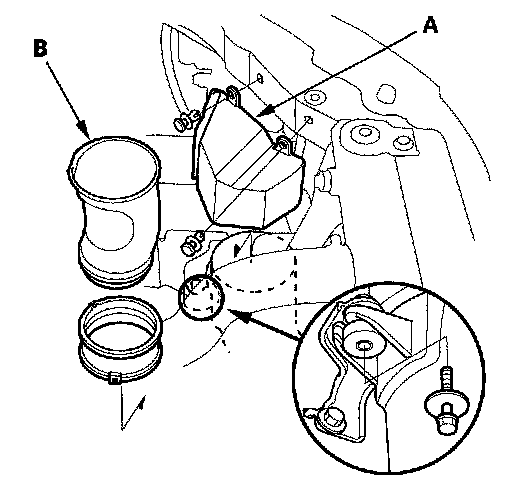

Resonator Removal/Installation 1.
Remove the cover (A) and duct (B).
2.
Remove the front bumper.

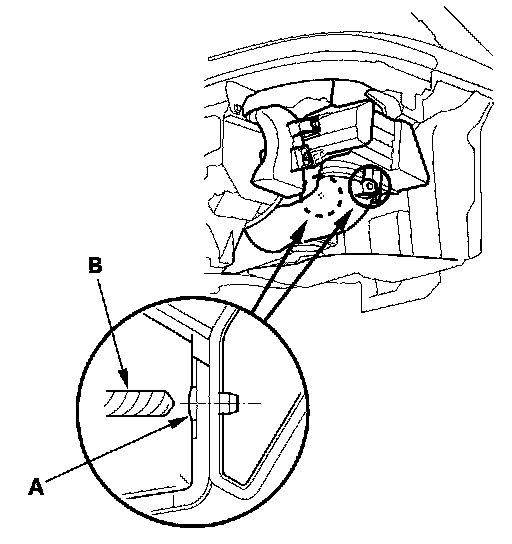

3.
Center-punch each of the rivets (A), and drill their heads off with a
0.07 in (2 mm) drill bit (B).

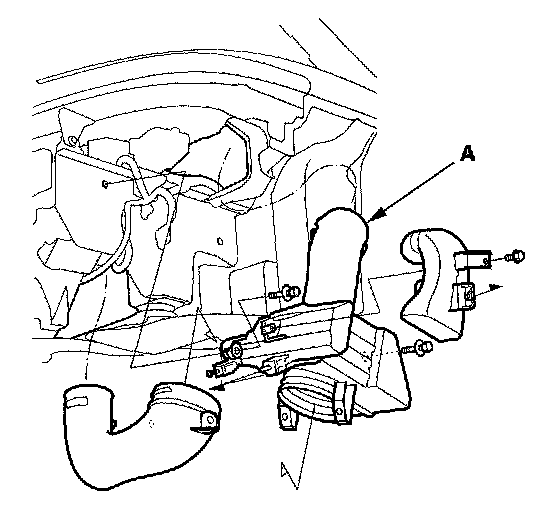

4.
Remove the
resonator (A).

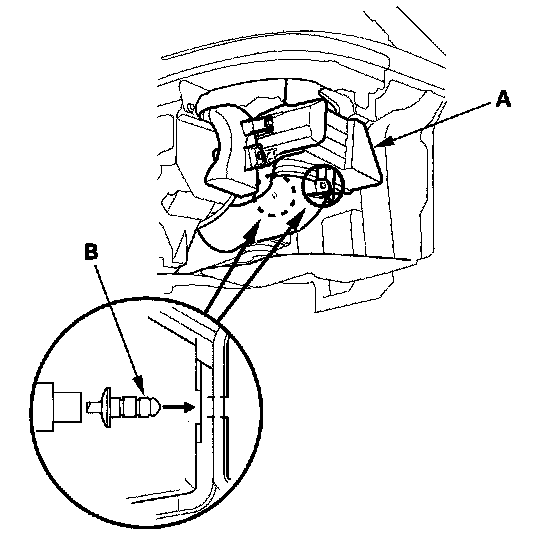

5.
Install the
resonator (A) with the rivets (B) firmly.
6.
Install the parts in the reverse order of removal.
