Mainshaft Sensor: Service and Repair

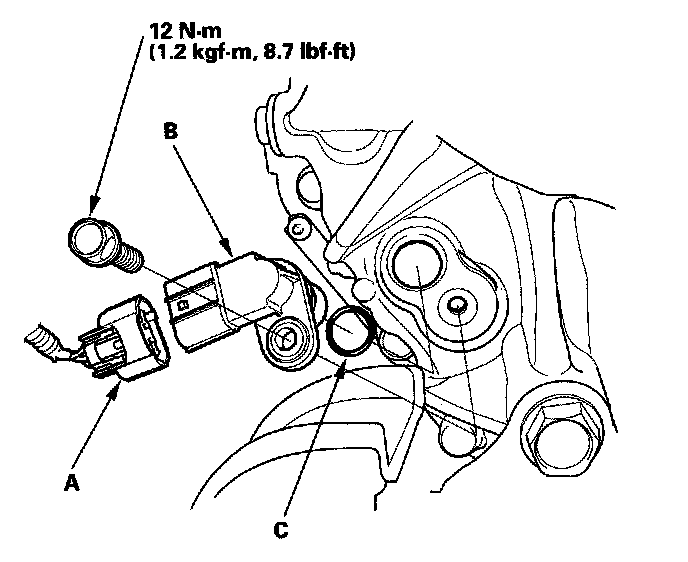

Input Shaft (Mainshaft) Speed Sensor ReplacementNOTE: For A/T models.
M/T 1.
Disconnect the input shaft (mainshaft) speed sensor 3P connector (A).
2.
Remove the input shaft (mainshaft) speed sensor (B).
3.
Install the parts in the reverse order of removal with a new O-ring (C).
