Wiper Arm: Adjustments
Wiper Arm/Nozzle AdjustmentWiper arms stop position

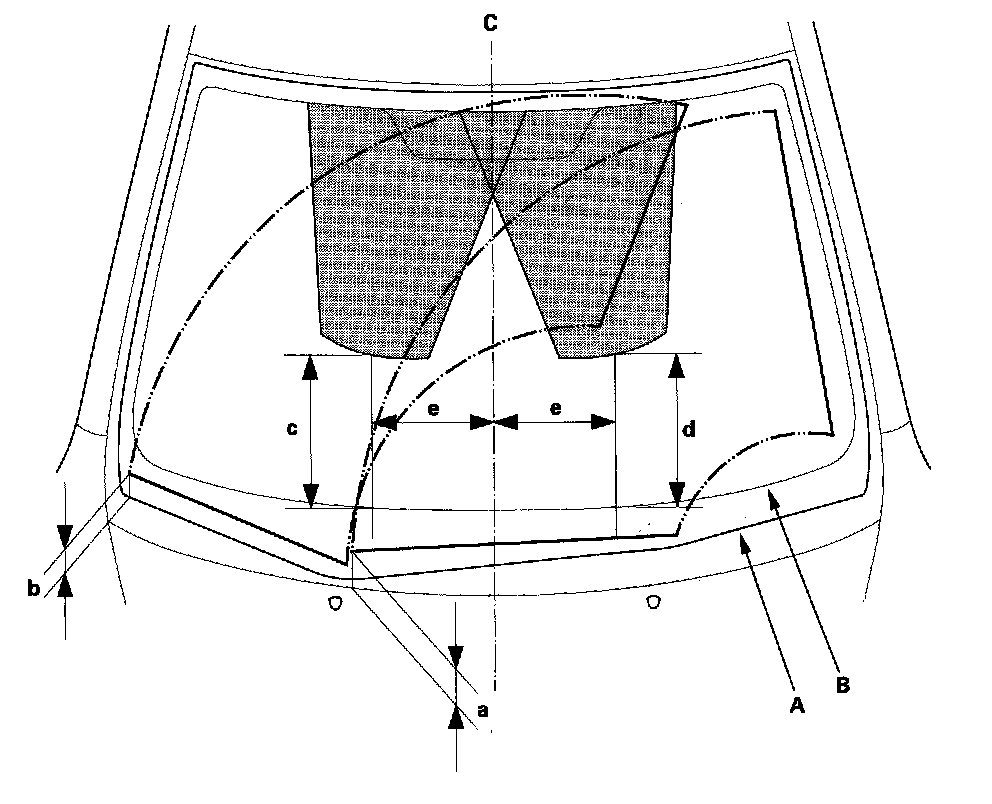

1. When the wiper arms stop at automatic stop position, confirm the wiper arms are at the standard position.
a: Position at about 40 mm (1.5 in.) from the top of cowl cover (A)
b: Position at about 33 mm (1.2 in.) from the top of cowl cover (A)
Washer nozzle position
2. When you jet the washer fluid, confirm 50 % or more of the jet fluid splashes down within the slash area. If there are not standard positions, adjust the nozzles.
c: Position at about 295 mm (11.6 in.) from the top of black ceramic (B) at lower windshield
d: Position at about 295 mm (11.6 in.) from the top of black ceramic (B) at lower windshield
e: Position at about 285 mm (11.2 in.) from the windshield center line (C)
