ECM/PCM Circuit Diagram

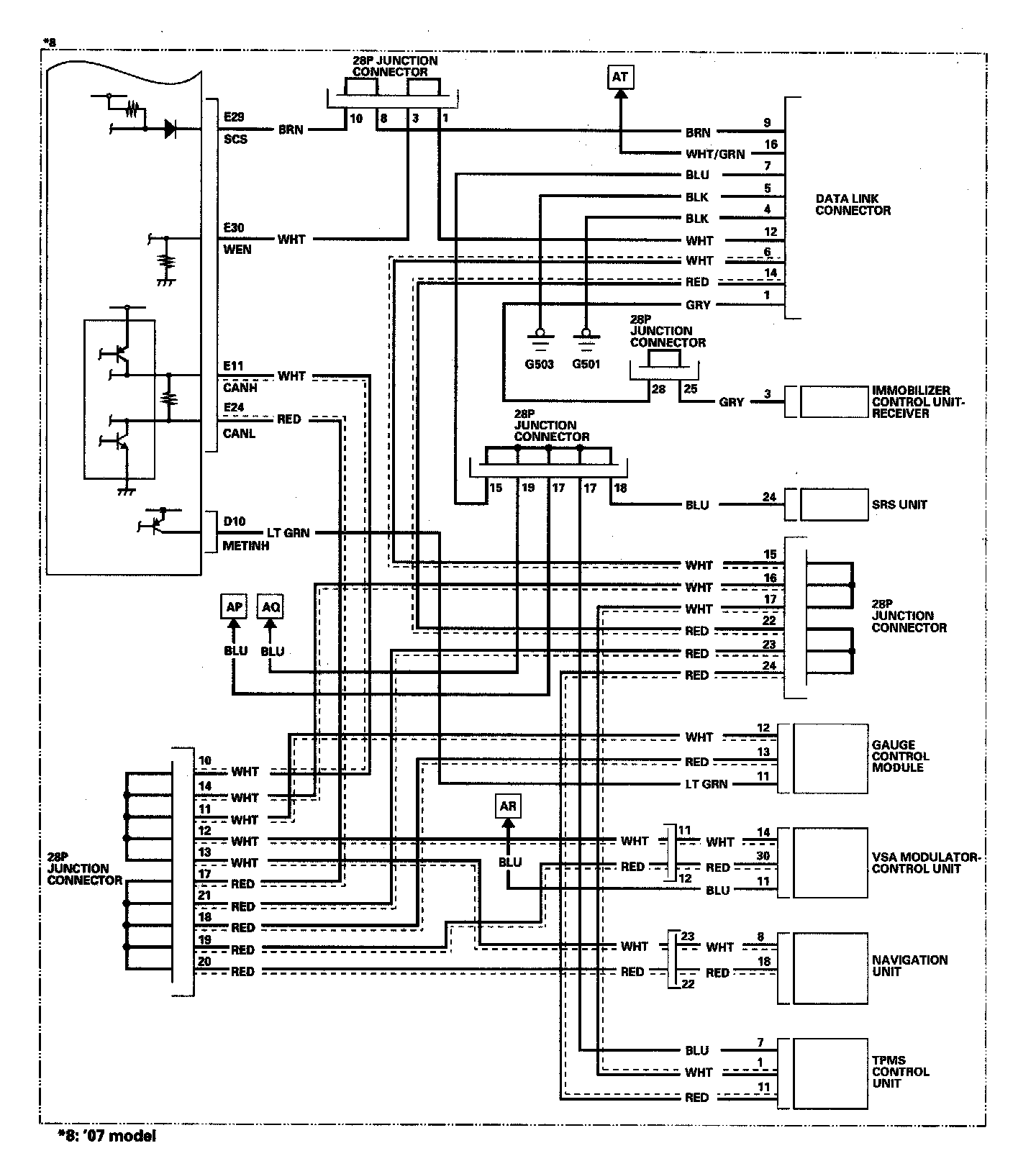

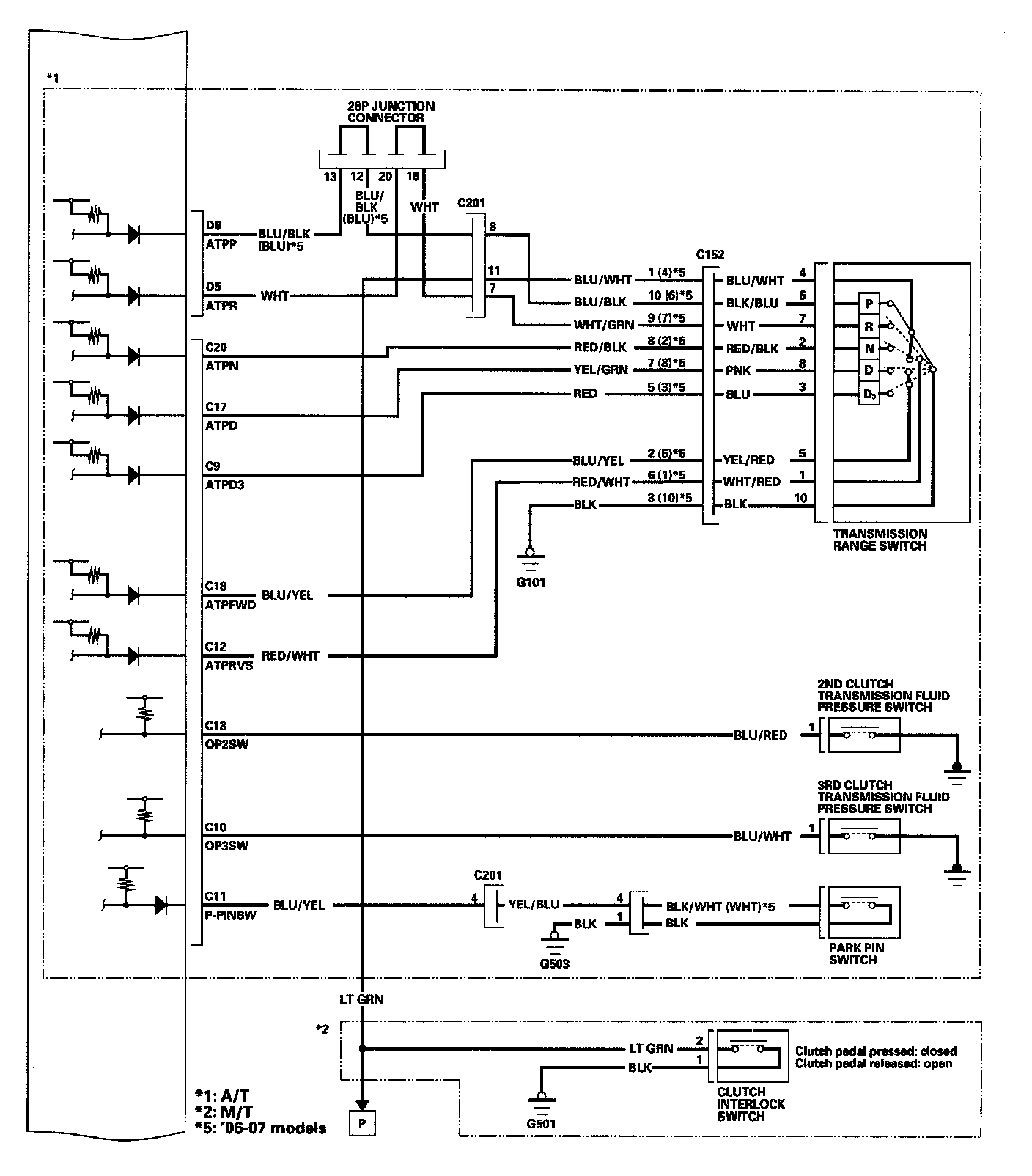

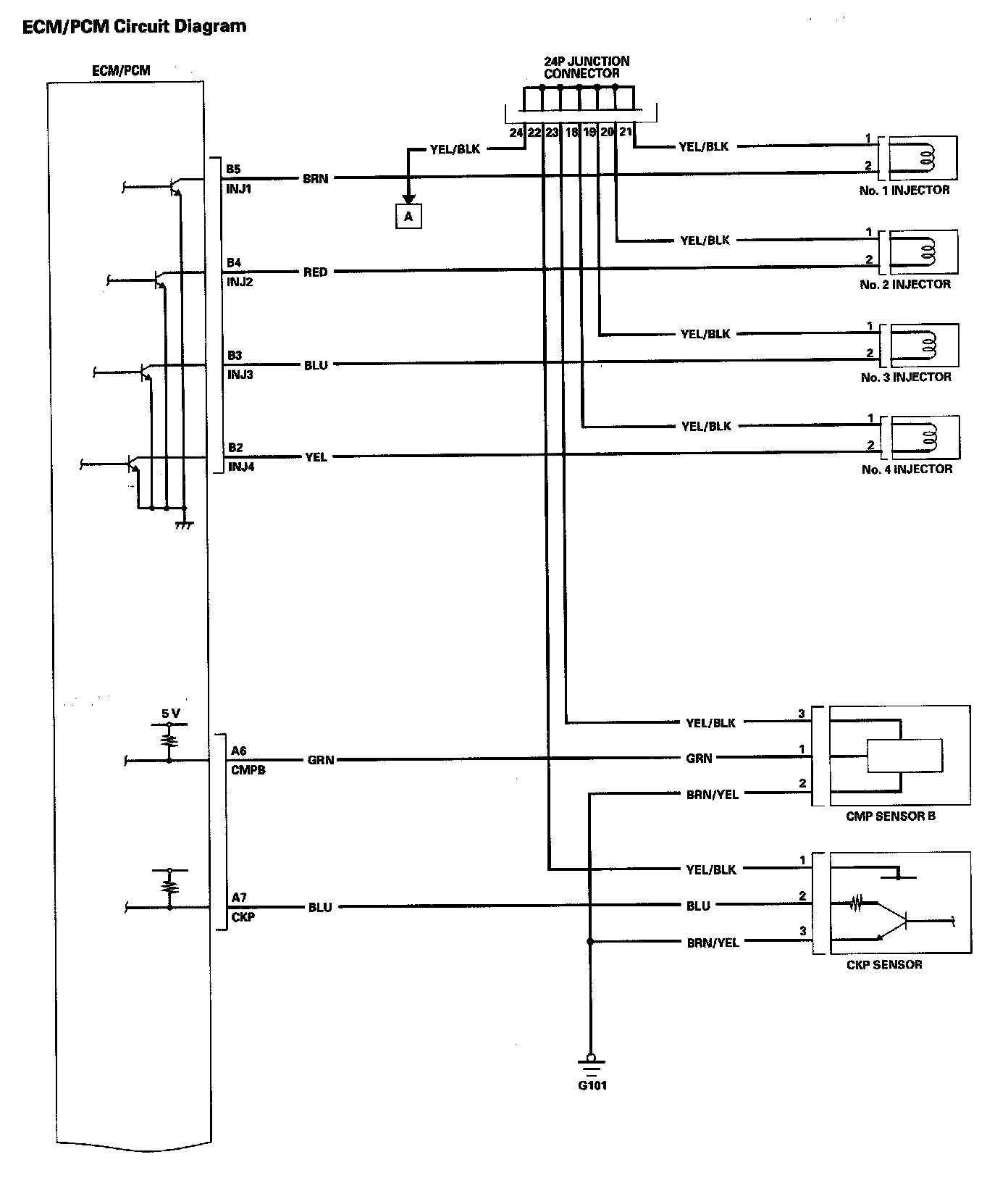

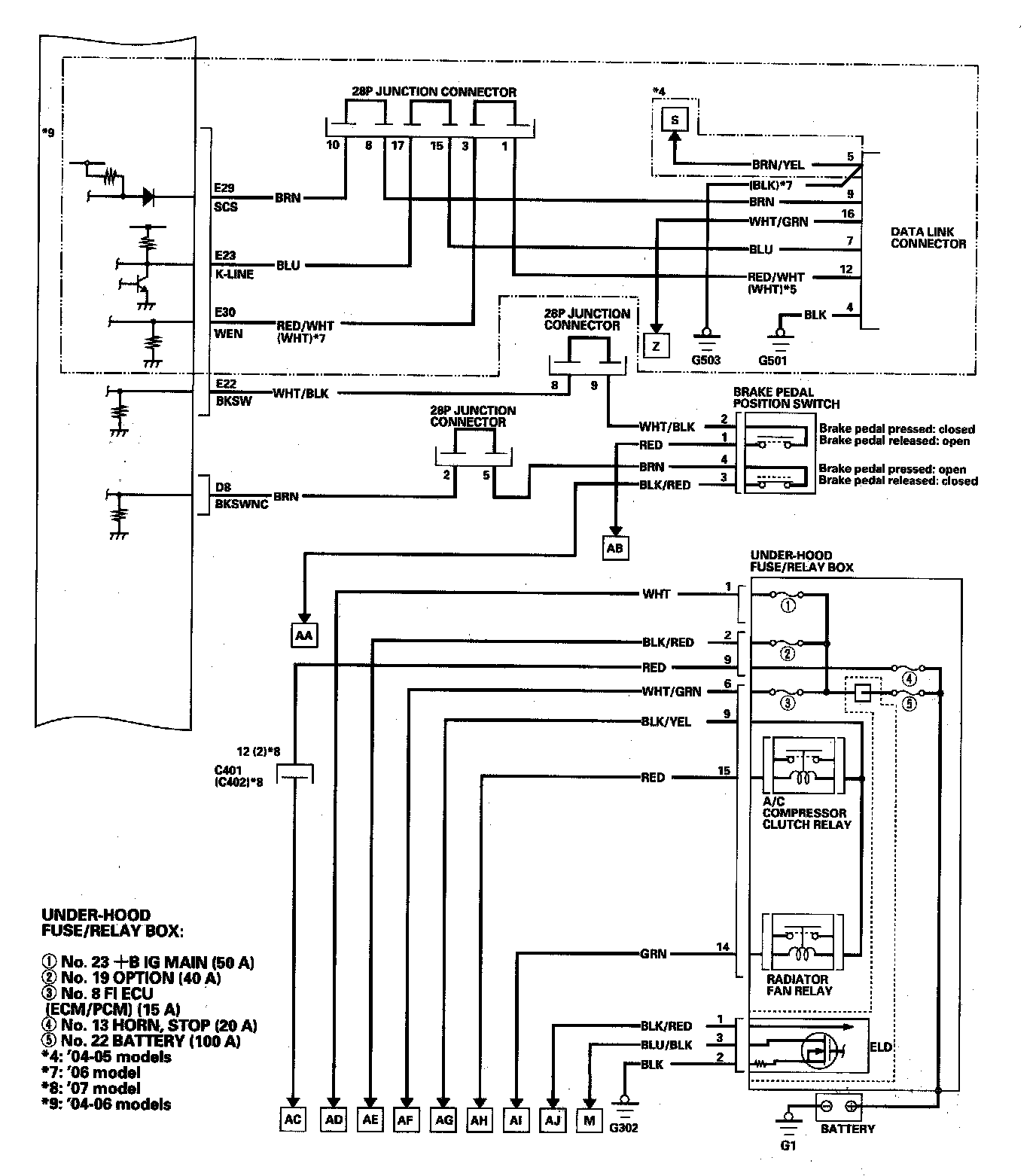

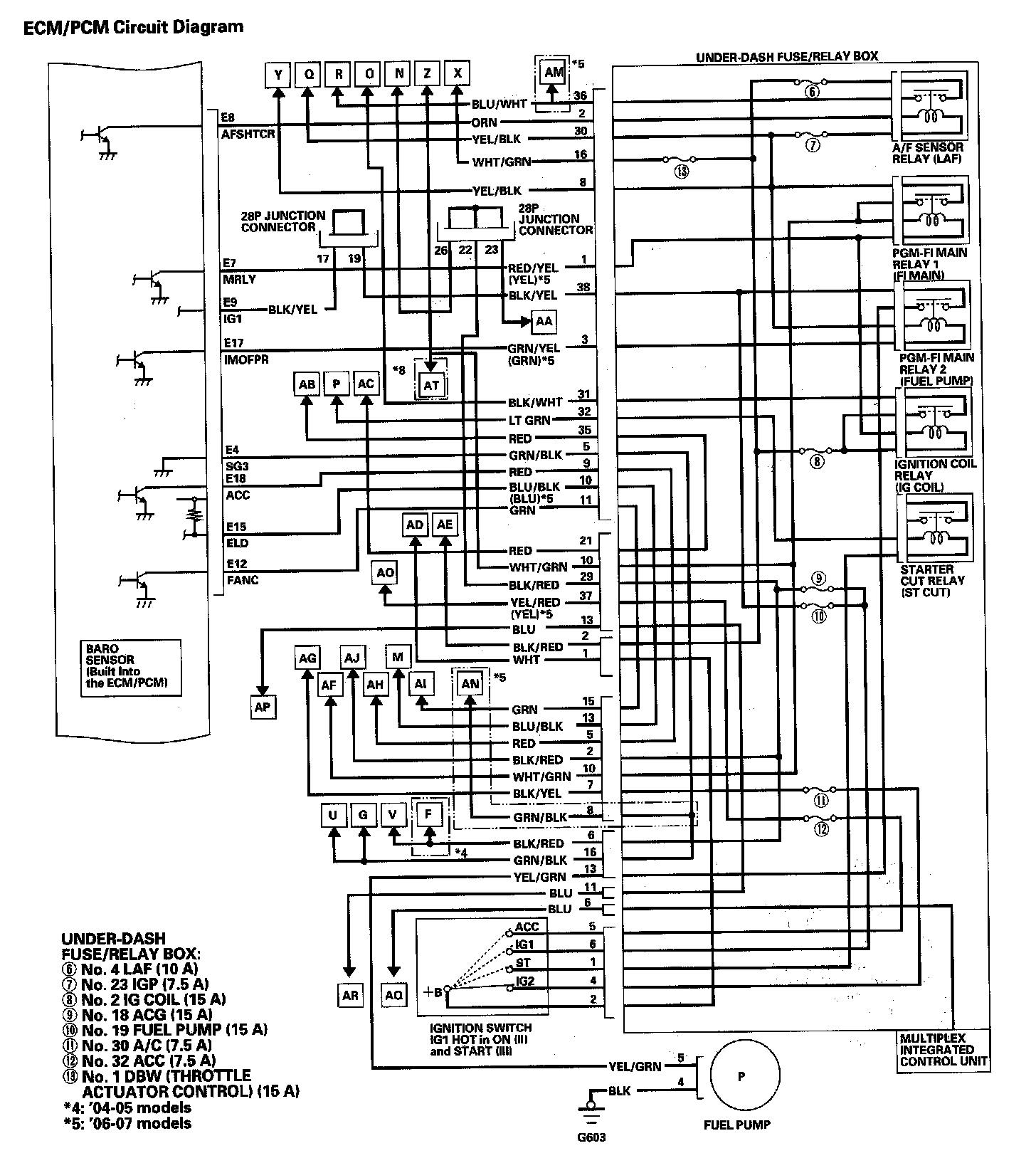

Fuel And Emission Systems ECM/PCM Circuit Diagram Part 1:

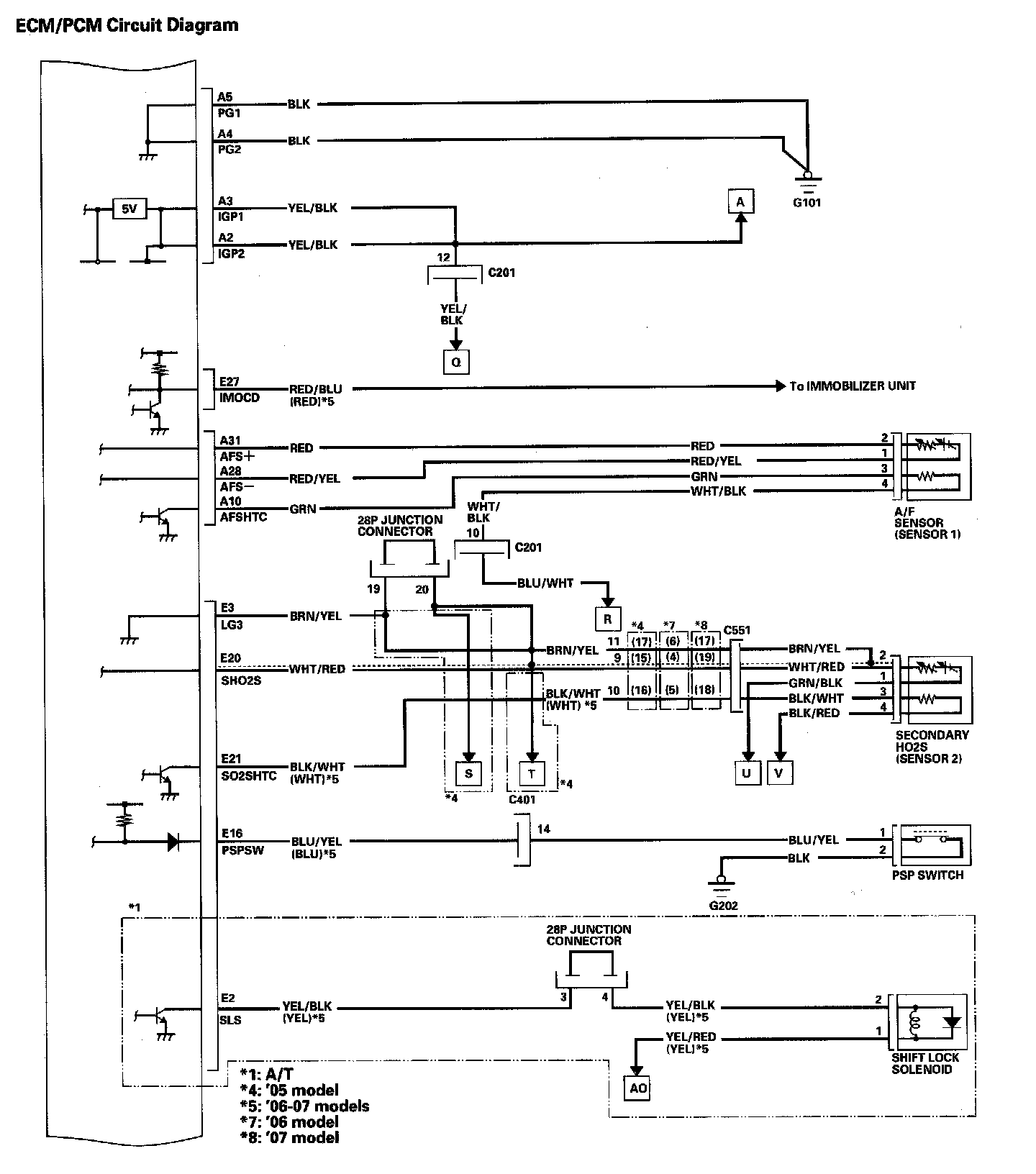

Fuel And Emission Systems ECM/PCM Circuit Diagram Part 2:

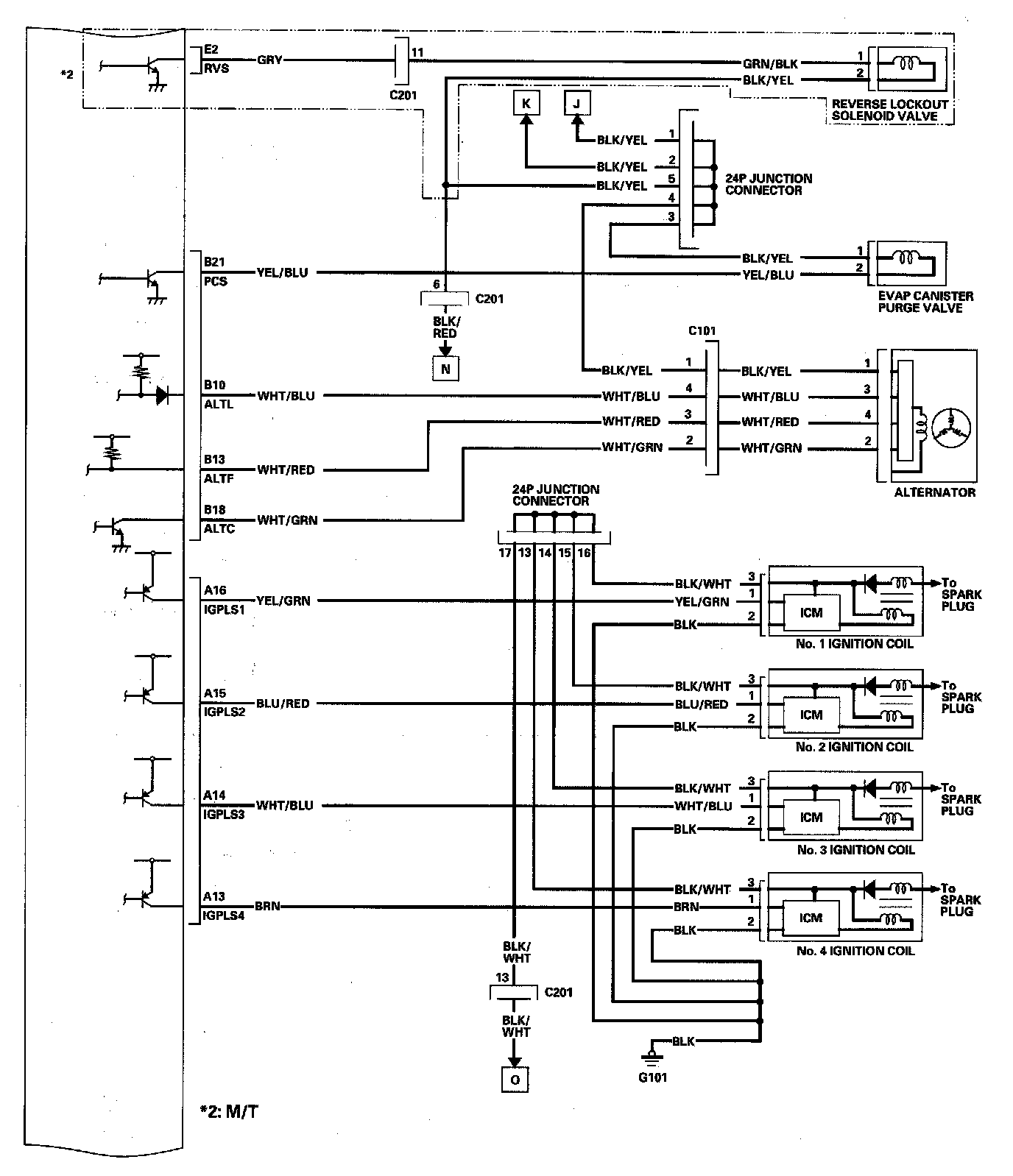

Fuel And Emission Systems ECM/PCM Circuit Diagram Part 3:

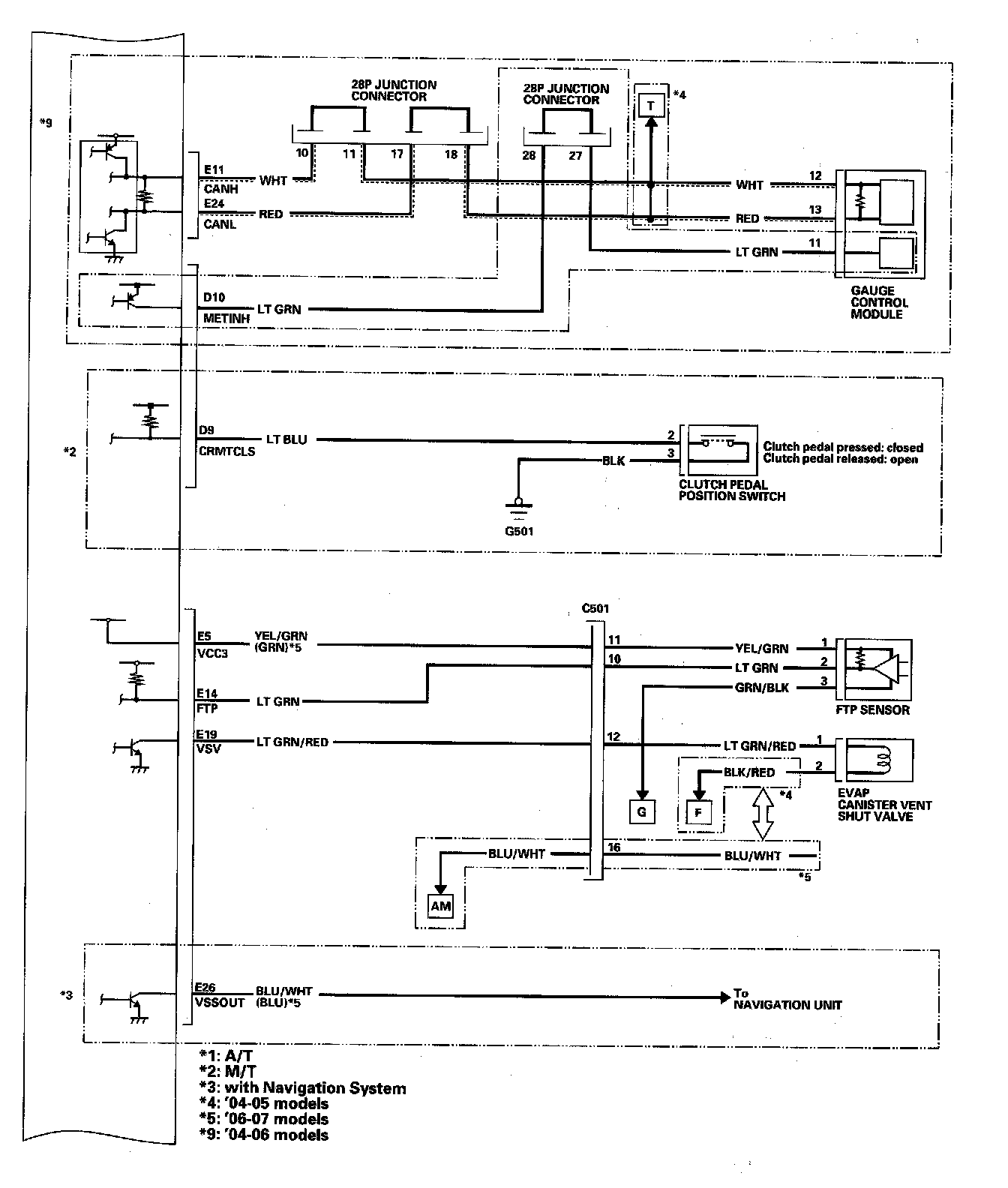

Fuel And Emission Systems ECM/PCM Circuit Diagram Part 4:

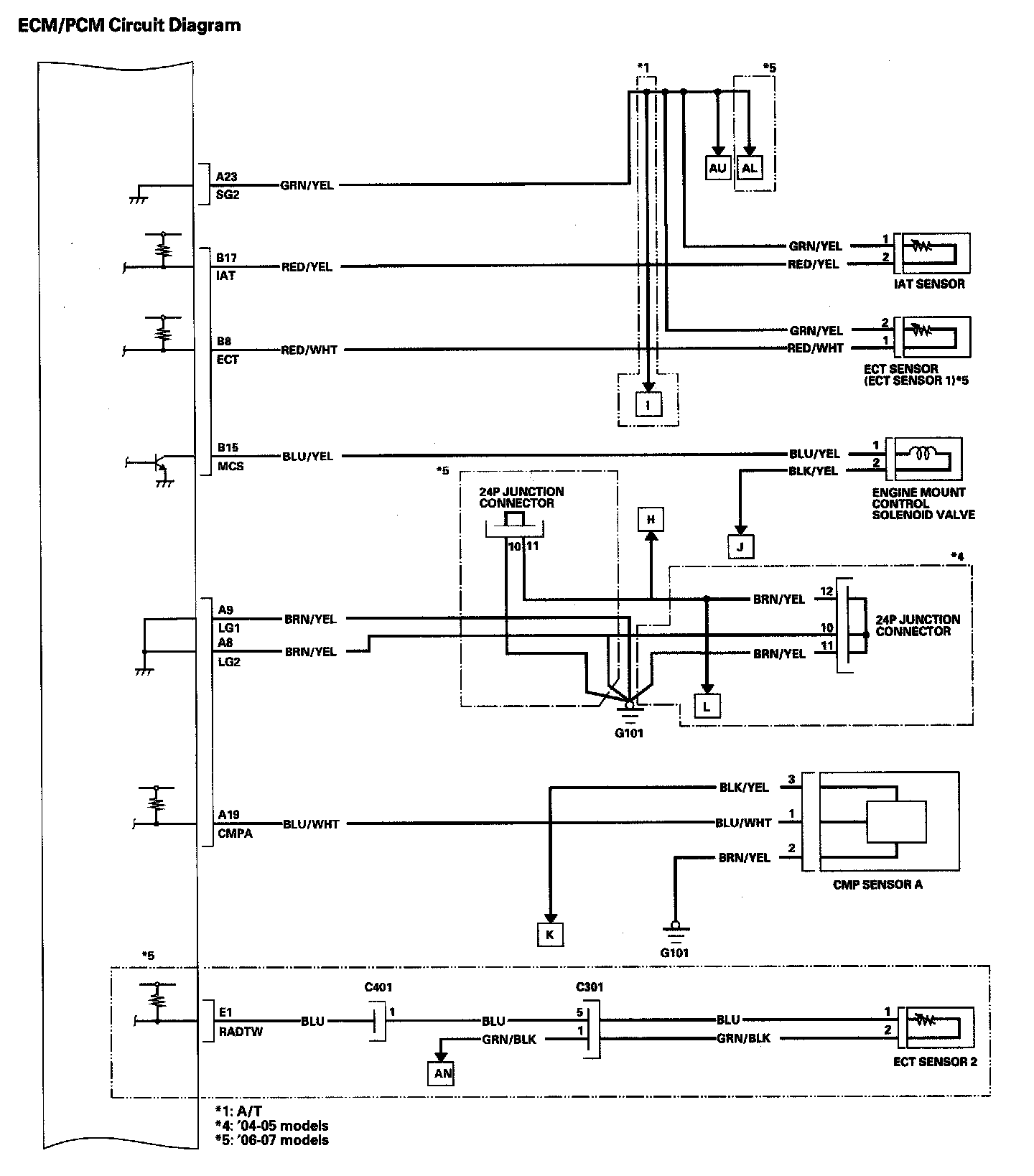

Fuel And Emission Systems ECM/PCM Circuit Diagram Part 5:

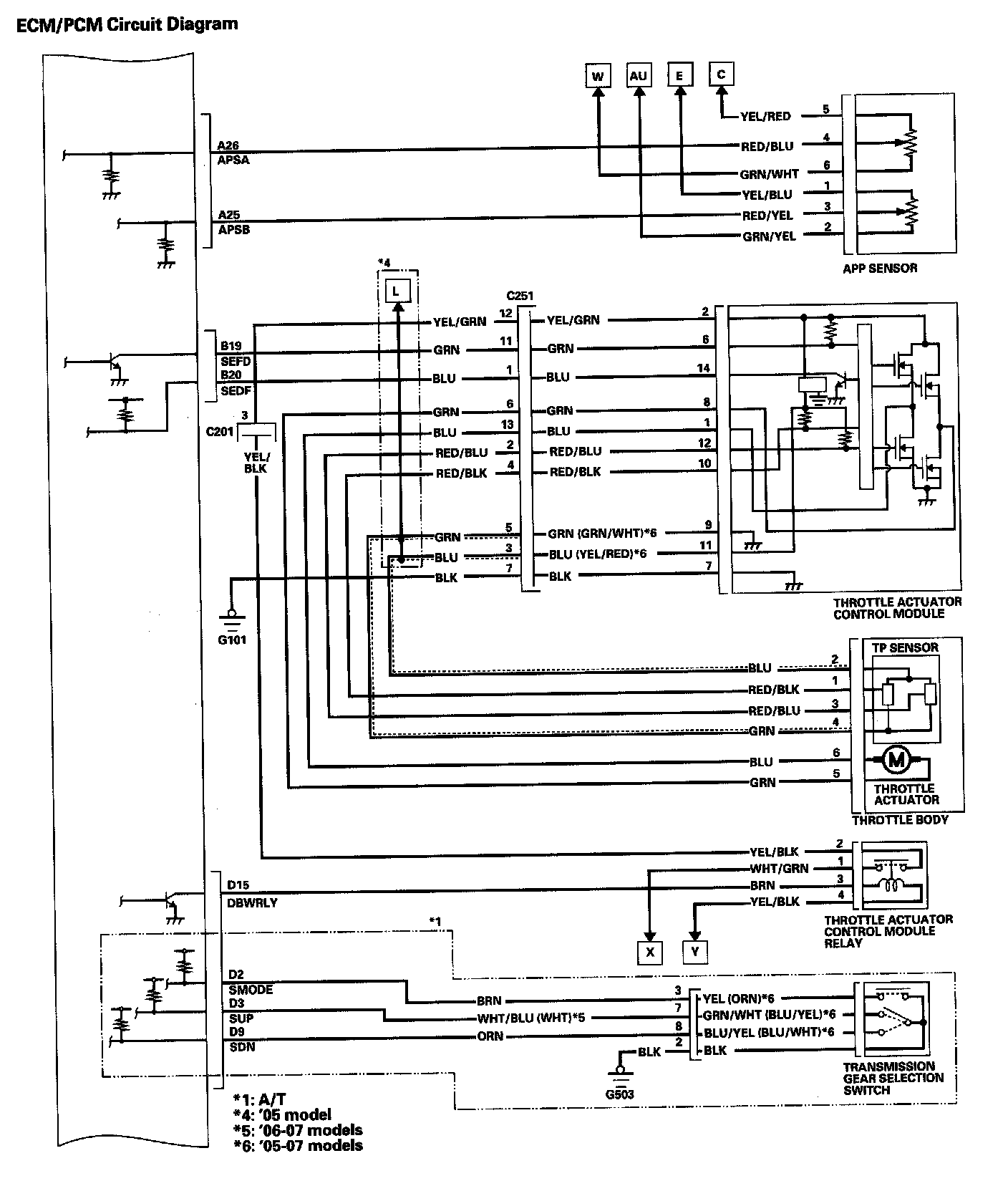

Fuel And Emission Systems ECM/PCM Circuit Diagram Part 6:

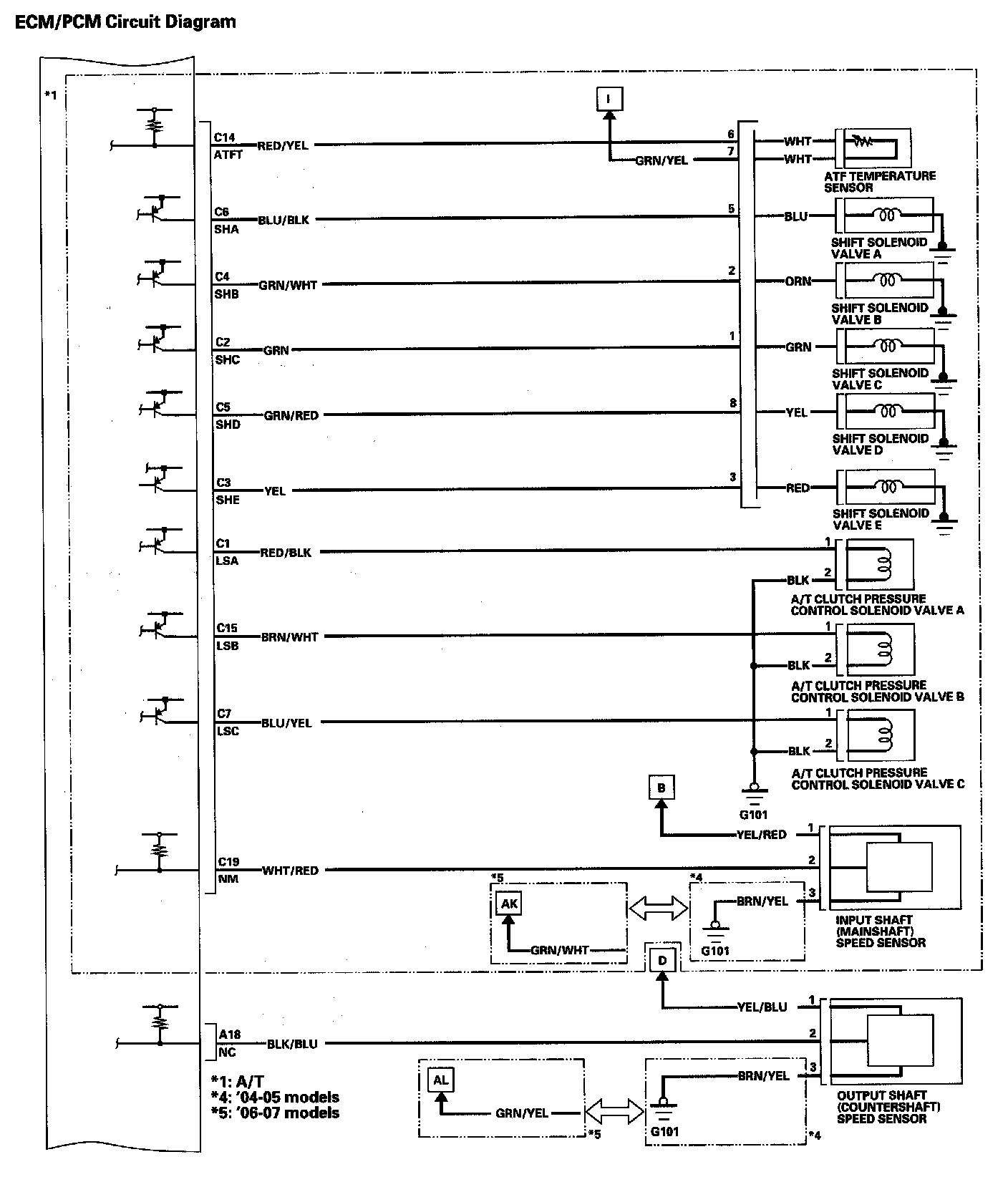

Fuel And Emission Systems ECM/PCM Circuit Diagram Part 7:

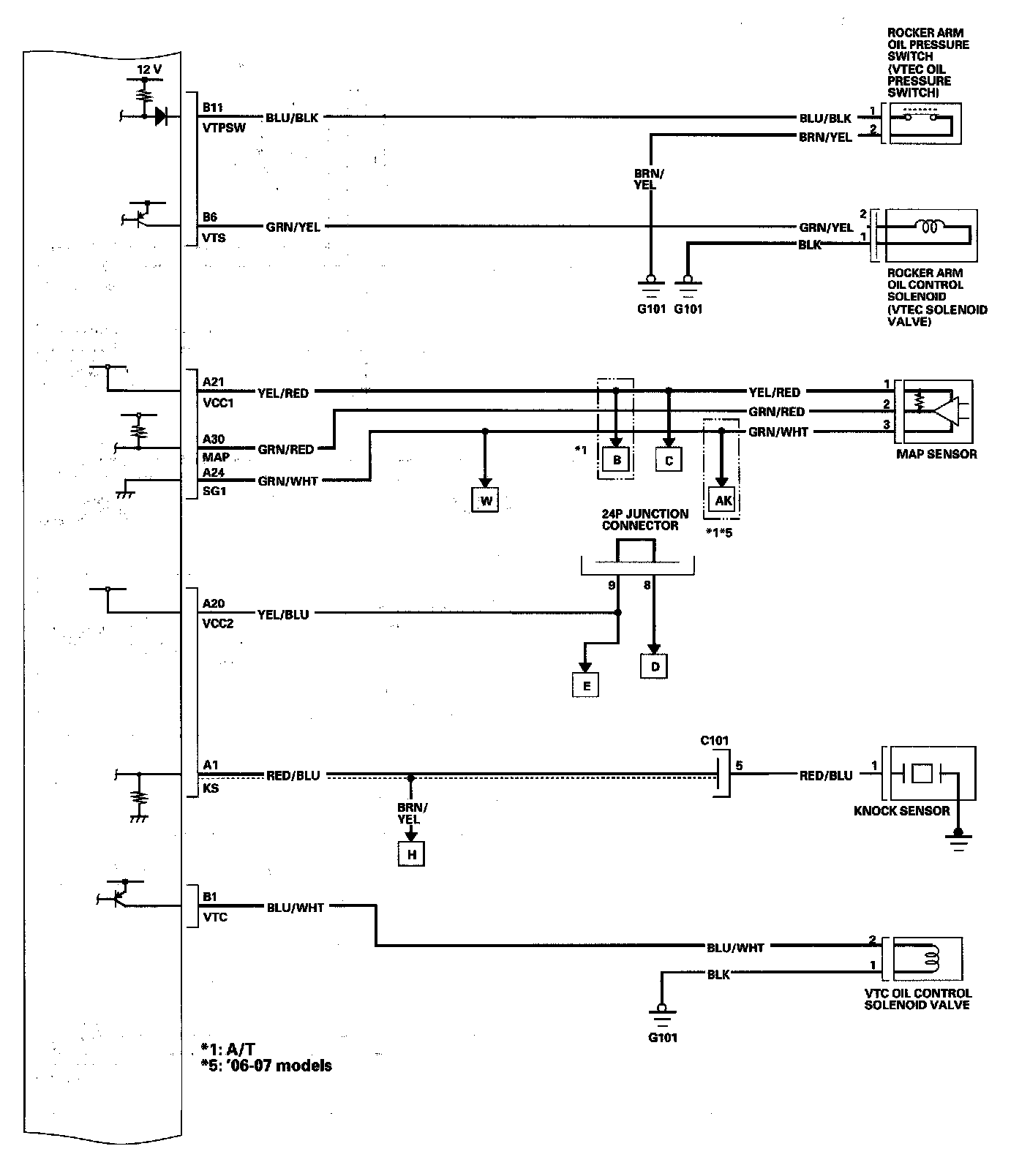

Fuel And Emission Systems ECM/PCM Circuit Diagram Part 8:

Fuel And Emission Systems ECM/PCM Circuit Diagram Part 9:

Fuel And Emission Systems ECM/PCM Circuit Diagram Part 10:

Fuel And Emission Systems ECM/PCM Circuit Diagram Part 11:

Fuel And Emission Systems ECM/PCM Circuit Diagram Part 12:
