Power Mirror Replacement




Power Mirror Replacement

NOTE: Take care not to scratch the door.

1. Lower the door glass fully.

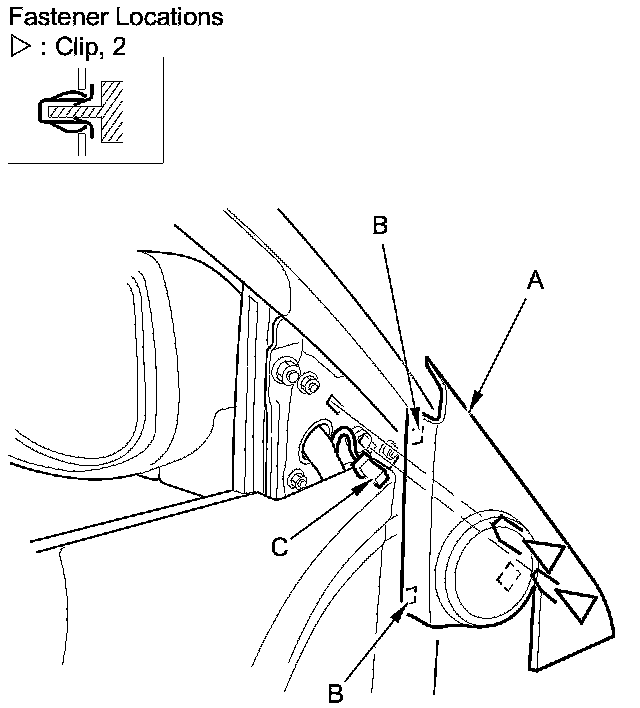

2. Remove the tweeter cover (A).

1. With your hand, carefully pull out the top edge of the tweeter cover to detach the hooks (B) and the clips.

2. Disconnect the tweeter connector (C).





3. Remove the door panel Front Door Panel Removal/Installation.

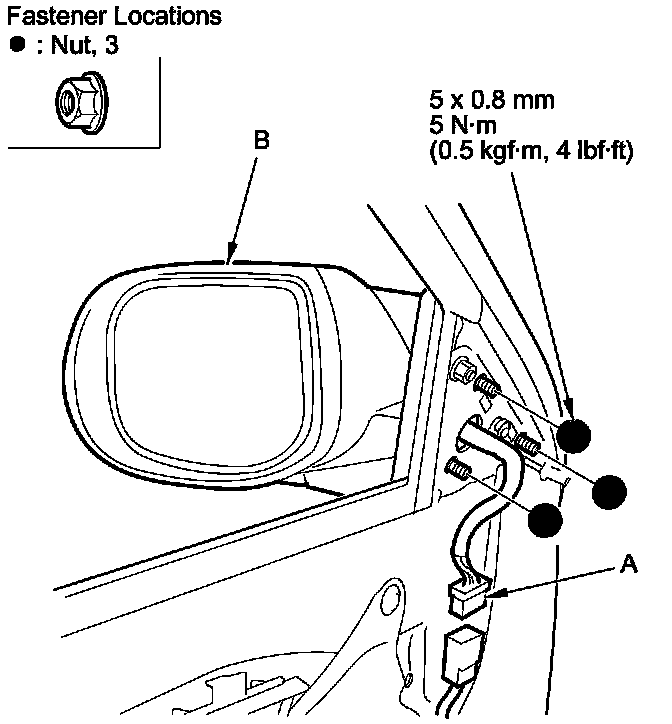

4. Disconnect the power mirror connector (A).





5. While holding the mirror (B), remove the nuts securing the mirror.

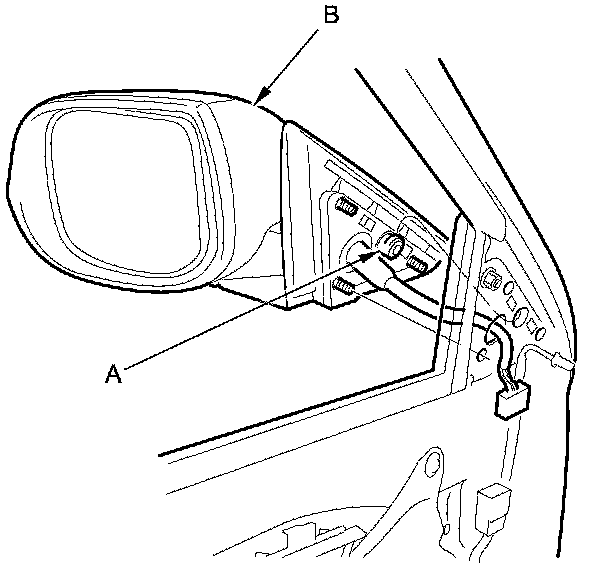

6. Release the catch (A) from the hole in the door, then remove the mirror (B).





7. Install the mirror in the reverse order of removal, and note these items:

- Make sure each connector is plugged in properly.
- Replace any damaged clips with new ones.
- Push the clips and the hooks into place securely.
