Cabin Temperature Sensor / Switch: Service and Repair

In-Car Temperature Sensor Replacement

1. Remove the center console panel Center Console Panel Removal/Installation.

2. Remove the driver's center trim Dashboard Center Trim Removal/Installation.

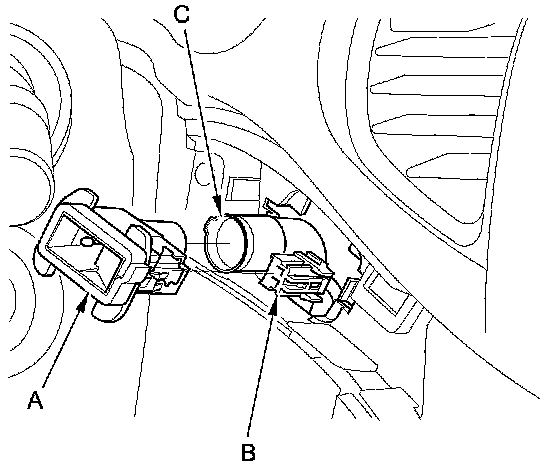

3. Pull out the in-car temperature sensor (A), disconnect the connector (B), and remove the in-car temperature sensor from the air hose (C).

4. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
