Lighting and Horns: Service and Repair

Exterior Lights Bulb Replacement

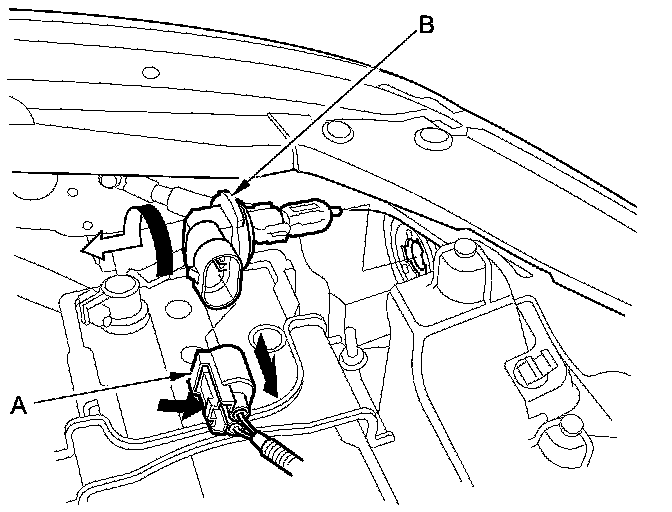

Headlight (High Beam)

1. Left headlight: Remove the intake air duct cover and duct.

2. Right headlight: Remove the coolant reservoir from its mounting bracket, and set it aside.

3. Disconnect the 2P connector (A) from the headlight.









4. Turn the bulb socket (B) 45 ° counterclockwise to remove the bulb.

5. Install a new bulb in the reverse order of removal.

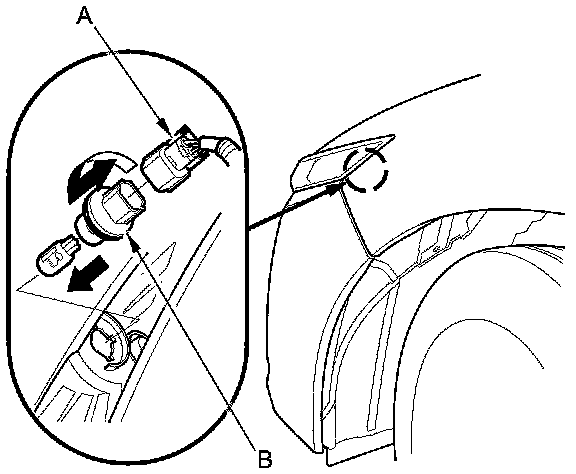

Front Parking/Side Marker/Turn Signal Light

1. Remove the inner fender Front Inner Fender Replacement.

2. Disconnect the 2P connector (A) from the front turn signal light.









3. Turn the bulb socket (B) 45 ° counterclockwise to remove the bulb.

4. Install a new bulb in the reverse order of removal.

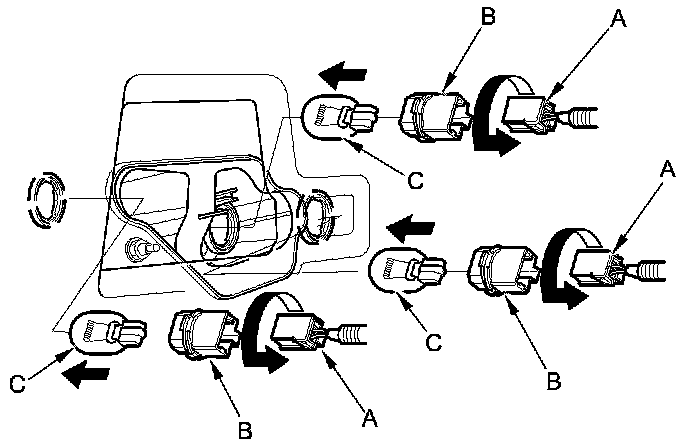

Taillights

1. Open the trunk lid, and remove the trunk side trim panel Interior Trim Removal/Installation - Trunk Area.

2. Disconnect the connectors (A) from the light.









3. Turn the bulb sockets (B) 45 ° counterclockwise to remove the bulbs (C).

4. Install new bulb(s) in the reverse order of removal.

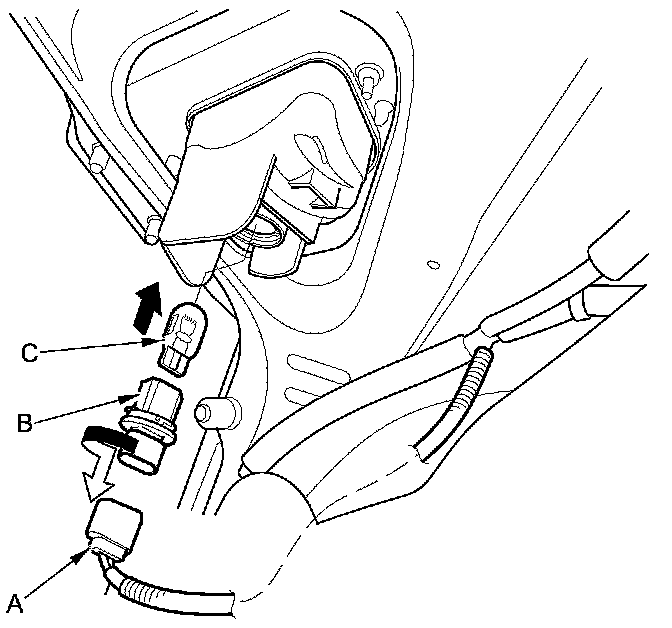

Inner Taillight

1. Open the trunk lid, and remove the trunk lid trim panel Interior Trim Removal/Installation - Trunk Area.

2. Disconnect the connector (A) from the light.









3. Turn the bulb socket (B) 45 ° counterclockwise to remove the bulb (C).

4. Install a new bulb in the reverse order of removal.

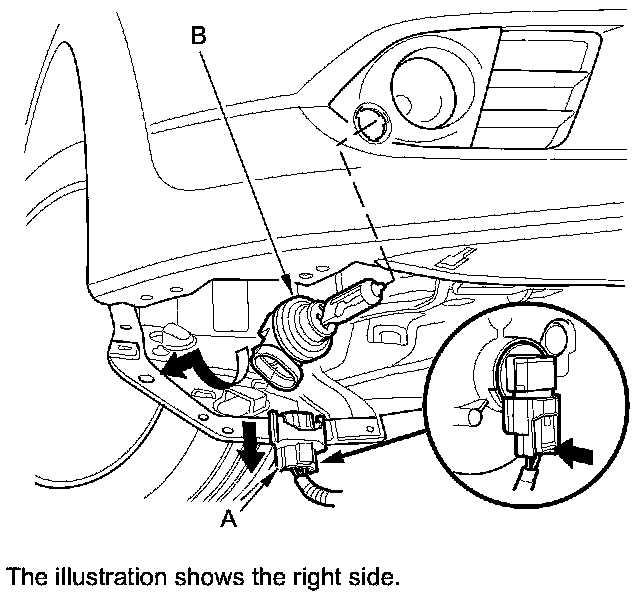

Fog Light

1. For right side, remove the splash shield Front Splash Shield Replacement, for left side, remove the left inner fender Front Inner Fender Replacement.

2. Disconnect the 2P connector (A) from the fog light (B).









3. Turn the bulb socket counterclockwise to remove it from the housing.

4. Install a new bulb in the reverse order of removal.
