Front Individual Map Light Test/Replacement

Front Individual Map Light Test/Replacement

1. Turn the map light switch OFF.

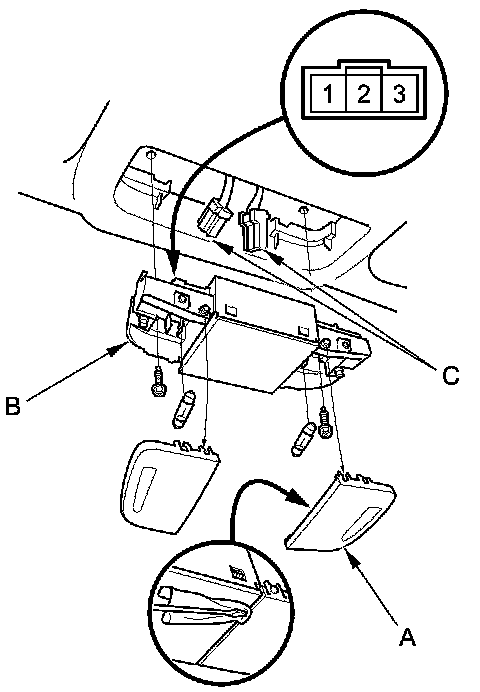

2. Carefully pry the lens (A) off with a small screwdriver.









3. Remove the screws, then remove the front individual map lights (B).

4. Disconnect the connectors (C) from the lights.

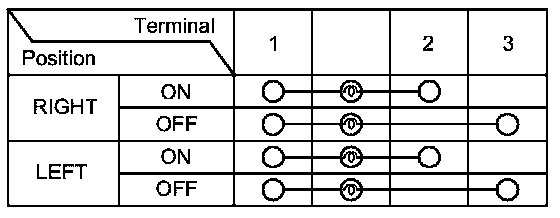

5. Check for continuity between the terminals in each switch position according to the table.





6. If the continuity is not as specified, check the bulb(s). If the bulb(s) are OK, replace the map lights.

7. Install the lights in the reverse order of removal.
