Secondary HO2S Replacement

Secondary HO2S Replacement

Special Tools Required

- Dummy Snap-On SWR2, O2 Sensor Wrench Snap-on YA8875, or equivalent, commercially available

Front Bank (Bank 2)

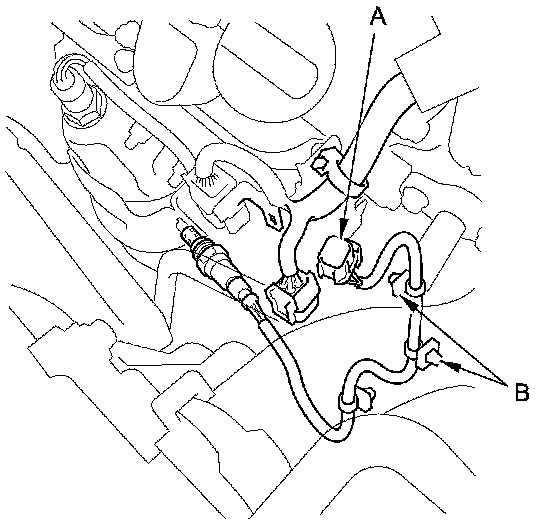

1. Disconnect the front secondary HO2S 4P connector (A), and remove the harness clamps (B).





2. Raise the vehicle on a lift.

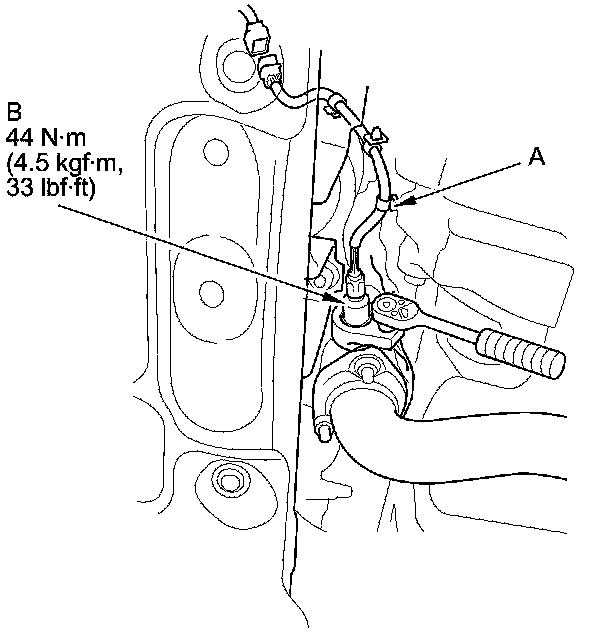

3. Remove the harness clamp (A), then remove front secondary HO2S (B).





4. Install the parts in the reverse order of removal.

Rear Bank (Bank 1)

1. Raise the vehicle on a lift.

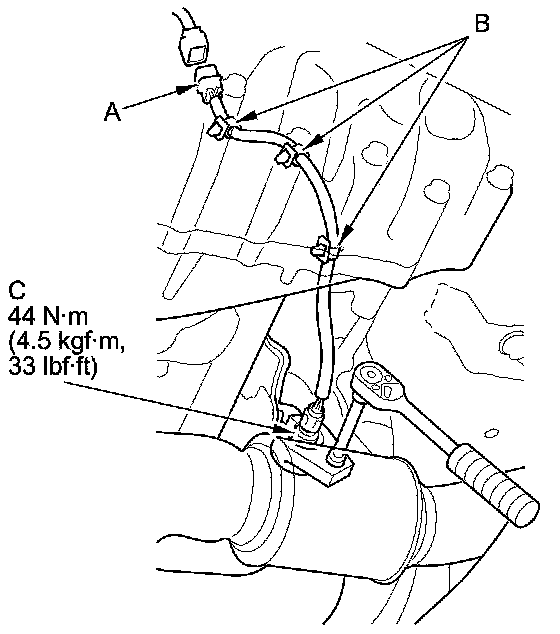

2. Disconnect the rear secondary HO2S 4P connector (A), and remove the harness clamps (B).





3. Remove rear secondary HO2S (C).

4. Install the parts in the reverse order of removal.
