Rear Power Window Switch Test




Rear Power Window Switch Test

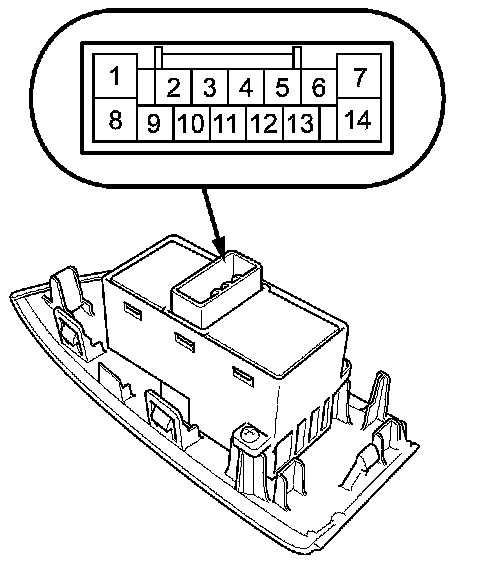

1. Remove the rear power window switch Rear Power Window Switch Replacement, and disconnect the 14P connector from the switch.

2. Test the rear power window switch:

- When the power is connected to terminal No. 2 and ground is connected to terminal No. 14. There should be continuity between terminals No. 8 and No. 1.
- When the power is connected to terminal No. 6 and ground is connected to terminal No. 14. There should be continuity between terminals No. 8 and No. 7.
- When the power is connected to terminal No. 8 and ground is connected to terminal No. 14, then push the rear power window switch to DOWN. There should be continuity between terminals No. 8 and No. 1.
- When the power is connected to terminal No. 8 and ground is connected to terminal No. 14, then pull the rear power window switch to UP. There should be continuity between terminals No. 8 and No. 7.





3. If continuity is not as specified, replace the switch Rear Power Window Switch Replacement.
