Center Console Rear Trim Disassembly/Reassembly

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to scratch the trim.

1. Remove the center console rear trim Center Console Rear Trim Removal/Installation.

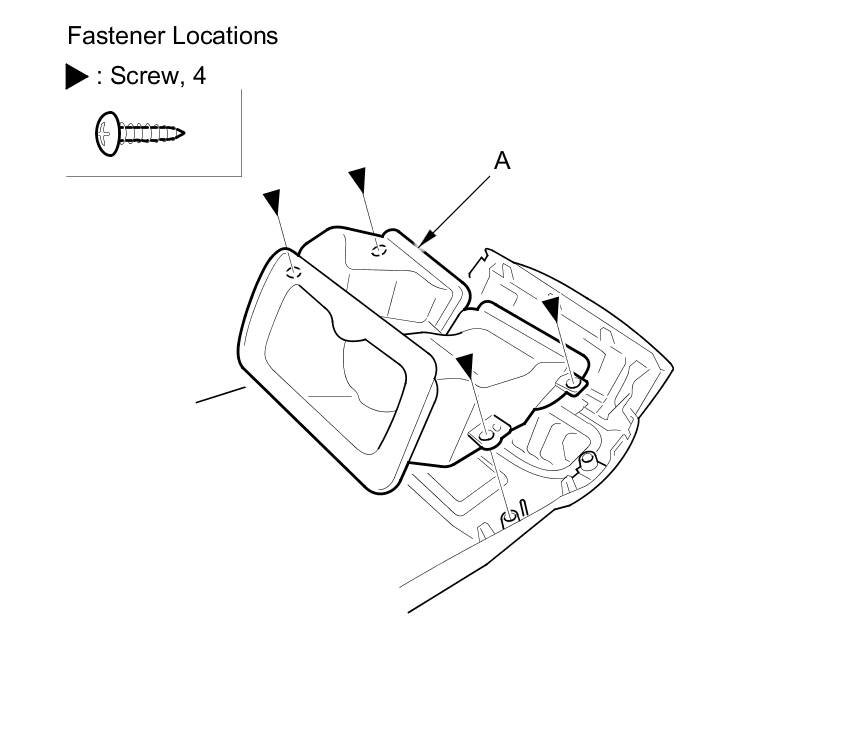

2. Remove the screws, then remove the center console duct (A).

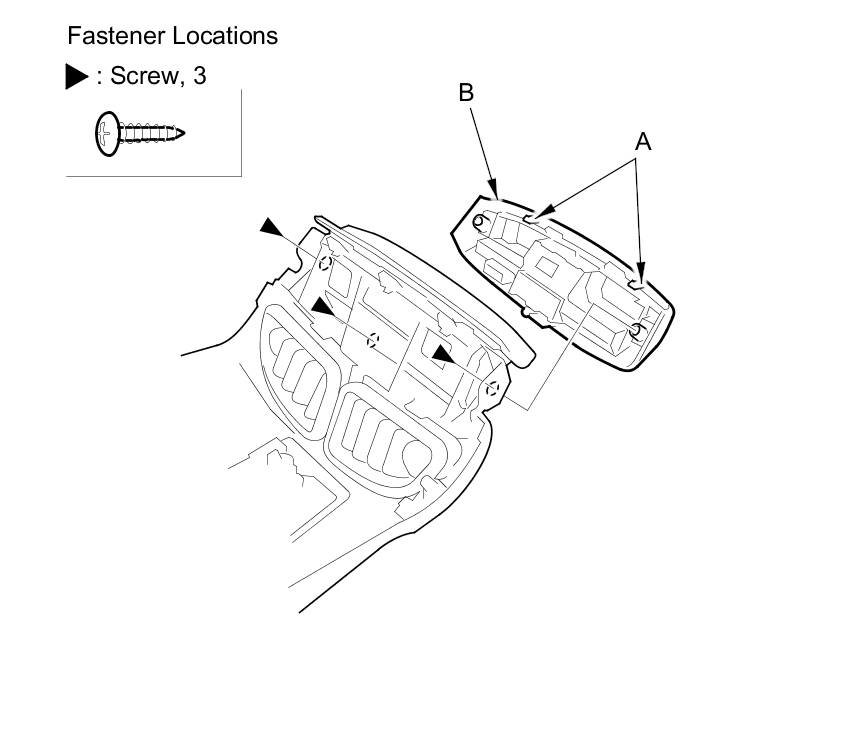

3. Remove the screws and release the hooks (A), then remove the HVAC trim (B).

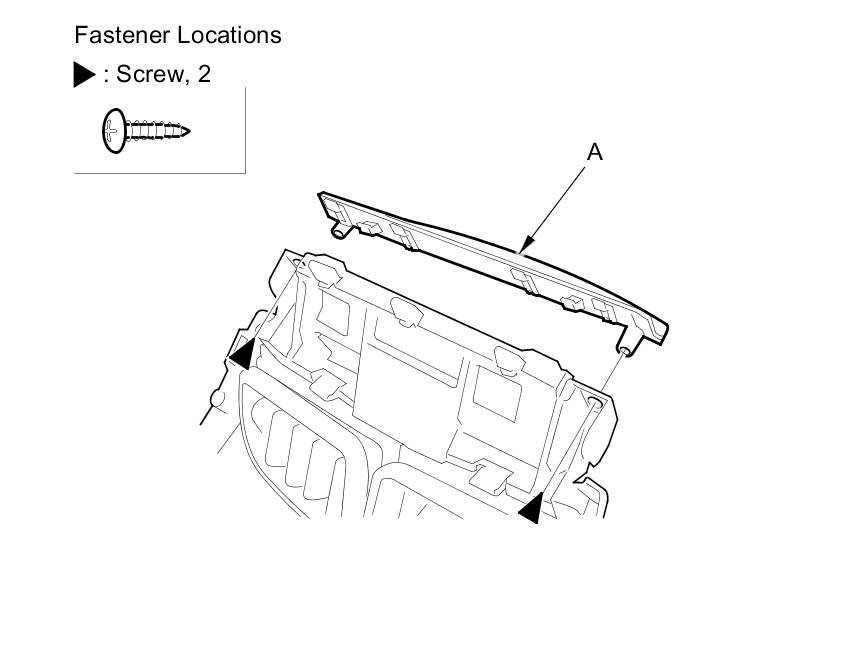

4. Remove the screws, then remove the rear upper lid (A).

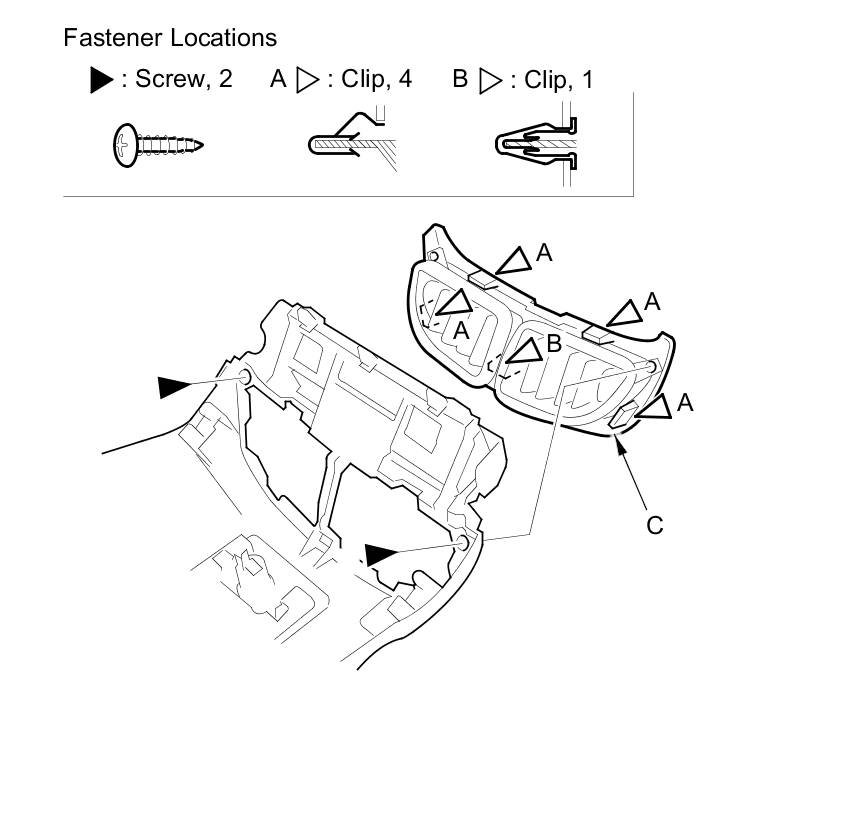

5. Remove the screws and detach the clips (A, B), then remove the rear console vent/vent trim (C).

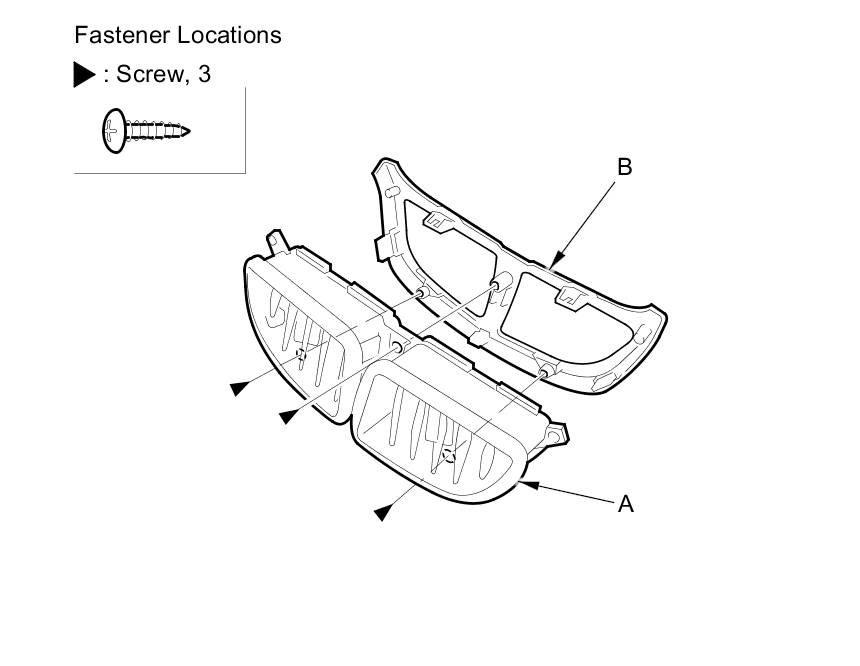

6. Remove the screws, then remove the rear console vent (A) from the rear console vent trim (B).

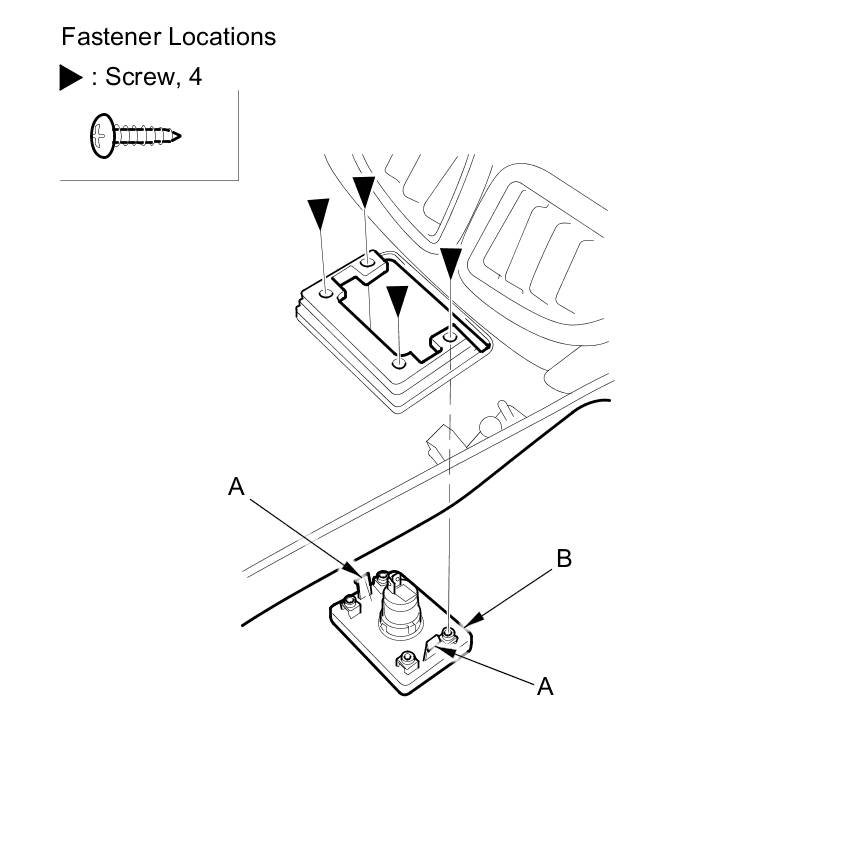

7. Without rear entertainment: Remove the screws and release the hooks (A), then remove the accessory power socket panel (B).





8. Reassemble the rear trim in the reverse order of disassembly, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
