Console Armrest Removal/Installation




Console Armrest Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

- Take care not to scratch the console.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the center console rear trim Center Console Rear Trim Removal/Installation.

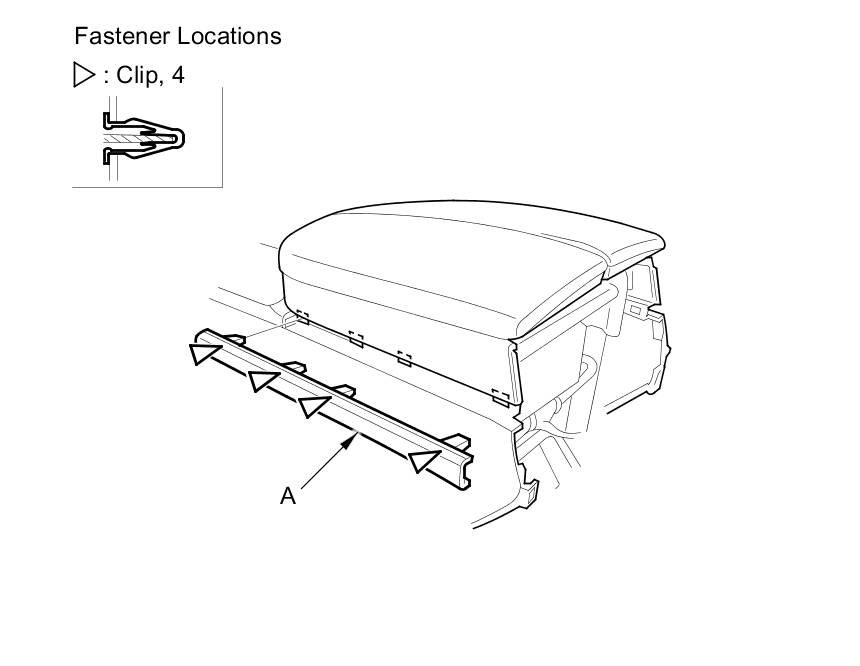

2. Starting at the rear, pull out the wood panel (A) to detach the clips, then remove it.

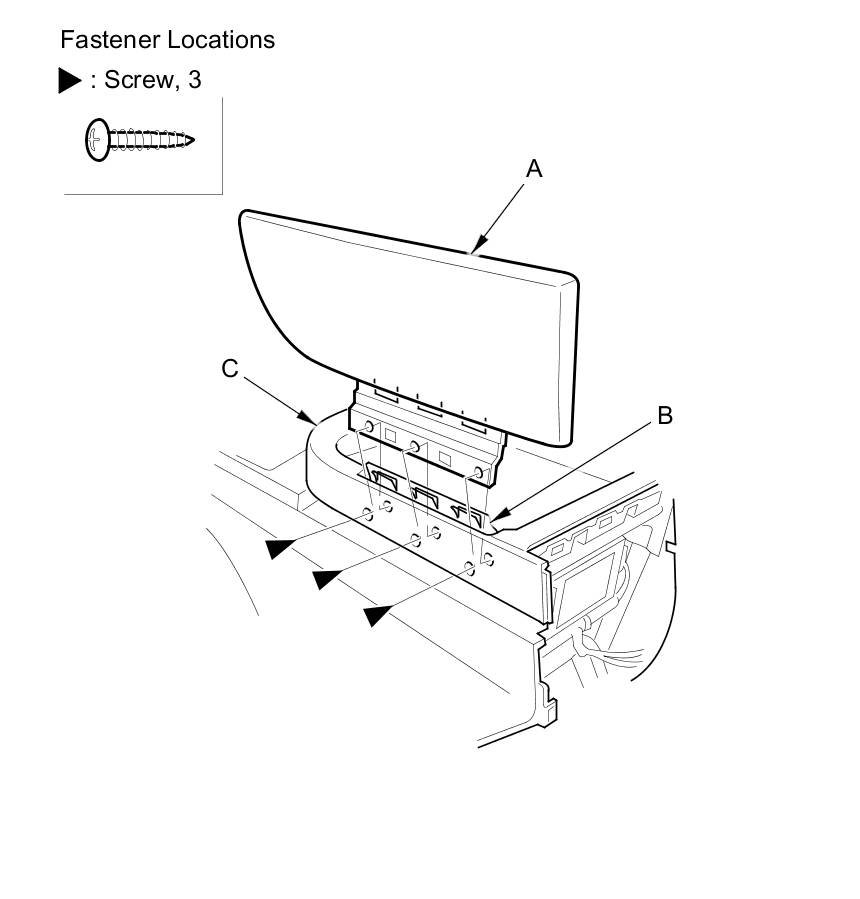

3. Remove the screws, then remove the armrest (A) from the space between the console frame (B) and the console latch trim (C).





4. Install the armrest in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
