Driver's Ambient Light Replacement
Driver's Ambient Light Replacement 1.
Remove the driver's dashboard undercover

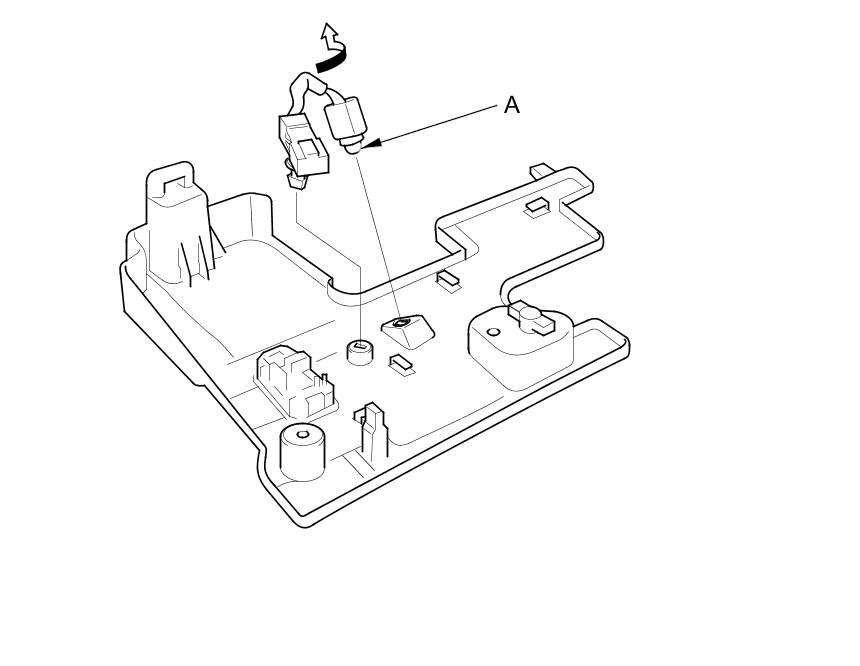

Driver's Dashboard Undercover Removal/Installation, then disconnect the 2P connector from the driver's ambient light (A).
Driver's Ambient Light : LED 2.
Turn the socket 45 ° counterclockwise to remove the light.
3.
Install the light in the reverse order of removal.
