BSI Control Unit Removal/Installation




BSI Control Unit Removal/Installation

1. Remove the left rear side trim panel Interior Trim Removal/Installation - Rear Side Area.

2. With active damper system: Remove the active damper control unit Service and Repair.

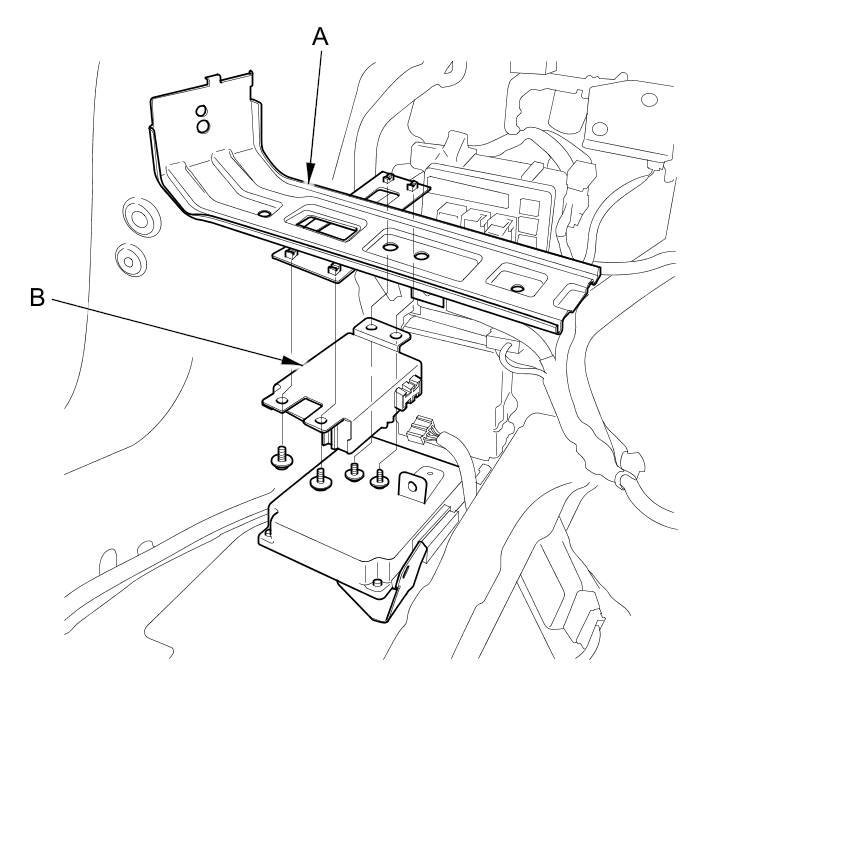

3. Remove the bolts from the rear side trim panel support bracket (A) that holds the BSI control unit (B).





4. Disconnect the 16P connector from the BSI control unit.

5. Remove the BSI control unit from the rear side trim panel support bracket.

6. Install the unit in the reverse order of removal.
