BSI Radar Unit Removal/Installation

BSI Radar Unit Removal/Installation

1. Remove the rear bumper Service and Repair.

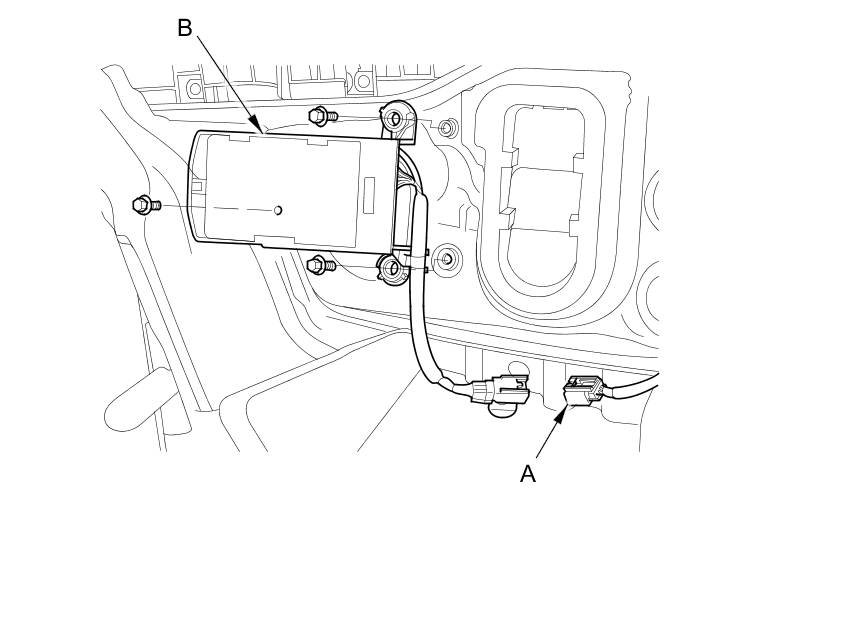

2. Disconnect the 6P connector (A) from the BSI radar unit (B).

3. Remove the bolts and the BSI radar unit.

4. Clean the surface of the BSI radar unit.

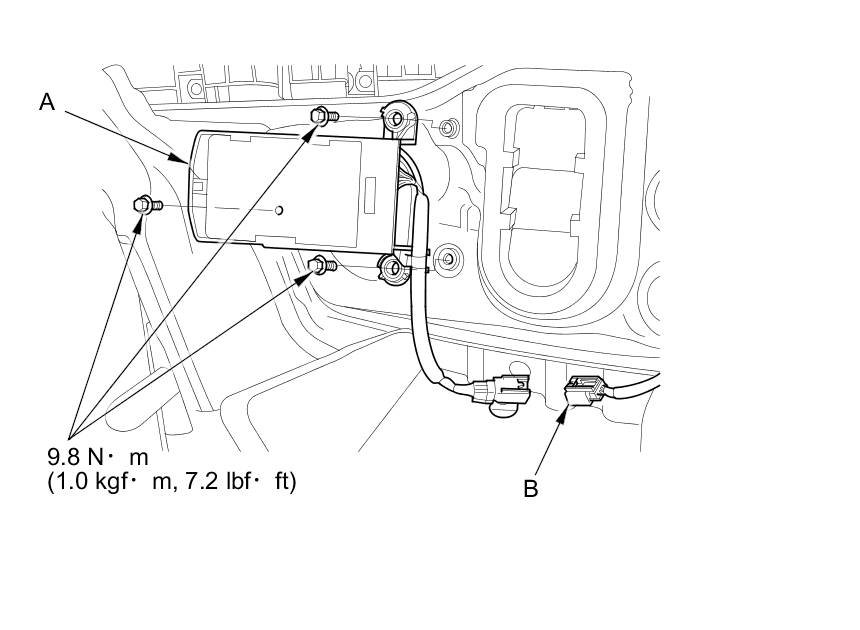

5. Install the BSI radar unit (A) with the bolts.

6. Connect the 6P connector (B) to the BSI radar unit.

7. Inspect the BSI radar unit aiming BSI Radar Unit Aiming Inspection.
