Windshield Washer Reservoir: Service and Repair
Washer Reservoir Replacement 1.
Remove the right inner fender
Front Inner Fender Replacement.
2.

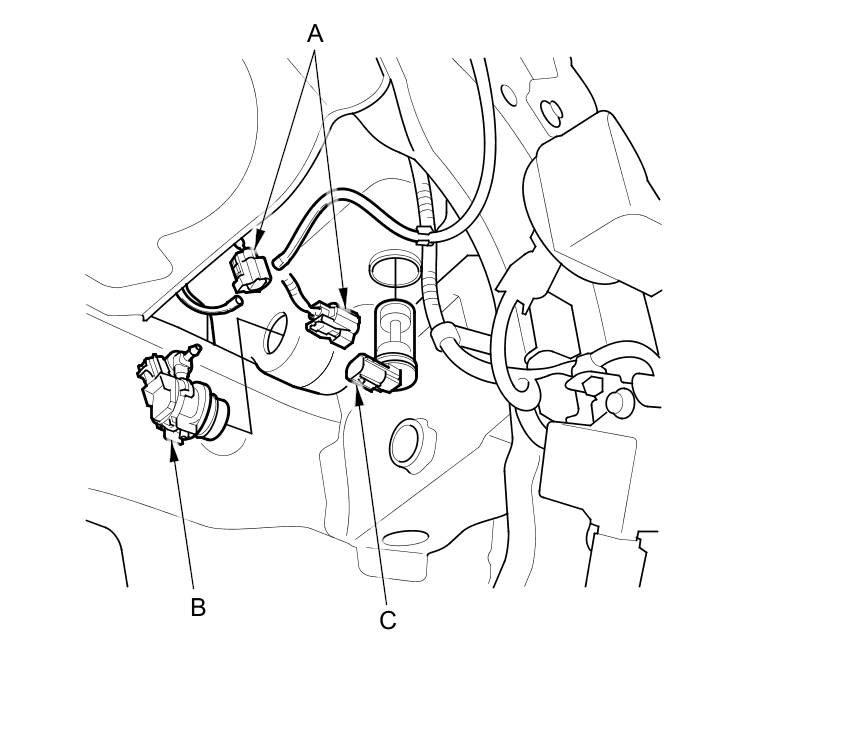

Disconnect the 2P connectors (A) from the washer motor(s) (B) and the
washer fluid level switch (C).
Washer Reservoir Capacity 3.
Disconnect the washer tubes.
4.

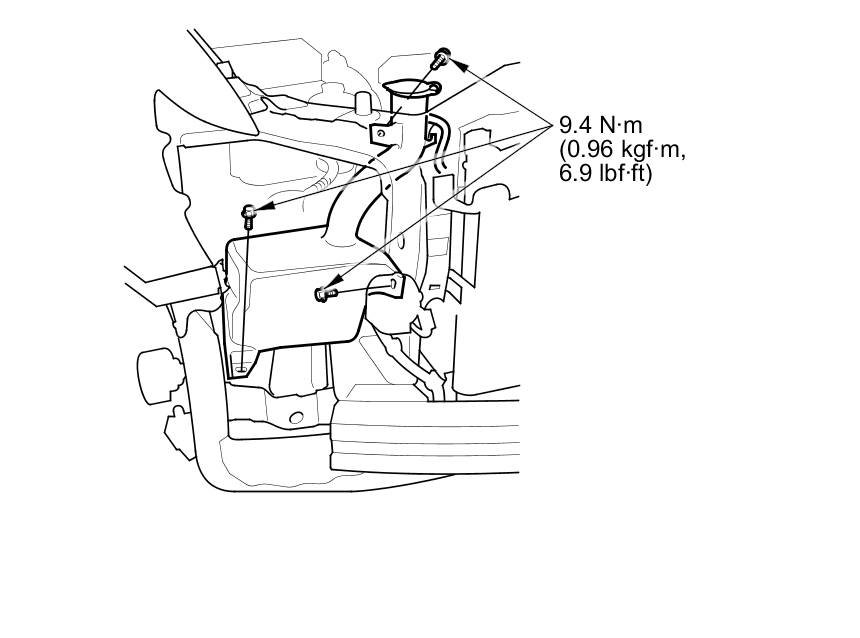

Remove the bolts and the washer reservoir.
5.
Install in the reverse order of removal. Check the washer motor operation.
