Transmission Fluid Pressure Switch C (4th Clutch) Replacement




Transmission Fluid Pressure Switch C (4th Clutch) Replacement

1. Raise the vehicle on a lift, or apply the parking brake, block both rear wheels, and raise the front of the vehicle. Make sure it is securely supported.

2. Remove the splash shield Service and Repair.

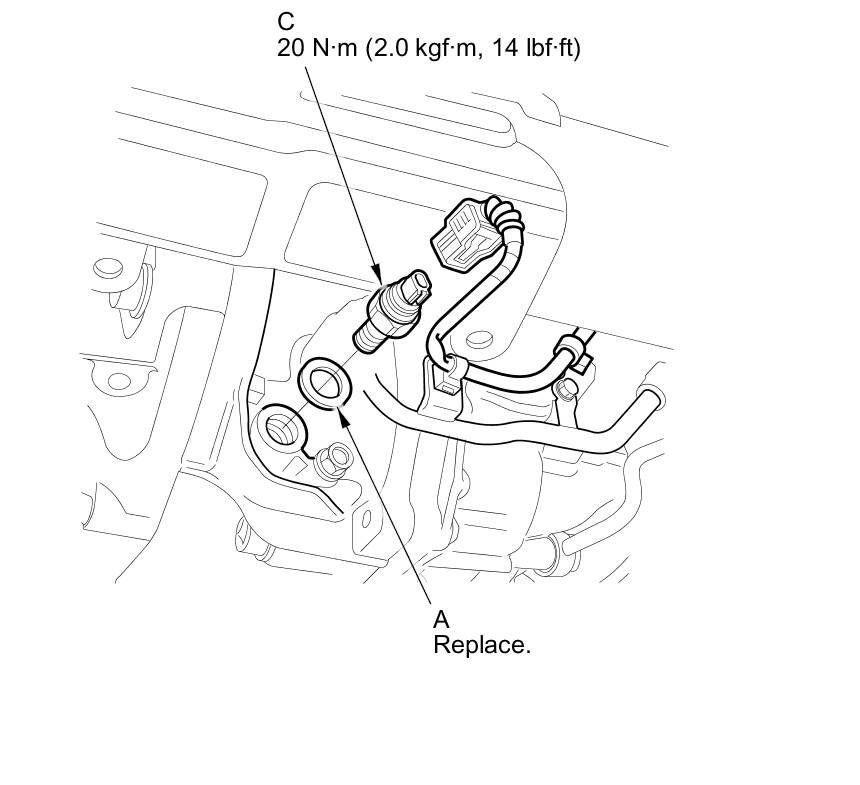

3. Disconnect the transmission fluid pressure switch C (4th clutch) connector, and remove transmission fluid pressure switch C (4th clutch) and the sealing washer (A).






4. Install a new transmission fluid pressure switch C (4th clutch) and a new sealing washer, and tighten the switch.

5. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

6. Install the splash shield Service and Repair.
