Verifying Customer Complaint

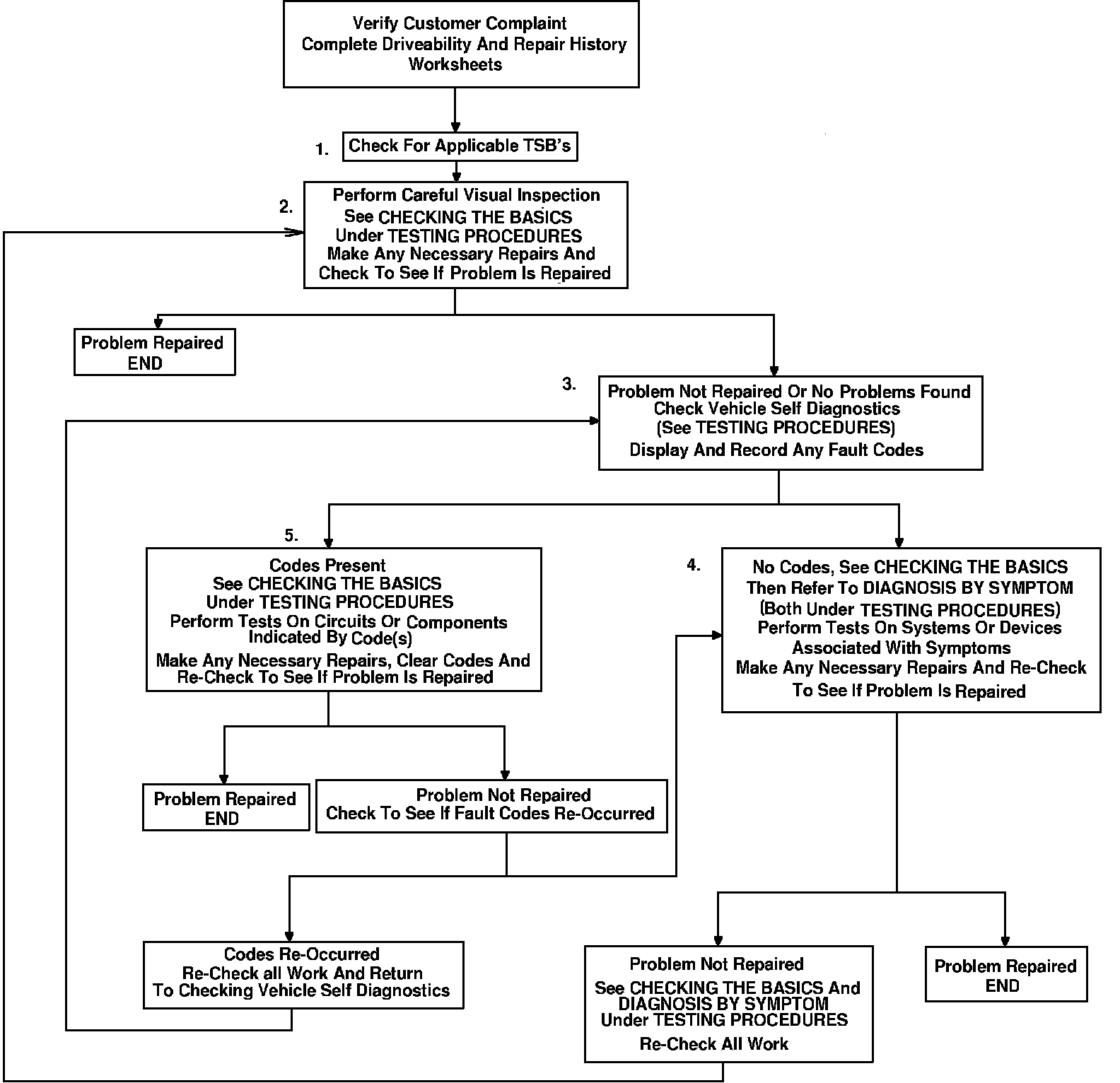

Flow Of Diagnosis:

After verifying the customers complaint, the flow of diagnosis can help you find problems and avoid chasing "ghosts".
1. Technical service bulletins may contain important manufacturer's information.
2. A careful visual inspection can often locate problems without further testing (see CHECKING THE BASICS under TESTING PROCEDURES).
3. Fault codes may lead directly to accurate diagnosis and repair.
4. This list of symptoms and their possible causes can aid in diagnosing problems that do not store trouble codes.
5. Tests are described which will identify problems in specific circuits. See COMPONENT AND CIRCUIT TESTING under TESTING PROCEDURES.

Driveability Worksheet:

DRIVEABILITY WORKSHEET

Repair History (1 Of 2):

Repair History (2 Of 2):

REPAIR HISTORY WORKSHEET
