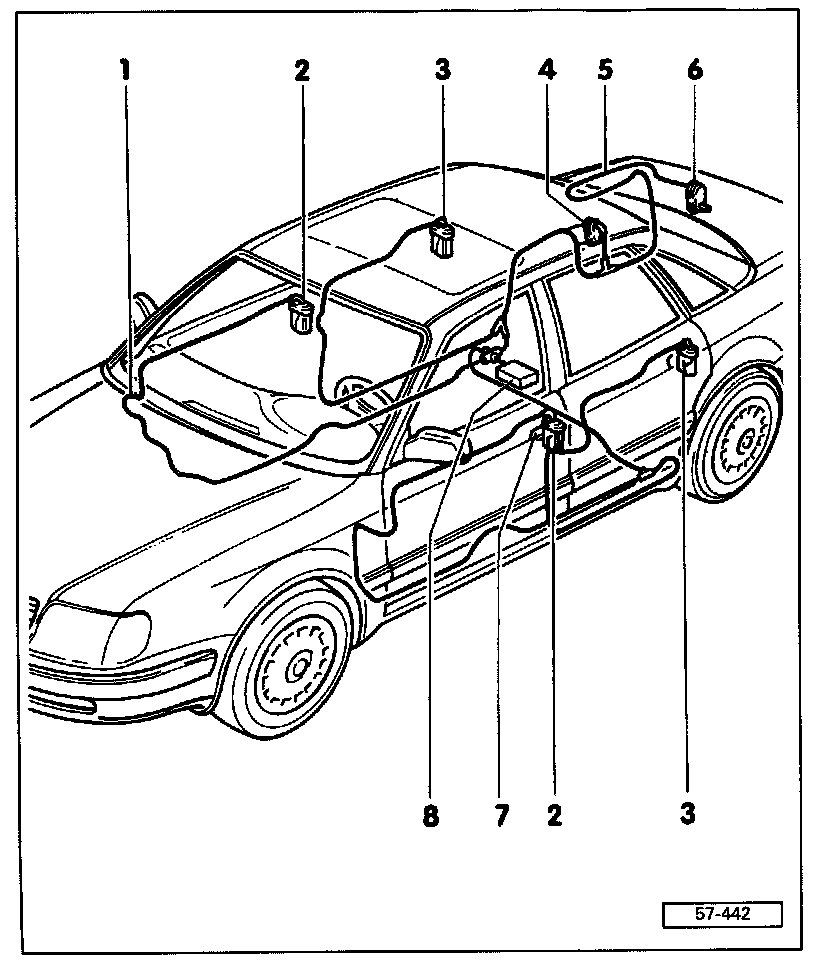

Power Locks: Locations
Central Locking System 1
Pressure/vacuum hose
2
Activators right/left front doors
3
Activators - right/left rear doors
4
Activator - gas flap
5
Pressure/vacuum line for rear lid
6
Activator - rear lid
7
Door handle
•
Microswitch for vehicles with central locking and/or anti-theft warning system
8
Central locking system pump
