Power Backrest, Assembly

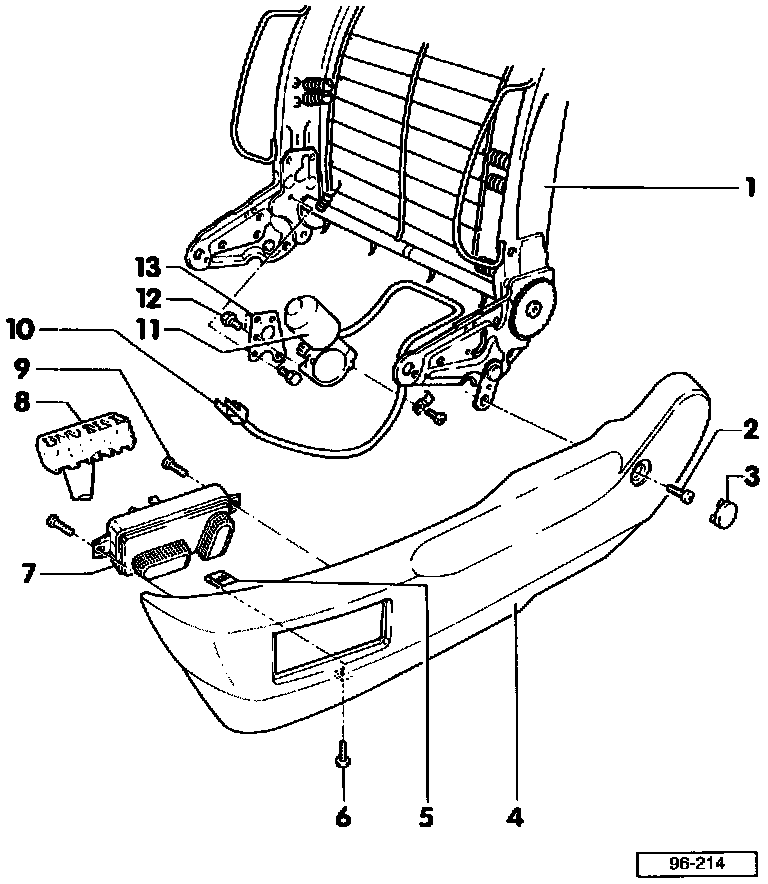

Power Backrest, Assembly:
1 - Backrest frame
2 - Mounting screws, side trim
- Screwed into backrest adjustment bracket
3 - Cover cap
- Pry off
4 - Side trim
5 - Clip
6 - Mounting screw
- For side trim -4-
7 - Seat adjustment switch
8 - Plug connector
- For switch -7-
- Refer to appropriate wiring diagram for pin location
9 - Mounting screw
- For switch -7-
10 - 2-point connector
- Refer to appropriate wiring diagram for pin locations
11 - Motor, backrest adjustment
12 - Screw
13 - Bracket
- For backrest adjustment
