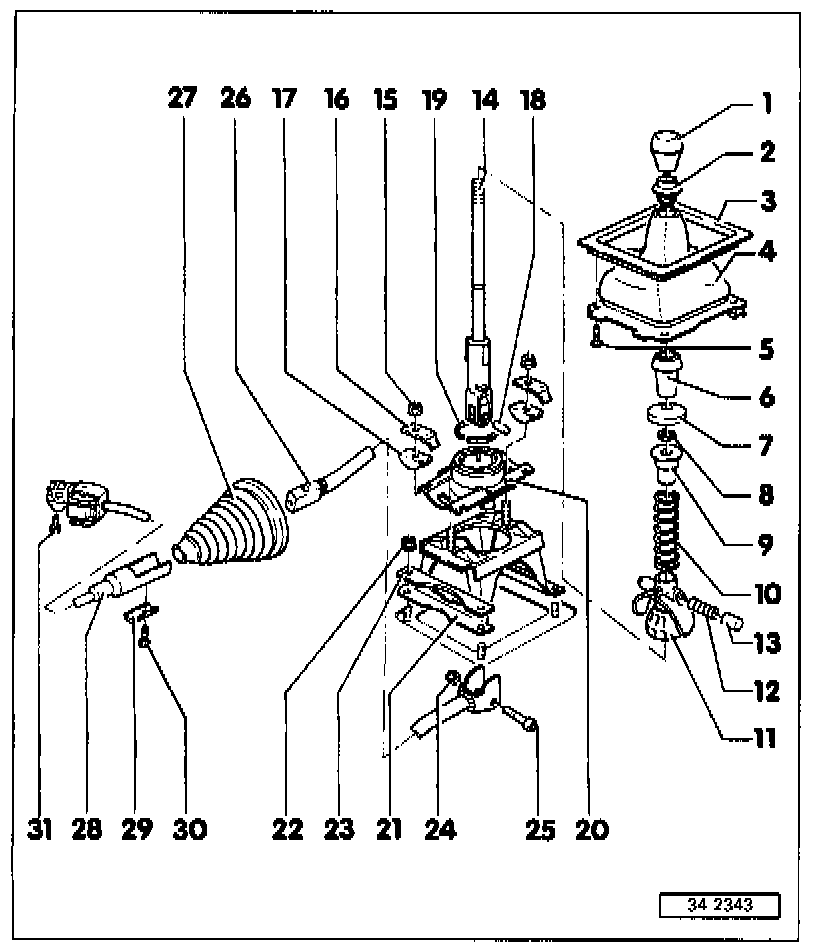

Shift Linkage, M/T

1. Shift knob
2. Bushing
3. Retaining frame
4. Cover
5. Bolt
6. Bushing
7. Collar
8. Circlip
9. Spacer bushing
10. Spring
11. Ball stop
12. Spring
13. Bushing
14. Shift lever
15. Nut
16. Leaf spring
17. Connecting piece
18. Spacer tube
19. Circlip
20. Ball housing
21. Shift linkage mounting
22. Nut
23. Reinforcing plate
24. Self-locking nut
25. Bolt
26. Rear shift rod
27. Boot
28. Shift rod with joint
29. Clamp
30. Bolt
31. Self-locking bolt
