Auxiliary Relay Panel

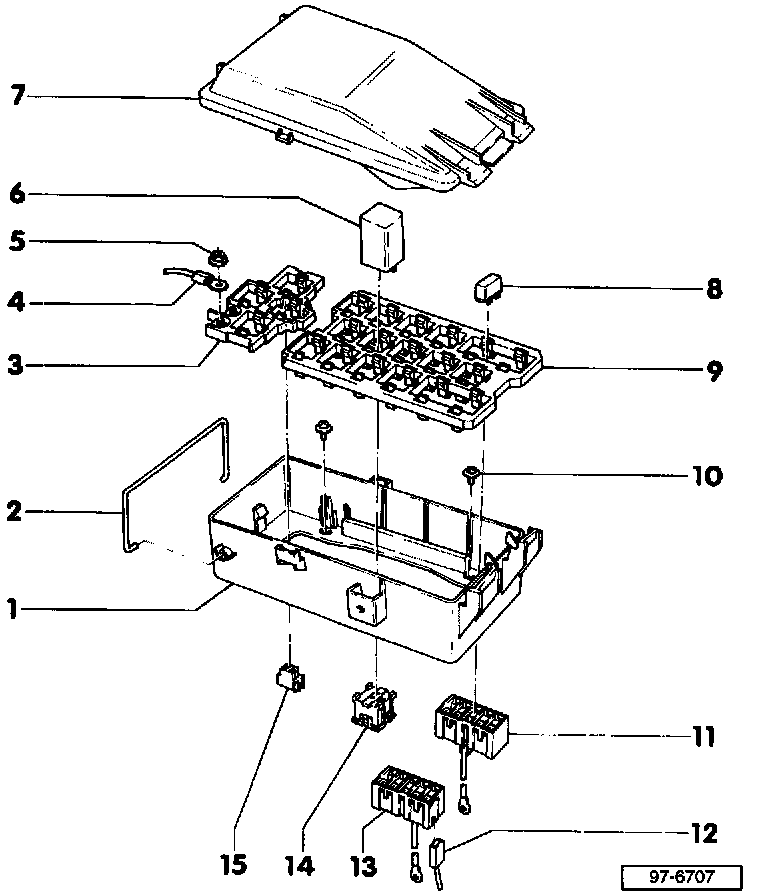

Auxiliary Relay Panel I, Assembly:

1 - Housing
2 - Retaining clip
3 - Relay holder
4 - Electrical wire
5 - Nut
6 - Relay
7 - Cover
8 - Circuit breaker
9 - Relay holder
10 - Screw
11 - Circuit breaker holder (black)
12 - Circuit breaker connector
13 - Circuit breaker holder (brown)
14 - Relay socket
15 - Diagnostic Link Connector (DLC)
