Power Seat, Electrical Components

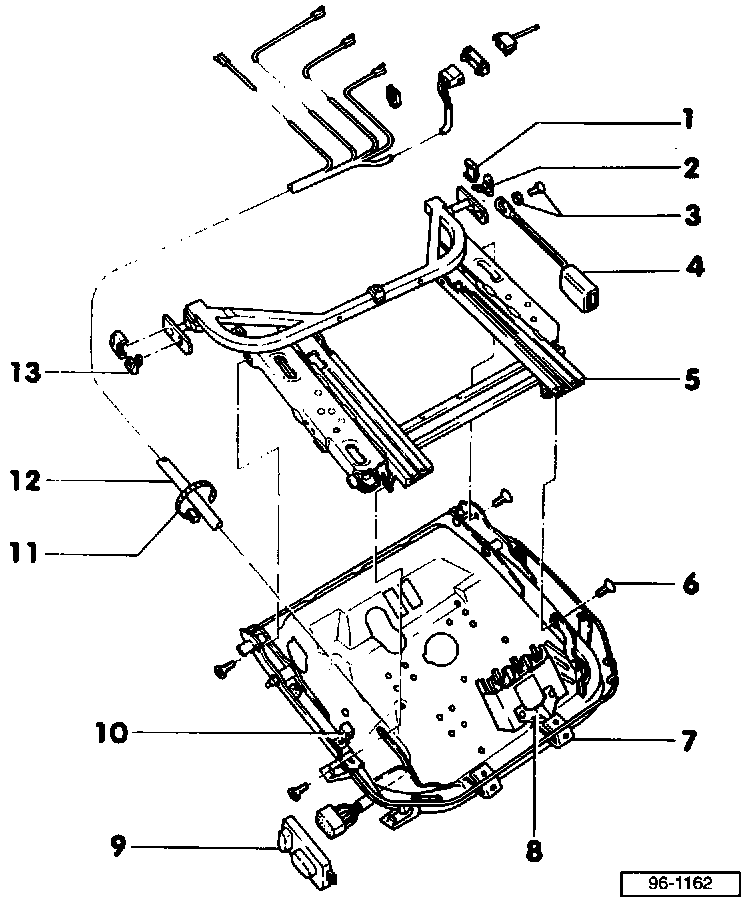

Power Seat, Assembly: Power Seat, Electrical Components:

1 - Slide
2 - Buffer
3 - Seat belt mounting pieces
4 - Seat belt
5 - Seat frame
6 - Torx screw, seat pan
7 - Seat pan
8 - Control unit, seat memory
9 - Switch unit
10 - Voltage supply relay
11 - Tie wrap
12 - Wiring harness
13 - Thrust piece
