Instrument Panel Interior Temperature Sensor, Replacing

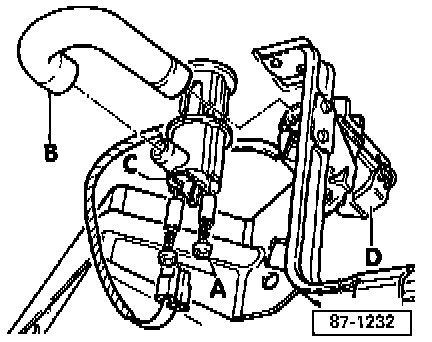

Removing and installing instrument panel interior temperature sensor -G56-
- Remove glove compartment.
- Remove 2 screws -A-.





- Remove hose -B- from sensor -C-.
- Remove wire connector.
- Remove temperature sensor -C-.
Install in reverse order of removal.

- Ensure hose -B- fits tightly on sensor -C- and fan -D-.
