Heater Control Valve: Service and Repair

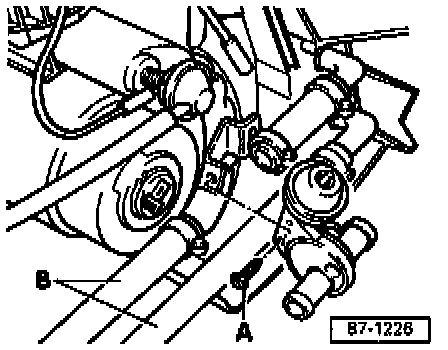

Engine coolant shutoff valve -
Remove plenum tray.
-
Loosen cap on coolant expansion tank to release pressure.
-
Remove coolant hoses -B- leading to
heater core and plug hose connections.
-
Loosen hose clamps on intake and outlet of valve.
-
Remove hoses from valve.
-
Remove screw -A- and remove valve.
