Front Interior

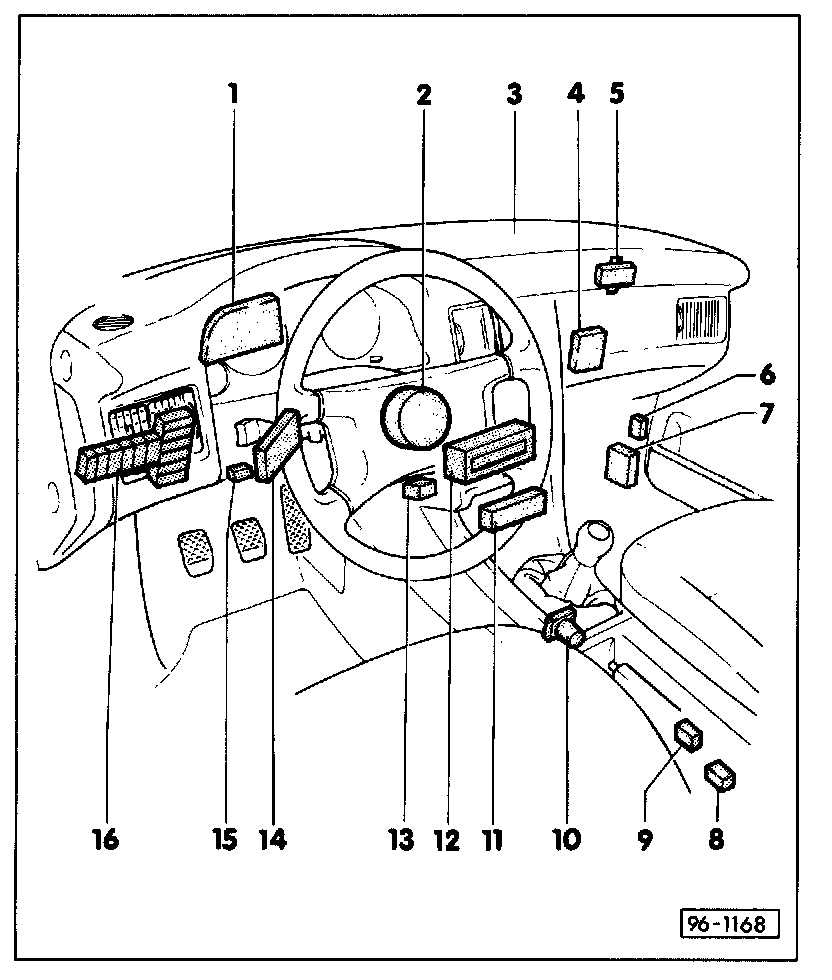

Component and Control Module Locations





1 Computer display unit -J128-, Auto-Check system -J189-, Mini-Check system control module -J268-, Outside air temperature display -G106-

2 Driver's side airbag igniter -N95-

3 Instrument panel interior temperature sensor -G56-

4 Multiport Fuel Injection (MFI) Engine Control Module (ECM) -J192-

5 Cruise control, control module -J213-

6 Not applicable for USA/Canada

7 Not applicable for USA/Canada

8 Shiftlock warning buzzer -H9-

9 Parking brake warning light switch -F9-

10 Shift lock solenoid -N110-

11 Airbag triggering unit -J178-

12 A/C control head -E87-

13 Center console instrument lighting booster -J166-
• With auxiliary instruments only

14 Transmission Control Module (TCM) -J217-

15 Emergency flasher relay -J2-

16 Auxiliary relay panel
• With connector station and fuse adapters
