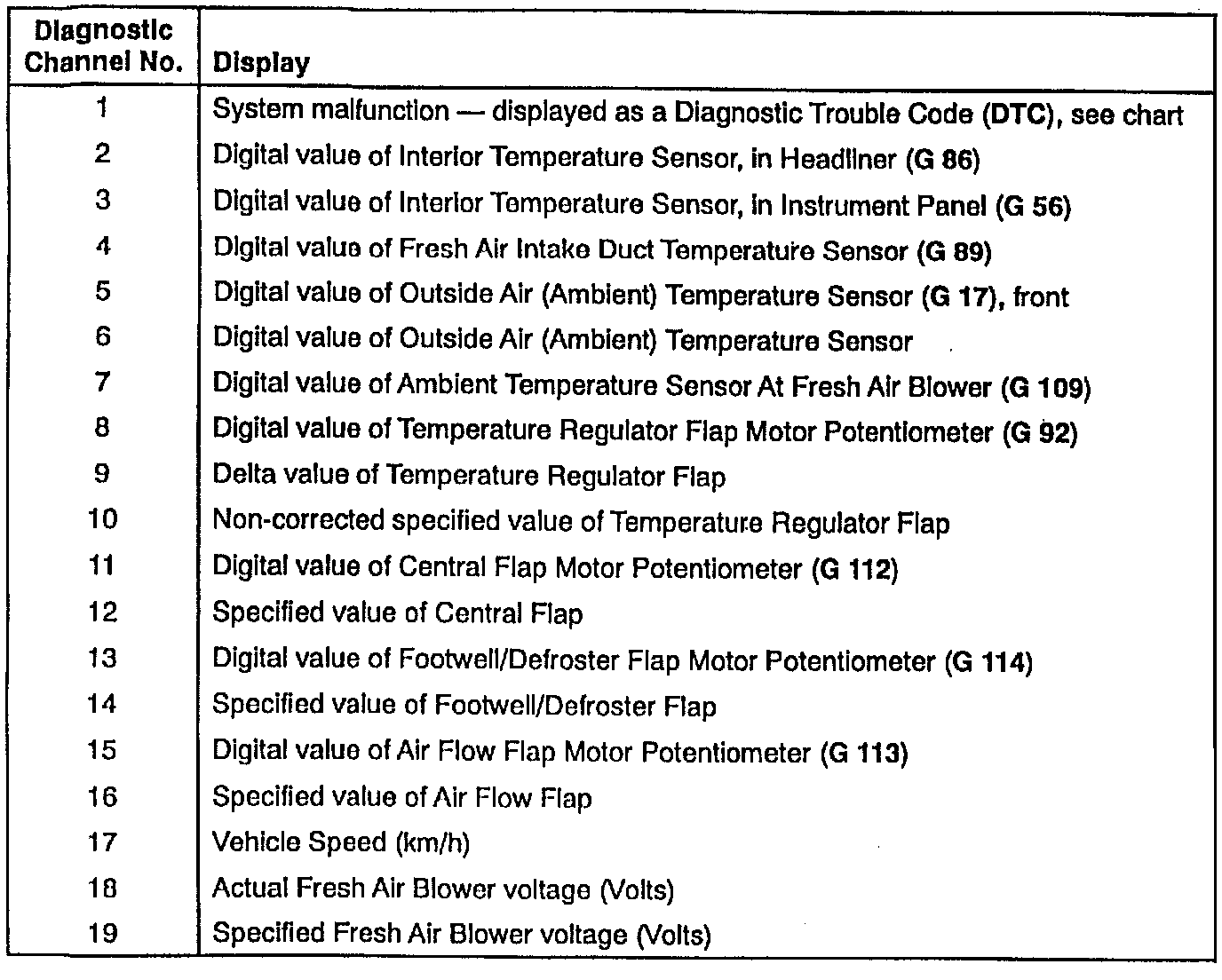

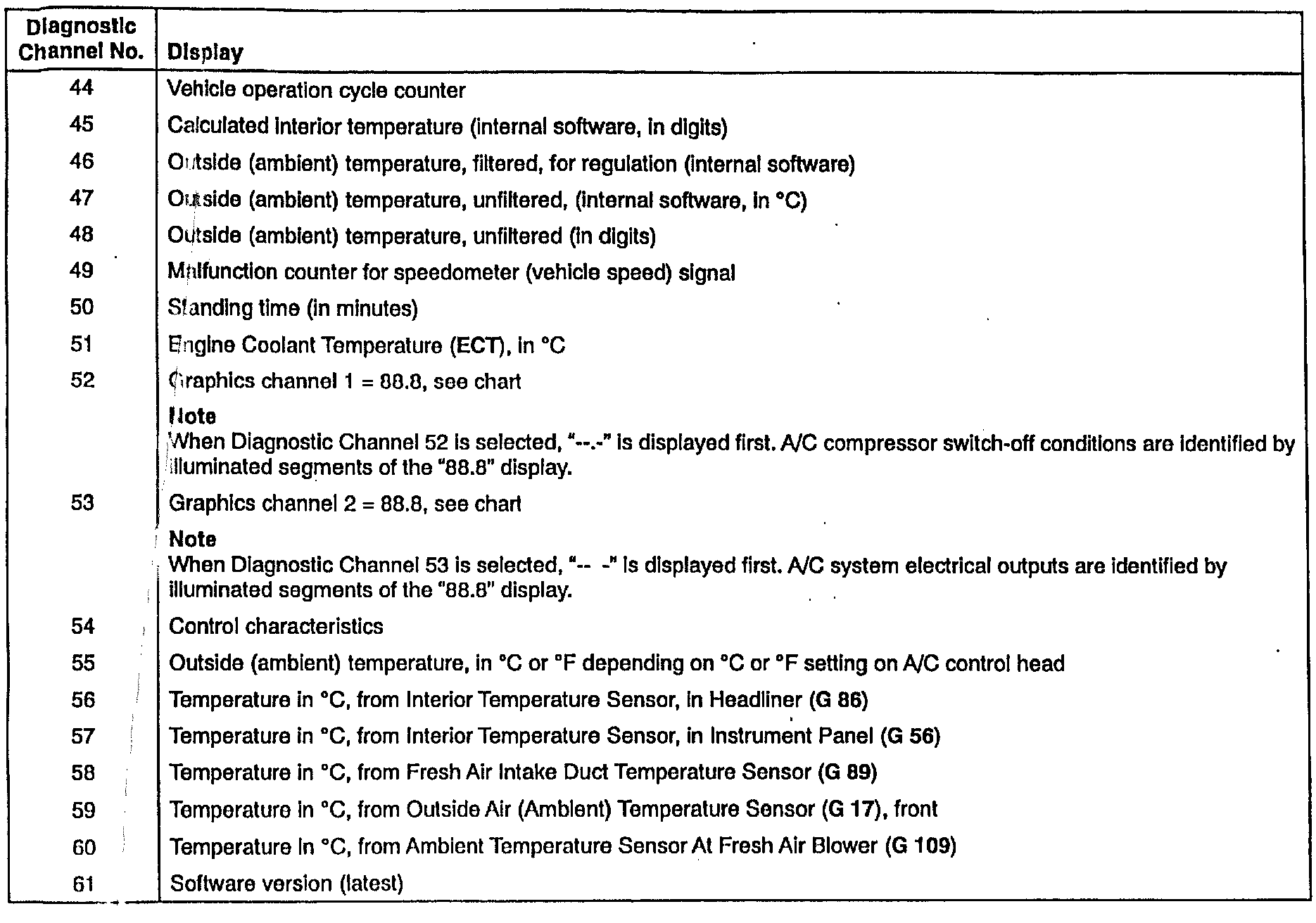

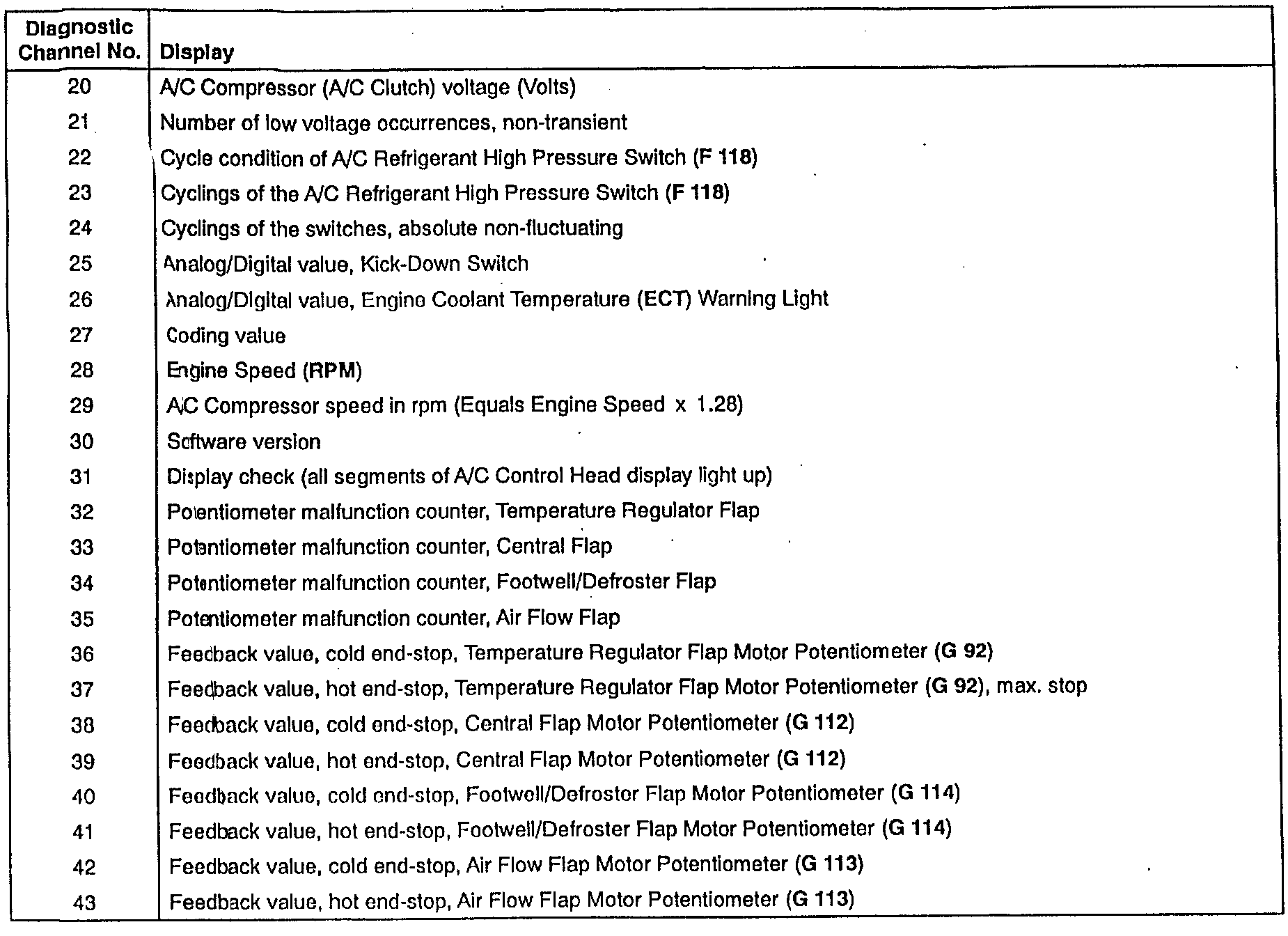

On-Board Diagnostic (OBD) Display, Channels 1-61

Note











Air Flow Flap Motor (V 71) and Potentiometer (G 113) are not installed in USA/Canada vehicles. Disregard values displayed for these components.
