A/T - Shift Points Too Early/Late

Group: 37

Number: 93-10

Date: December 10, 1993

Subject:

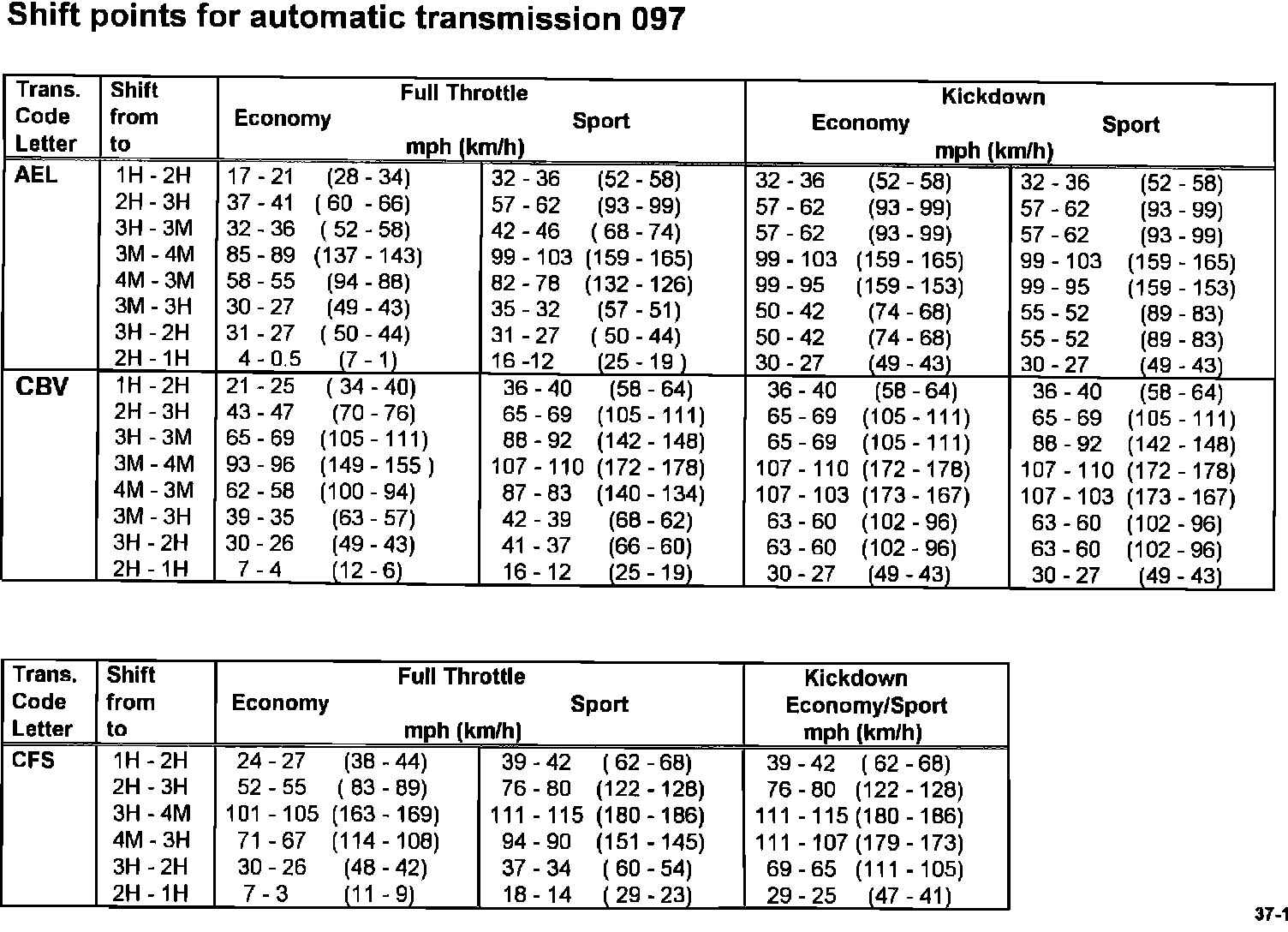

Shift Points for Automatic Transmissions

Model(s):
80/90
from 1990 m.y.

Condition

Transmission changes into next higher or lower gear too early or too late.

Service





When checking shift points, note that the speedometer reading may be at the upper or lower end of the permissible tolerance range.

Use the VAG 1551 Scan Tool to read the Diagnostic Trouble Code (DTC) Memory. See the Repair Manual or Repair Manual microfiche.

Note
On vehicles with the Dynamic Shift Program, a full throttle test is not possible.
