Test Step 1

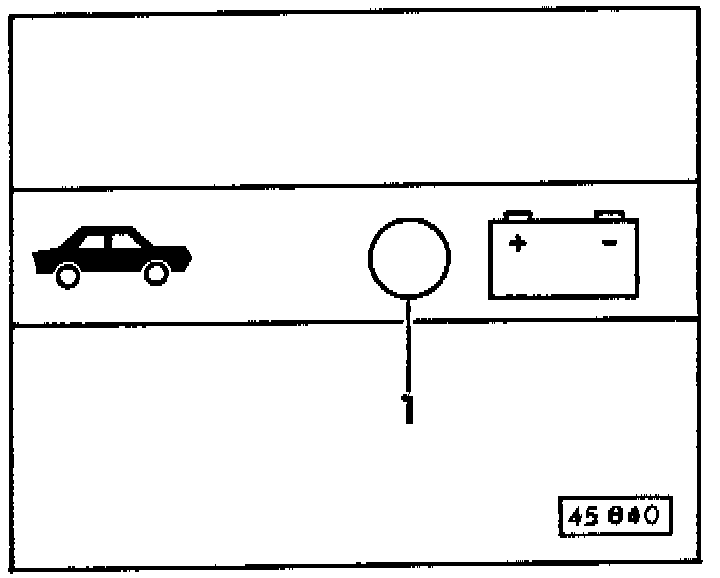

Subject of test: Voltage supply to
ABS Control Module J104
Subject of test:^
Ground connection to
ABS Control Module J104
^

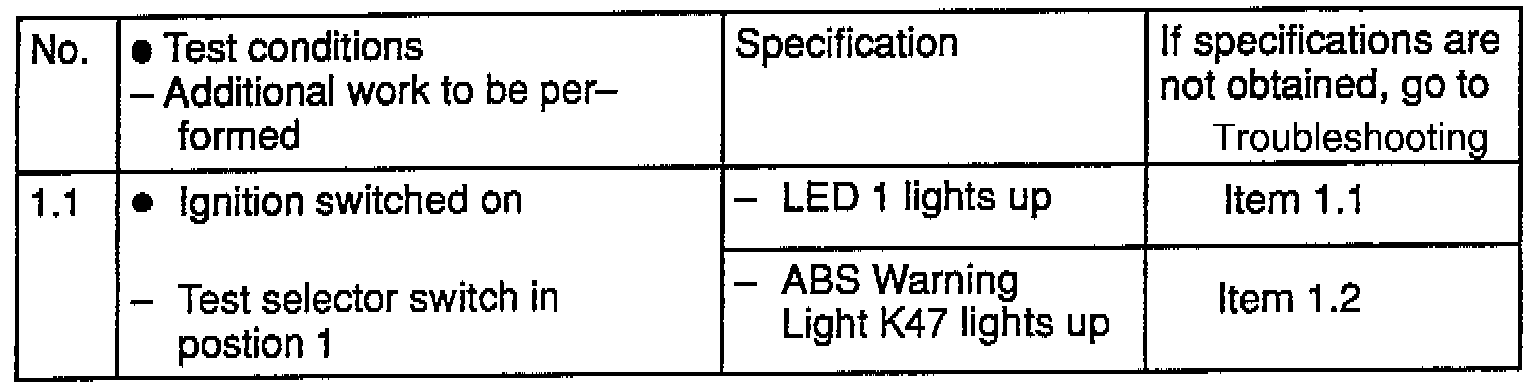

ABS Warning Light K47
^
Inlet/outlet valves in ABS
Hydraulic Unit N55 (resistance)
Note:

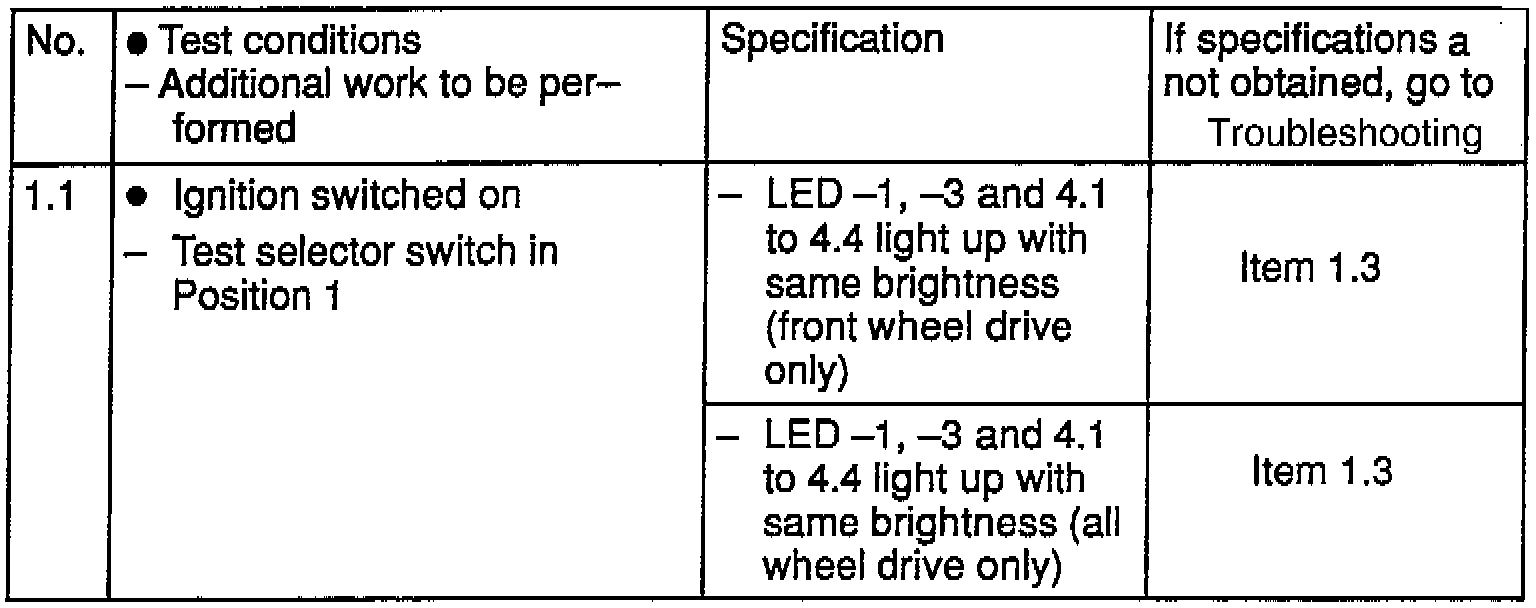

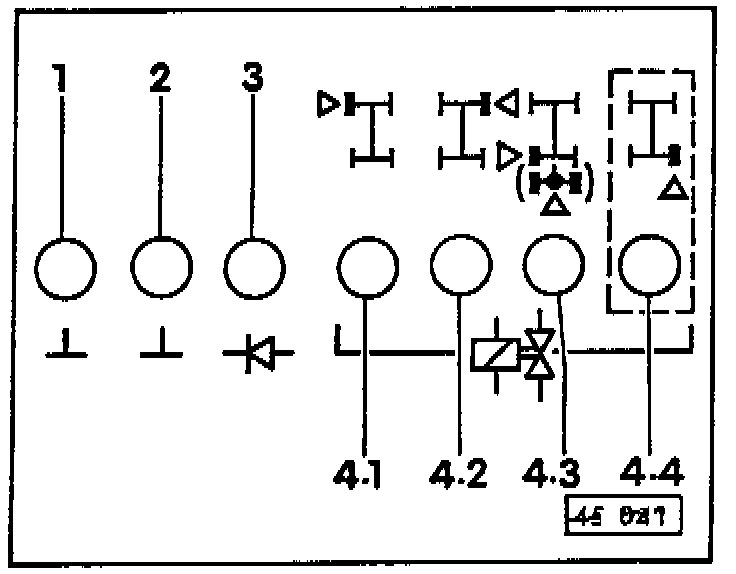

If one of the LEDs lights up weaker (from -1, -3 and 4.1 and 4.1 to 4.4), it indicates contact resistance.
Check related connectors and wiring according to wiring diagram.
