Cylinder Head Assembly

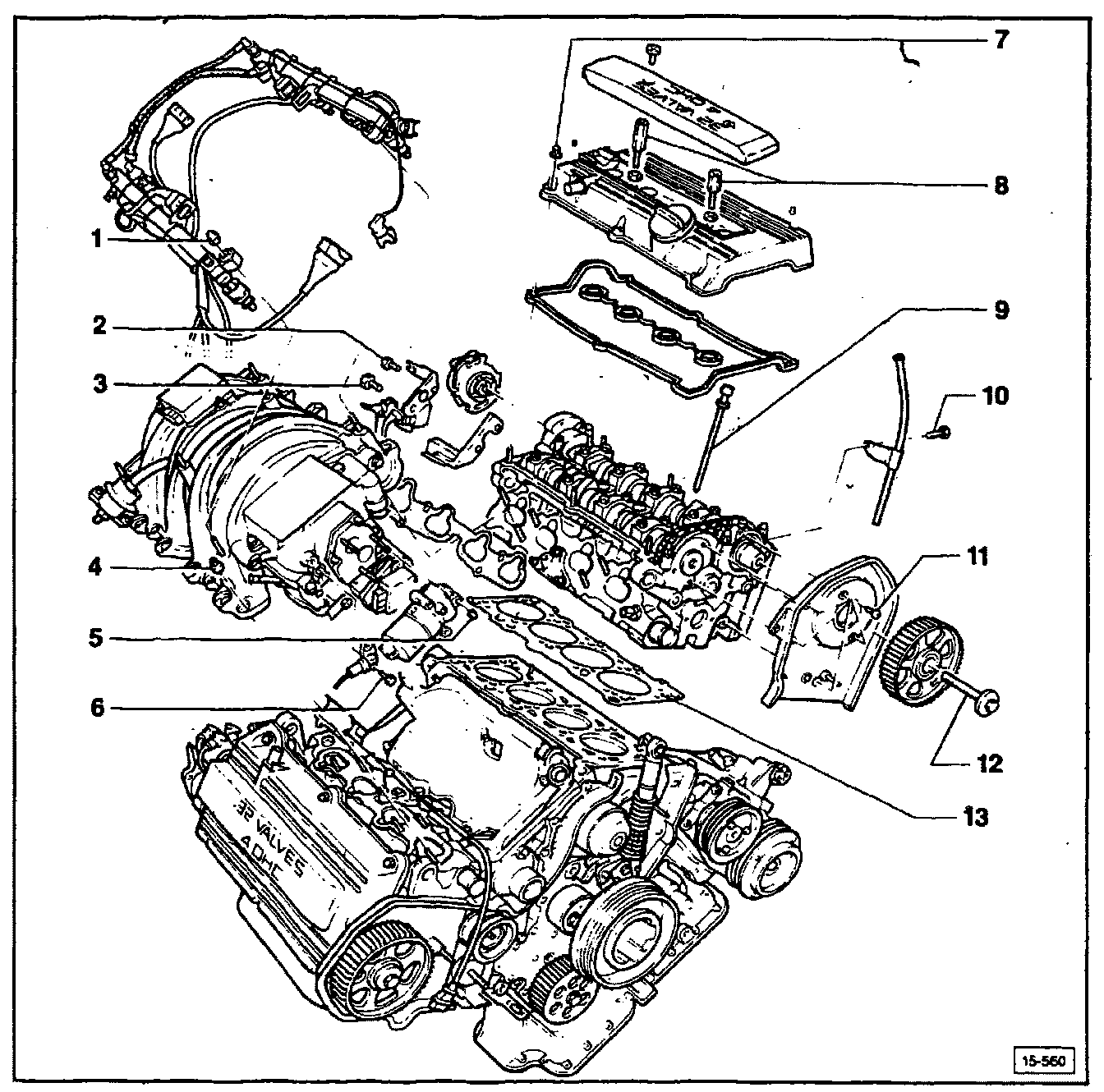

Cylinder head. removing/installing
1 - Cap nut
10 Nm (7 ft lb)
2 - 25 Nm (18 ft lb)
3 - 45 Nm (33 ft lb)
4 - Intake manifold tightening sequence
1st stage 15 Nm (11 ft lb)
2nd stage 25 Nm (18 ft lb)
5 - Cap nut - 10 Nm ( 7ft lb)
6 - 10 Nm (7 ft lb)
7 - Cap nut - 10 Nm (7 ft lb)
8 - 10 Nm (7ft lb)
note position and length of hexagon bolts
9 - Cylinder head bolts
10 - 25 Nm (18 ft lb)
11 - 10 Nm (7 ft lb)
12 - Sprocket bolt - 45 Nm (33 ft lb)
13 - Cylinder head gasket
^ word 'oben' must face cylinder head
