Blower Motor: Service and Repair

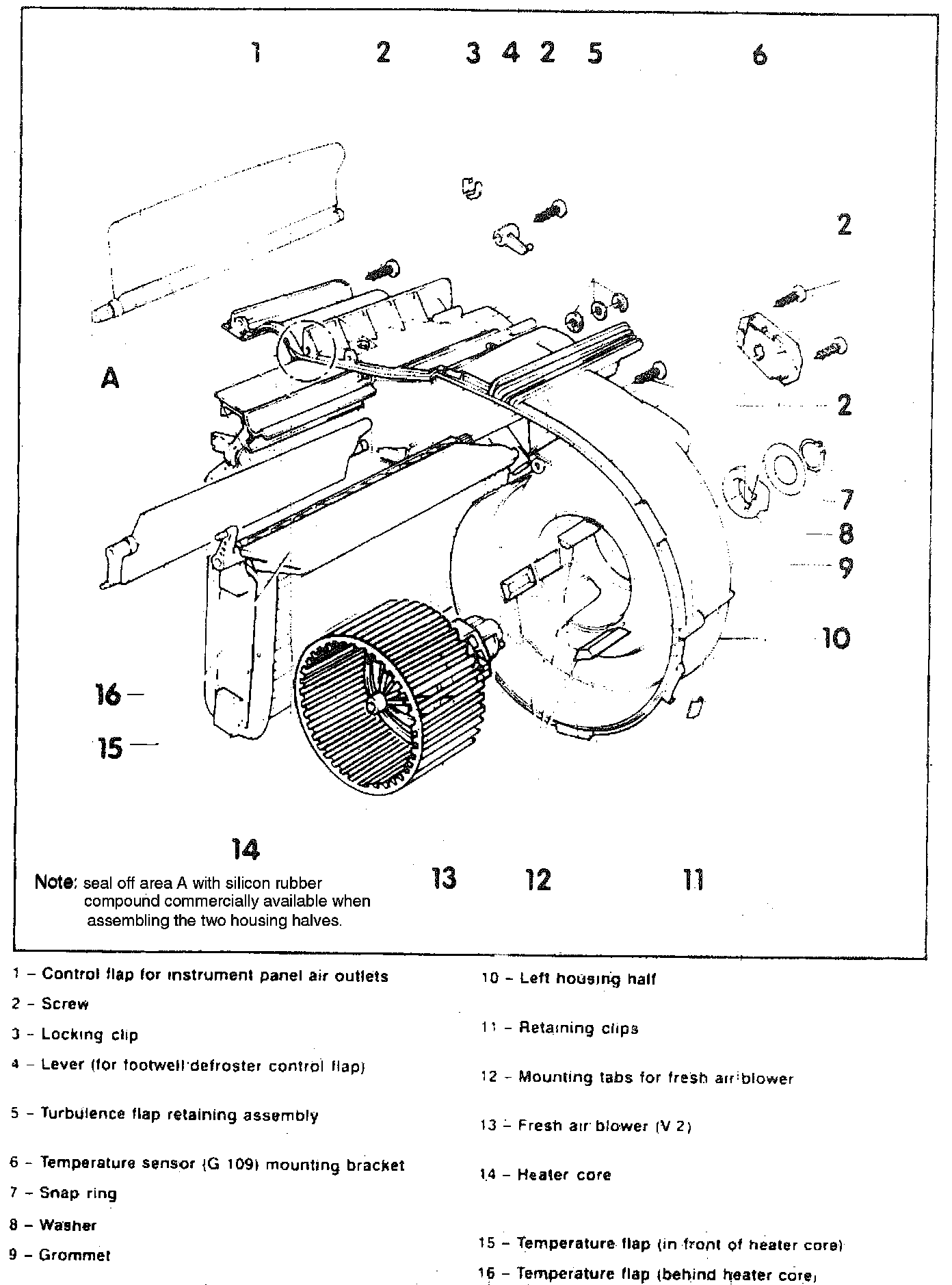

Fresh air blower -V2-, removing/installingExploded View:
Fresh Air Blower:
Remove heater box
Remove blower cooling hose
Remove lock ring, stop washer and grommet
Remove blower from housing
Note: Before installing fresh air blower guides, lubricate with Vaseline. Install
blower motor using black electrical connection only.
