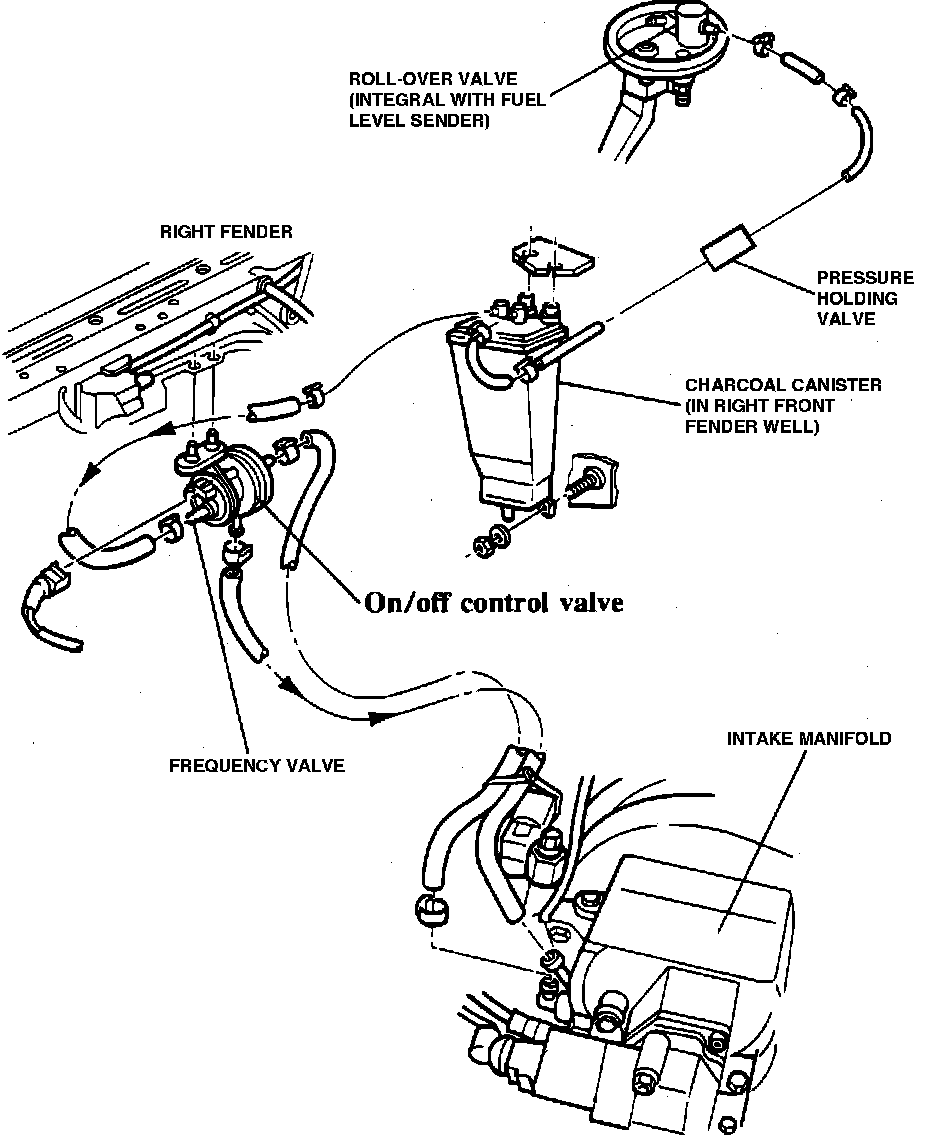

Evaporative Emissions System: Locations
Evaporative Control System:
CHARCOAL CANISTER
Right front fender well
CANISTER FREQUENCY VALVE
Right fender, next to coolant reservoir.
CANISTER ON/OFF VALVE
Combined with frequency valve on right fender.
CRANKCASE VENTILATION
Back of engine, left side of valley.
PRESSURE HOLDING VALVE
front center of fuel tank.
ROLL-OVER VALVE
In fuel gauge sender, top of fuel tank.
