Central Lock System Pump - Connector Terminal I.D.

Group: 57
Number: 94-05
Date: Aug. 1, 1994

Subject:

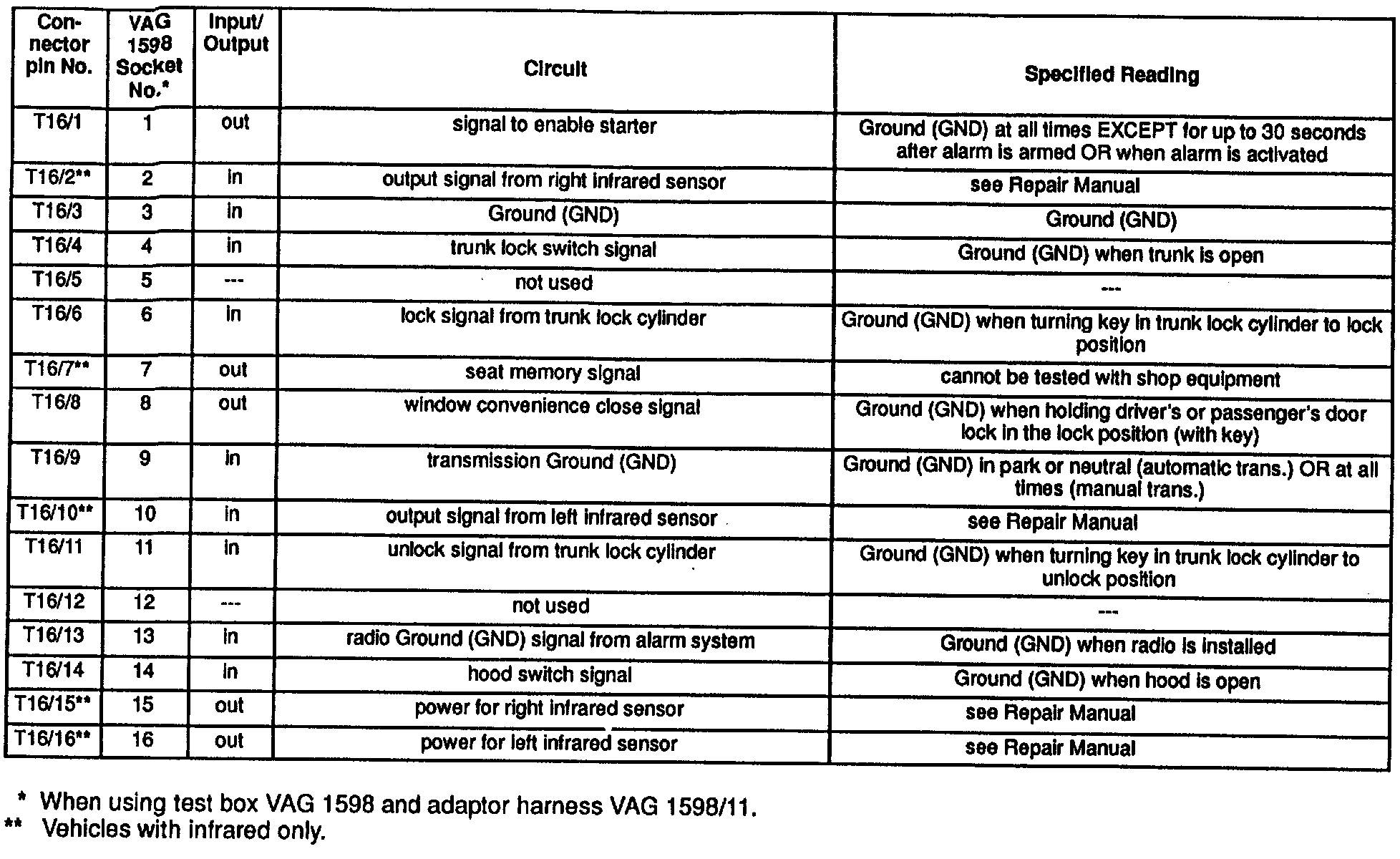

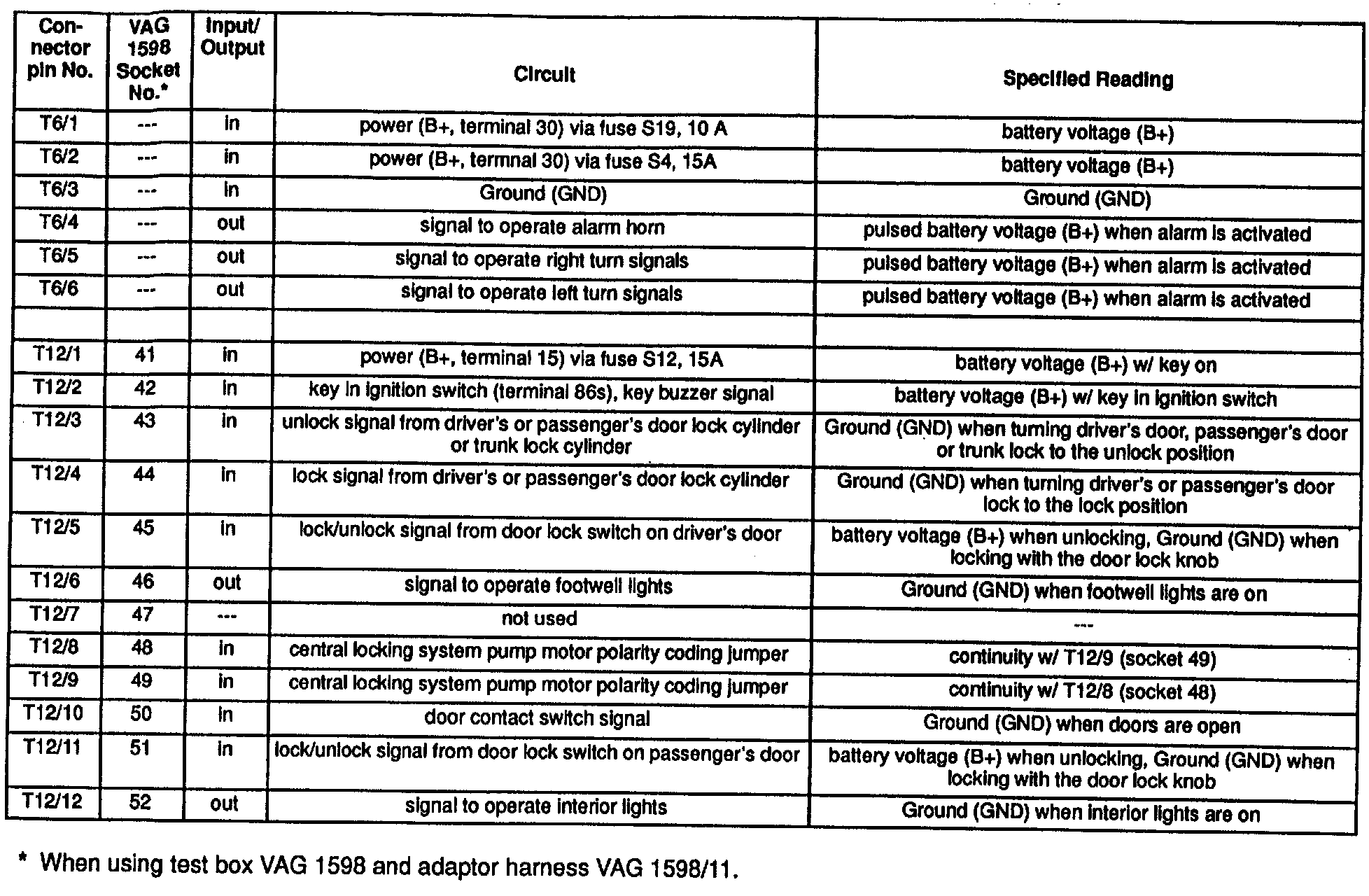

Central locking system pump, connector terminal identification

Model(s):
90 From m.y. 1993
100, S4 From m.y. 1992

This Technical Bulletin contains new information for the central locking system pump, connector terminal identification.














The pages are formatted for the 100/S4 and Audi 90 Repair Manuals and will be intergrated during the next update.

Page numbers reflect numbering sequence in the Repair Manuals.
