Tracks 116-124

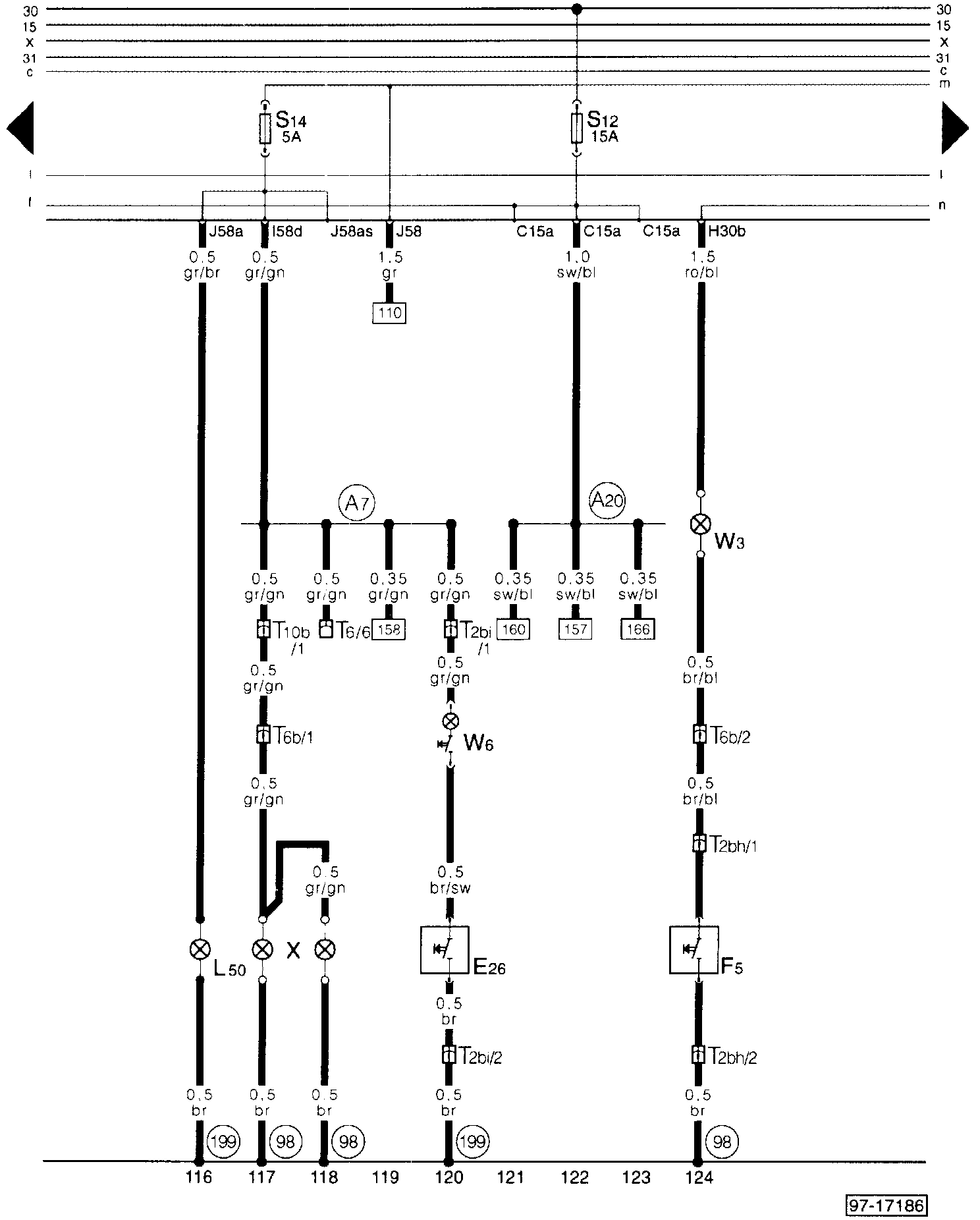

Engine/Glove Compartment Light - Track 116-124:

COMPONENTS
E26 - Glove Compartment Light Switch
W6 - Glove Compartment Light
L50 - Heater Fan Switch Illumination Light
x - License Plate Light
F5 - Luggage Compartment Light Switch
W3 - Luggage Compartment Light


CONNECTORS
T2bh - Wire Connector, double, white, in rear lid
T2bi - Wire Connector, double, black, near glove compartment li9ht
T6 - Wire Connector, 6 Point, black, connector station in auxiliary relay panel
T6b - Wire Connector, 6 Point, black, in luggage compartment, left
T10b - Wire Connector, 10 Point, brown, connector station in auxiliary relay panel


GROUND CONNECTION

NOTE: Grounds connections are indicated on the diagram by a numeric code inside a circle.

98 - Ground connection, in rear lid wiring harness
199 - Ground connection -3-, in instrument panel wiring harness

HARNESS SPLICE

NOTE: Harness splices are points inside a wiring harness where two or more wires are crimped and/or soldered together. Harness splices are indicated on the diagrams by an alphanumeric code inside a circle.

A7 - Plus connection (58 D1), in instrument panel wiring harness
A20 - Wire connection (15a), in instrument panel wiring harness
