With Exhaust Gas Recirculation

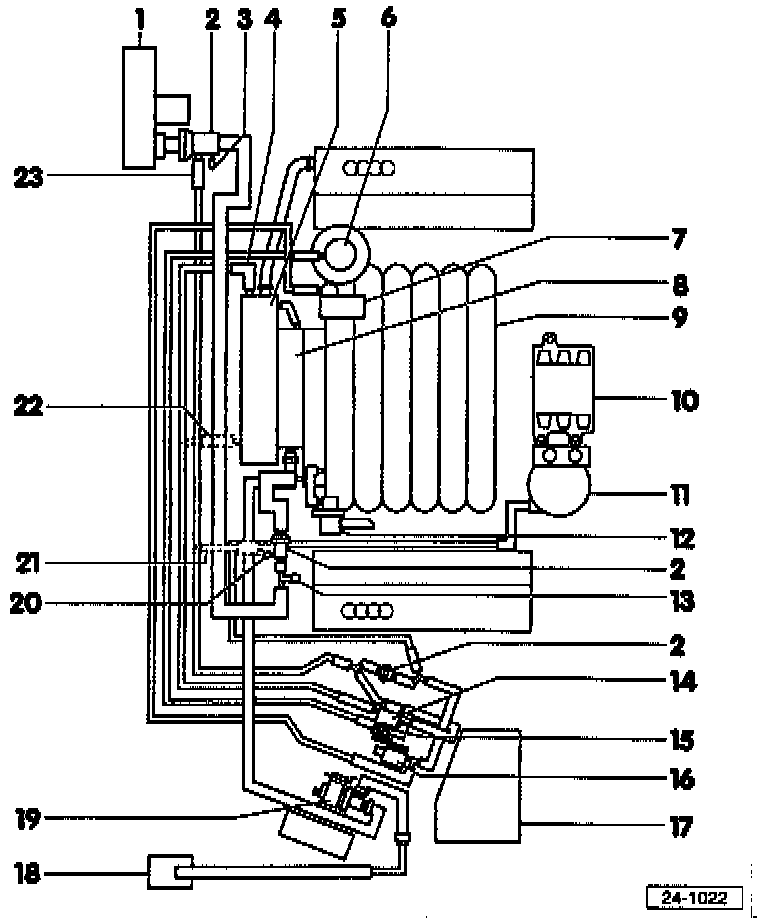

VACUUM SYSTEM DIAGRAM

Vacuum Hose Diagram:

Manual transmission vehicles with EVAP system and Exhaust Gas Recirculation (EGR)
1 - Vacuum brake booster
2 - Check valve
3 - Vacuum connection for A/C and/or differential lock
4 - Vent line from Exhaust Gas Recirculation (EGR) valve
5 - Noise damper
6 - Exhaust Gas Recirculation (EGR) valve
7 - Vacuum unit for intake manifold change-over valve
8 - Throttle body
9 - Intake manifold
10 - Ignition coils
11 - Vacuum reservoir for intake manifold change-over valve
12 - Fuel presure regulator
13 - T-connector
^ Sealed at fork with cap
14 - EGR vacuum regulator solenoid valve
15 - Restrictor
16 - Intake manifold change-over valve
17 - Air cleaner
18 - EVAP canister
19 - EVAP canister purge regulator valve
20 - 22 Not applicable
23 - Vacuum supply for solenoid valves
