Front Center Console, Removing and Installing

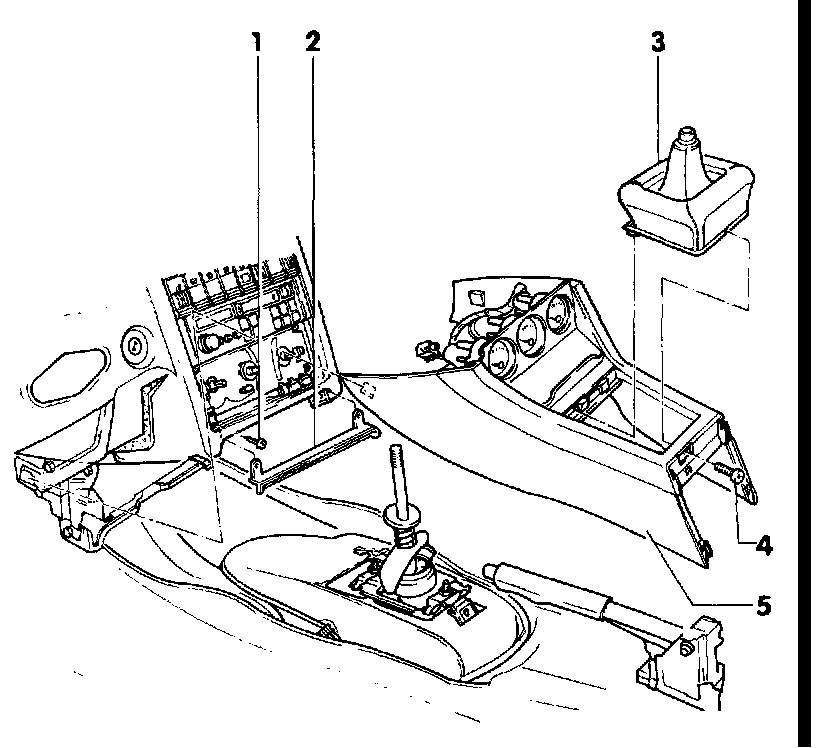

Front center console, removing and installing






1. Screws 2 Nm (18 in lb)
2. Filler piece
3. Shift lever boot
4. Screw
5. Center console

Removing:

Remove knobs for climate controls and remove trim plate
Remove operating unit on vehicles with automatic climate control
Remove screws -1-
Remove filler piece -2- downward
Remove shift lever knob
Remove screw -4- and remove shift lever boot upward
Pull center console -5- out of guides toward rear
Disconnect harness connectors
Install in reverse order of removal
