Antilock Brakes / Traction Control Systems: Locations

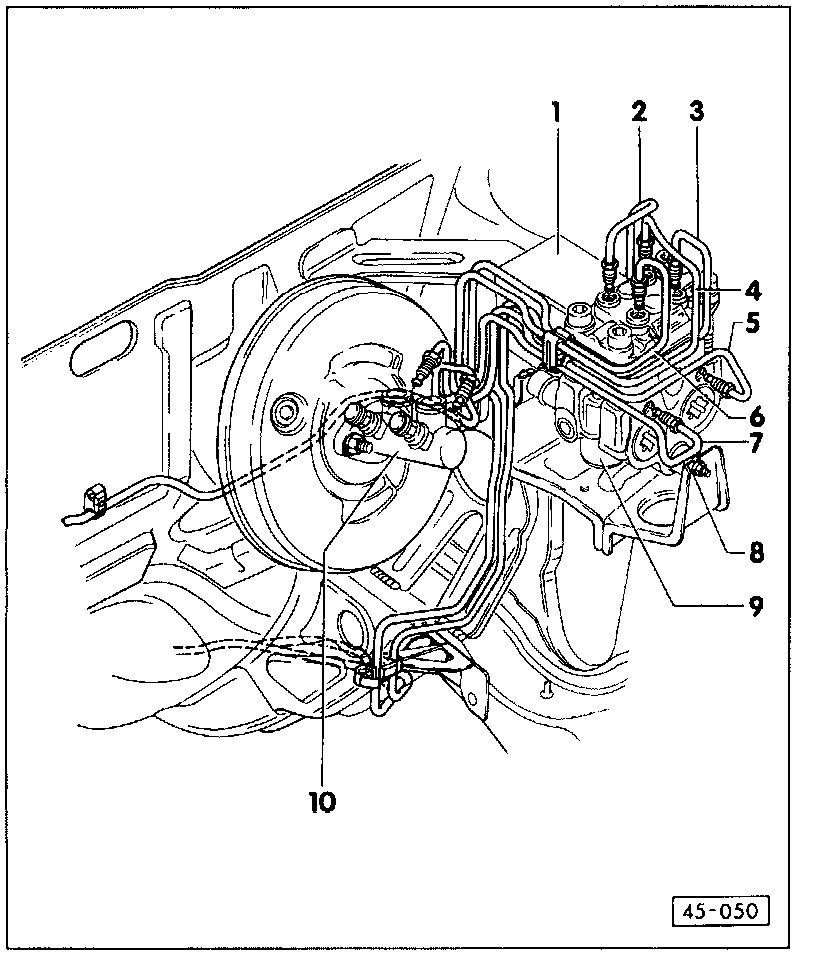

ABS Hydraulic Unit





1 Cover
• Access to relays

2 Brake line
• Hydraulic unit of left-front brake caliper
• Marked "VL" on hydraulic unit

3 Brake line
• Hydraulic unit to left-rear brake caliper
• Marked "HL" on hydraulic unit

4 Brake line
• Hydraulic unit to right-front brake caliper
• Marked "VR" on hydraulic unit

5 Brake line

6 Brake line
• Hydraulic unit to right rear brake caliper
• Marked "HR" on hydraulic unit

7 Brake line
• Brake master cylinder (proportioning valve circuit) to hydraulic unit

8 Hex nut
• 10 Nm (7 ft lb)
• Install hydraulic unit in bracket and secure

9 ABS hydraulic unit

10 Brake master cylinder
• With brake booster
