Auxiliary Instruments

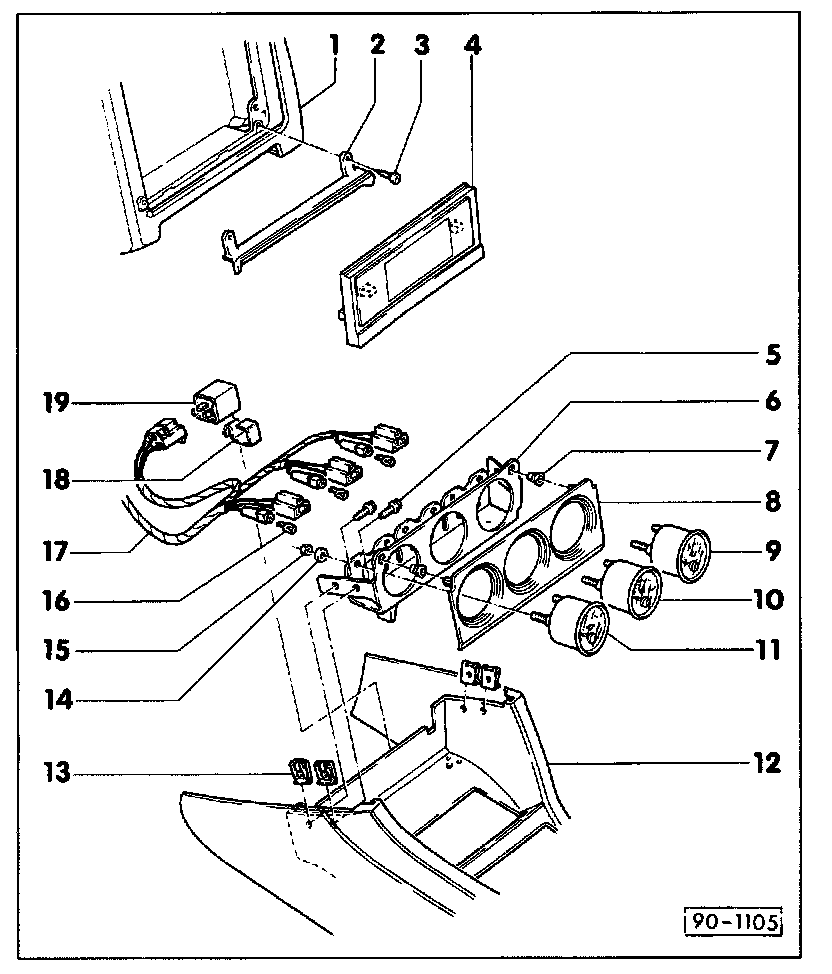

Auxiliary Instruments in Center Console





1 - Instrument panel (center)
2 - Bracket
3 - Screw
• Qty.: 2
• 2 Nm (18 in. lb)
• Remove trim plate for access to screws
4 - Trim plate
• Gently pry off with screwdriver
5 - Screw
• Qty.: 4
• 5 Nm (44 in. lb)
6 - Mounting bracket
7 - Grommet
• Qty.: 2
8 - Trim plate
9 - Oil temperature gauge -G9-
• Checking Testing and Inspection
• Removing:
- Remove center console
- Disconnect wires from gauge
- Twist and remove bulb holder
- Remove gauge retaining nuts -15-and remove gauge
10 - Oil pressure gauge -G11-
• Checking Testing and Inspection
• Removing:
- Remove center console
- Disconnect wires from gauge
- Twist and remove bulb holder
- Remove gauge retaining nuts -15- and remove gauge
11 - Voltmeter -G14-
• Checking Testing and Inspection
• Removing:
- Remove center console
- Disconnect wires from gauge
- Twist and remove bulb holder
- Remove gauge retaining nuts -15- and remove gauge
12 - Center console
13 - Speed nut
• Qty.: 4
14 - Washer
• Qty.: 6
15 - Nut
• Qty.: 6
16 - Bulbs -L24-, -125-, -L27-
• 12 V, 1.2 W
17 - Wiring harness
18 - Bracket
19 - Center console light booster -J166-
• Clipped onto front of center console with bracket
