Coolant Line/Hose: Service and Repair






LEGEND
1 Large Coolant Pipe
2 Bleed Screw
3 Engine Coolant Temperature (ECT) Sensor
4 Bolt
5 Small Coolant Pipe
6 Bolt
7 Electronic Engine Coolant Temperature (ECT) Thermal Switch
8 Bolt

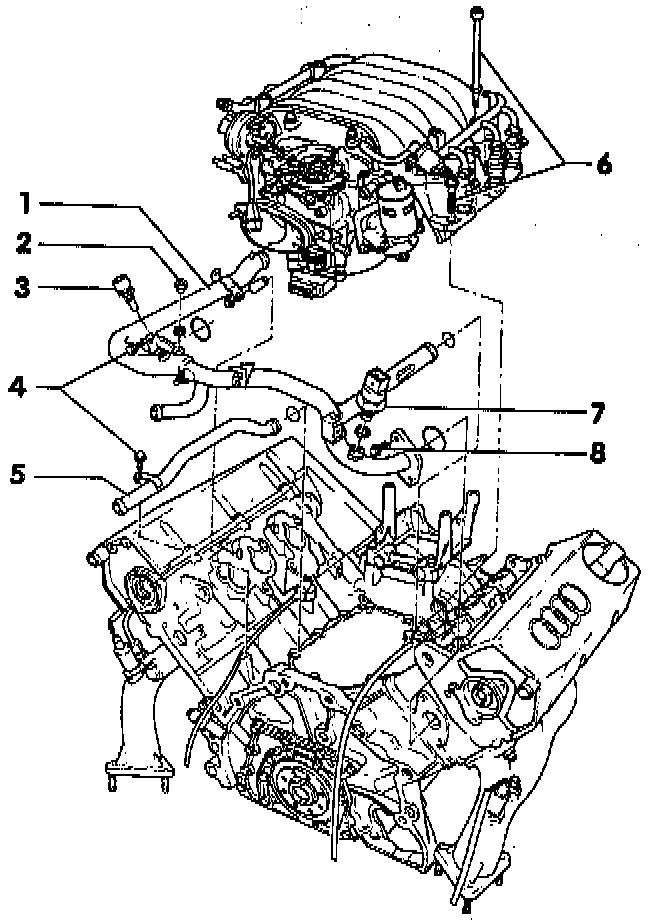

NOTE: During removal and installation procedures, refer to the component location illustration above and component notes below.

COMPONENT NOTES
Bleed Screw (2)
- Tighten to: 15 Nm (11 ft. lbs.).

ECT (3)
- Tighten to: 15 Nm (11 ft. lbs.).

Bolt (4)
- Tighten to: 10 Nm (7 ft. lbs.).

Bolt (6)
- Tighten to: 20 Nm (15 ft. lbs.).

Bolt (8)
- Tighten to: 20 Nm (15 ft. lbs.).
