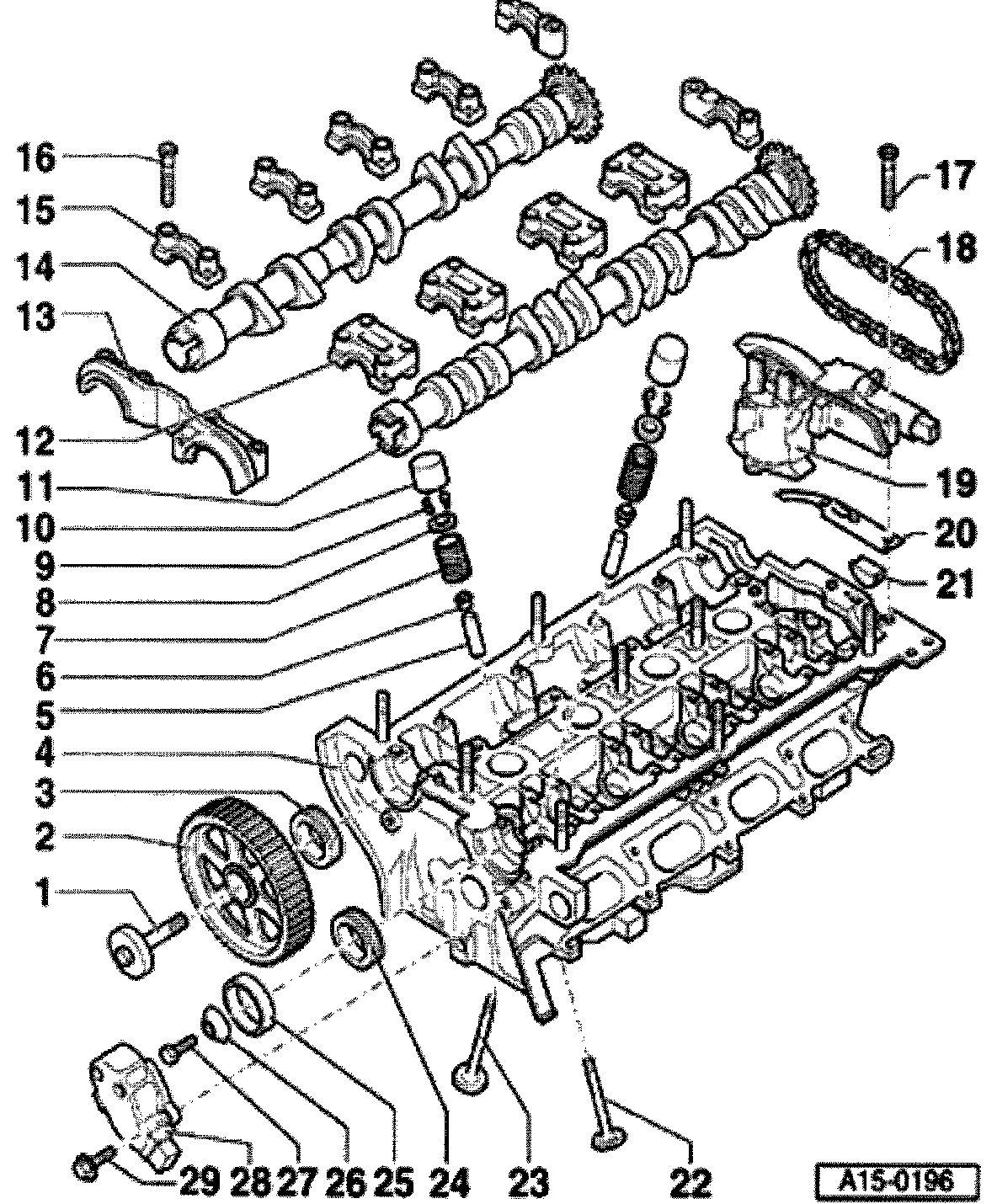

Camshaft, Engine



Valve Gear Servicing






1. 65 Nm
2. Camshaft sprocket
3. Sealing ring
4. Cylinder head
5. Valve guide
6. Valve stem seal
7. Valve springs
8. Valve spring plate
9. Valve keepers
10. Hydraulic valve lifter
11. Intake camshaft
12. Bearing cap for intake camshaft
13. Double bearing cap
14. Exhaust camshaft
15. Bearing cap for exhaust camshaft
16. 10 Nm
17. 10 Nm
18. Drive chain
19. Camshaft adjuster
20. Metal/rubber gasket
21. Gasket
22. Exhaust valve
23. Intake valve
24. Sealing ring
25. Rotor for Camshaft Position sensor
26. Washer
27. 25 Nm
28. Housing for Camshaft Position sensor -G40-
29. 10 Nm
