Transmission Position Sensor/Switch: Service and Repair


5 Speed A/T 01V

Multi-Function Transmission Range (TR) Switch -F125-, removing and installing
Removing
- Removing left transmission support.
- Unbolt Multi-Function Transmission Range (TR) Switch -F125- from transmission and pull off from shift rod.

Installing

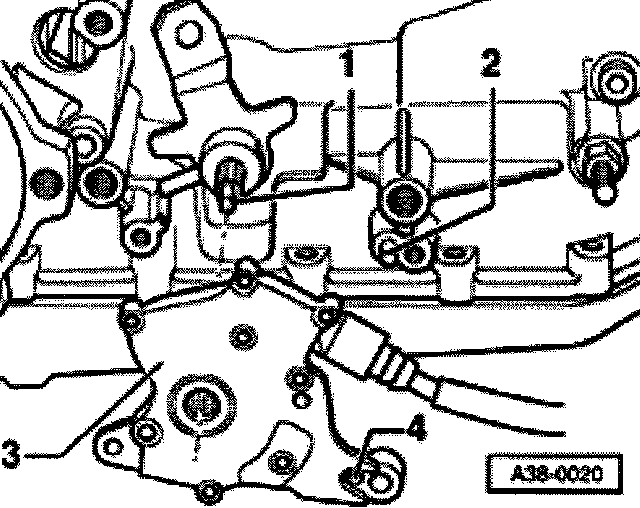

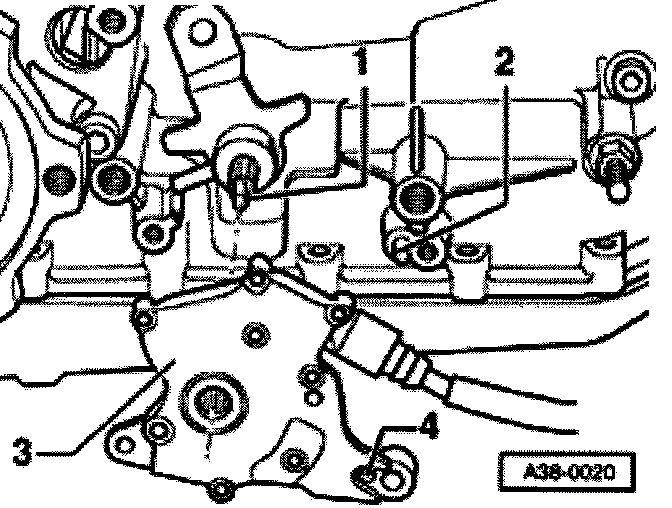

- Connect Multi-Function Transmission Range (TR) Switch -F125- on shift rod. Flap part at splines in switch -3- must align with flat part of shift rod -1-.

Note: Set Multi-Function Transmission Range (TR) Switch -F125- onto shift rod in centered manner. Do not cant and do not set with force. Risk of damage at switch terminals.





- Rotate switch until the alignment hole -4- at switch housing can be fitted on the alignment pin -2- at transmission housing.
- Installing left transmission support.

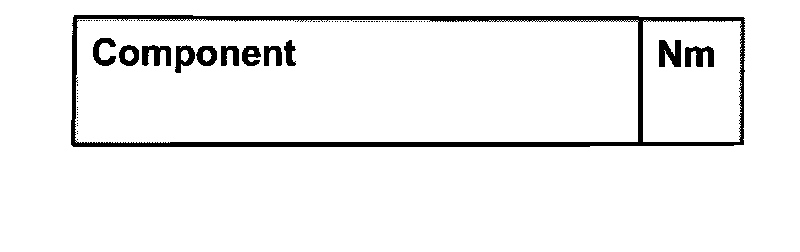

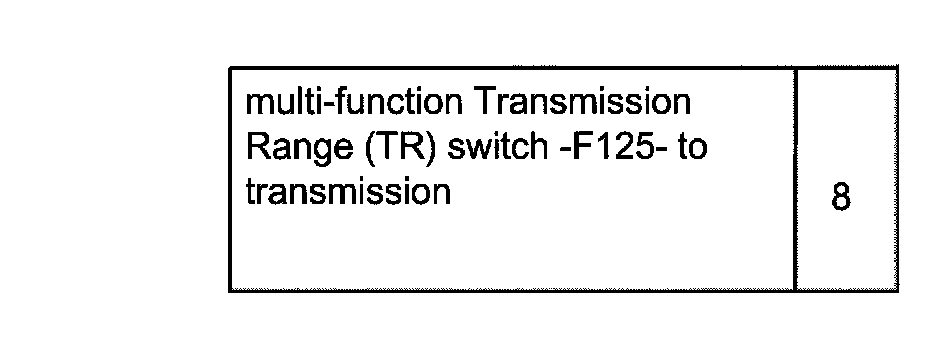

Tightening torques
